This sale is for the item only, it does not include the original box.

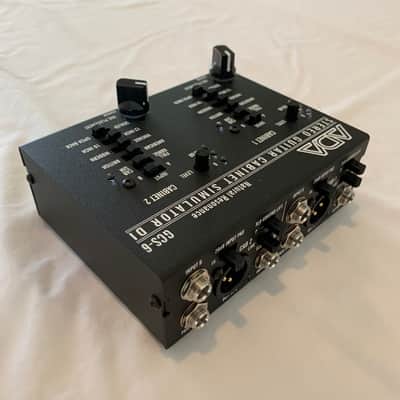

The New Stereo GCS-6 adds to ADA’s line of analog cabinet simulators and processed DI boxes, and features two independent cabinets, stereo HEADPHONE OUTPUTs and a stereo AUX IN for silent practice. The GCS-6 replaces the physical combination of speakers, cabinets and microphones used in live performance and recording with consistent and “real world” guitar cabinet simulation in a small steel enclosure suitable for pedal boards and DAWs. The GCS-6 features a unique set of unconventional filters tuned to the natural acoustic resonances and frequency responses of mic’d guitar speaker cabinets. The GCS-6 is inserted between the output of a preamplifier, power amp or pedal board and a recording interface or PA system. The GCS-6 includes two independent LEVEL controls with LED monitoring meters to optimize performance. The XLR OUTPUTs are compatible with phantom power, and a pair of 20dB INPUT PADs and PASS THRU jacks allow for direct connection to power amp outputs.
New features available in the GCS-6:

• Stereo In and Stereo Out
• Stereo Aux Input with Level control
• Stereo Cab Sim Level Control
• Stereo Headphone Output with 3.5mm and ¼” jacks
• Separate LED Level meters and Level controls for each Cabinet
• Input Select switch for each Cabinet
• ON/OFF Power switch

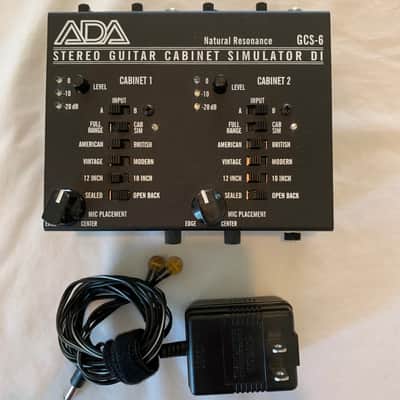

Independent Front panel controls for each cabinet:

• British or American Speaker
• 10 or 12-inch Speaker
• Vintage or Modern Cone and Magnet
• Open or Sealed Cabinet
• Mic Placement
• Input Select for each Cabinet
• Full-Range DI or Cab Sim

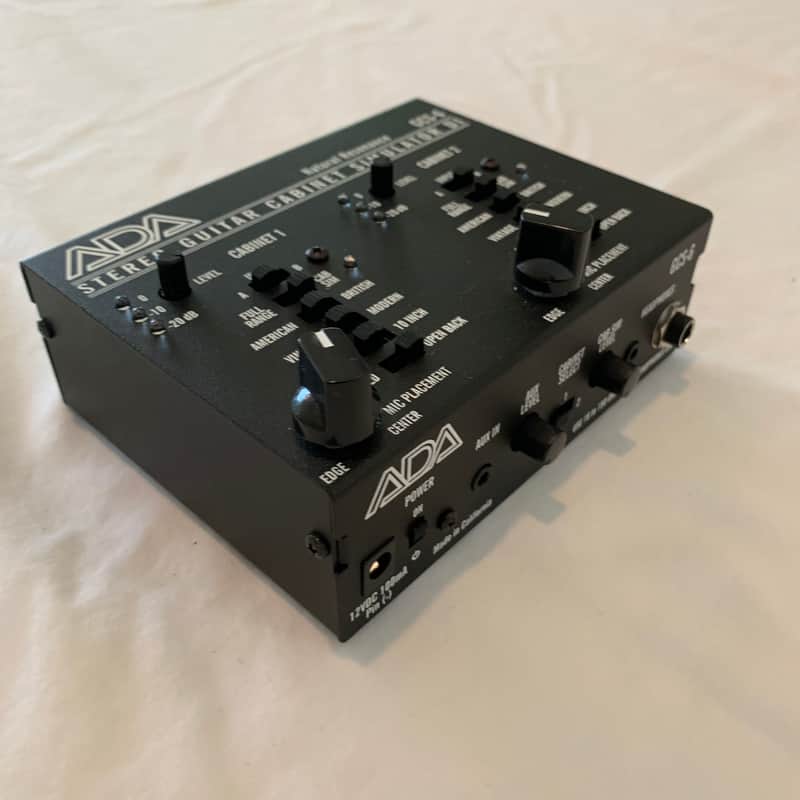

Rear panel controls:

• Stereo Aux In with Level control (Headphone Output)
• Cab Sim Level control (Headphone Output)
• Cabinet Select Switch (Cab 1(mono), Cab 2 (mono), Cab 1 + Cab 2 (stereo))
• ON/OFF Power switch

Jack panel controls:

• 20db Input Pad for connecting to power amps
• (2)  ¼” Pass Thru to speakers or load box.
• (2)  Balanced XLR Outputs that are phantom power compatible
• (2)  Unbalanced ¼” Phone Jack Outputs
• (2)  Line/Mic Level selector switch for Balanced XLR Outputs
• (2)  Pin 1 Ground Lift for Balanced XLR Outputs
