JBL CBT 70JE-1-WH White 500w Extension For CBT 70J-1 Line Array Speaker+(6) Mics

Package Includes:

• (1) JBL CBT 70JE-1-WH White 500w Extension For CBT 70J-1 Line Array Column Speaker
• (1) Rockville RWM-66 6-Mic Adjustable Frequency Wireless UHF Microphone System/Metal

What's in the box:

• JBL CBT 70JE-1 Extension for CBT J-1 Speaker (White)
• Coupler Plate
• Limited 5-Year Warranty on Drivers Parts and Labor
• Limited 2-Year Warranty on Cabinets

Description:

The White CBT 70JE-1 Extension for CBT 70J-1 Speaker by JBL Professional is purposely designed for use with the CBT 70J-1, in a tough fiberglass-reinforced ABS enclosure. The speaker contains four low frequency drivers and a crossover network. The 500 W power handling and high sensitivity delivers powerful low frequency output.

When connected to a CBT 70J-1 speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology, which results in pattern control consistency.

The CBT 70JE-1 attaches to the top of the CBT 70J-1, utilizing the included coupler plate, resulting in a well controlled progressive line array with asymmetrical vertical coverage. This coverage produces a higher concentration of sound with a tighter pattern projecting to the far areas of the listening space.

Features:

• Ideal for use in auditoriums, lecture halls, stadiums, theme parks, and more
• Extended bass response to 45 Hz
• Extended pattern control (to 400 Hz for +/- 20° control, to 200 Hz for substantial off-axis cancellation)
• Patent-pending Constant Beamwidth Technology, provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.

All About Your RWM-66:

How To Set Up Your RWM-66:

How To Set Up Your RWM-66 For Karaoke:

Controls, Inputs, and Outputs Explained on Your RWM-66:

How To Set Up Your RWM-66 to a Mixer:

How To Set Up Your RWM-66 to a Powered Speaker:

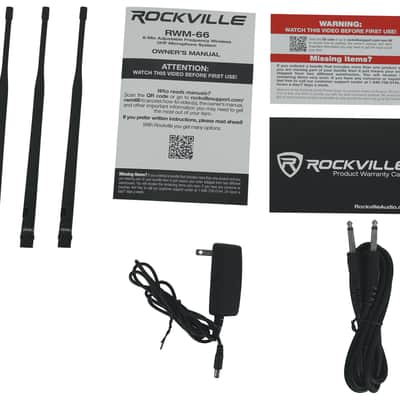

What's in the box:

• Metal Rack Mount Receiver with LCD display
• (6) Handheld Metal Microphones with digital display
• (3) Antennas
• (12) AA Batteries
• Mic Receiver
• 6 Foot ¼” to ¼” Audio Cable
• 5 Foot Power Adapter
• Owners Manual and Warranty Card

Features:

• Rockville RWM-66 6-Mic Adjustable Frequency Wireless UHF Microphone System
• 8 Adjustable Unique Frequencies on each microphone ensures interference free operation
• Easy frequency switching by simply hitting the button on the microphone

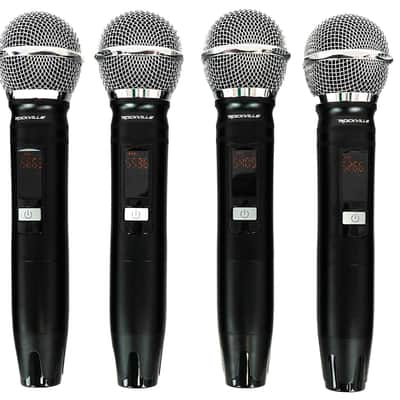

• (6) Metal handheld microphones with digital display
• Professional 19” metal rack mount receiver with LCD display
• Rotary knobs
• One button frequency switching allows you to hit the button on any of the 6 microphones and the channel will change on that microphone and auto-sync with the receiver
• The display on the microphone shows channel, frequency, battery life
• The display on the receiver shows RF signal strength, AF signal strength, frequency channel of each handheld mic
• Operating Range: 300´ – 400´(indoor), 250´ – 350´(outdoor)
• Each mic uses different channel groups so that you will not get interference from one microphone to the other (There are 48 total different channels on this system – 8 unique frequencies per mic)
• Ergonomic metal microphones are extremely high quality and have a nice weight and feel to them
• Individual XLR outputs for each microphone to send each microphone to their own mixer channel
• XLR and ¼” mix output to send all 6 mics to one mixer channel
• Mute function
• On/Off on each microphone
• Low power consumption for longer battery life
• Individual microphone volume control
• Cardioid pick-up pattern
• Type: Handheld dynamic
• Featuring a dual filter design to limit feedback and interference
• Frequency Range: 500MHz-599MHz
• Frequency Stability: ±0.005%
• Modulation Mode: UHF
• Frequency Response: 50Hz-20KHz(±3 dB)
• Dynamic Range: 96dB
• S/N: 92dB
• T.H.D: < 0.1%(1KHz)
• Delay: <3.0ms
• Transmitter Power: 10mW
• Receiver Sensitivity: -96dB
• Audio Output Jack: XLR balanced & 1/4" unbalanced
• Power Voltage: AC110V-240V 50/60Hz
• Operating Temperature: 14°F-122°F
• Mic Battery Operating Time: up to 10 hours
• Standard 1U rack mount receiver
• Rubber feet for tabletop use
• Dimension: 18.89" x 9.05" x 1.96"
• Weight: 7.73 lbs
