Luxman PD-277 Vintage Direct-Drive Turntable (1970s) - Rare Single-Owner CIB Matched Serial Double Box Time Capsule Bundle

Description:

Up for sale is an exceptionally rare collector's bundle featuring a premium vintage Luxman PD-277 Direct-Drive Automatic Turntable System, meticulously crafted in Japan. This true "time capsule" Complete-In-Box (CIB) assembly remains pristine and nested inside its original factory double boxes with perfectly matching serial numbers.

This luxury audiophile deck features a gorgeous, dark Rosewood plinth and comes from a single-owner collection where it was maintained in a smoke-free, pet-free, and climate-controlled home.

Provenance & Collector Notes

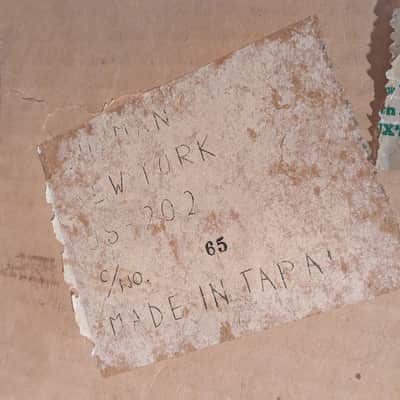

This unique package includes the original nested factory double boxes displaying matching serial numbers. The outer box retains its original manufacturer ink stamps documenting its shipment from the historic Lux Audio of America headquarters at 160 Dupont St. in Plainview, NY, directly to Connecticut Audio in Cheshire, CT. This exceptional provenance firmly dates this high-end Japanese deck to its initial 1979–1981 production cycle.

Operational & Cosmetic Condition

• Mechanical: Powered on and mechanically evaluated. The platter rotates steadily at both 33 and 45 RPM speeds (contact me if you'd like a link to a short video of the turntable testing). The front mirror-reflex strobe window illuminates clearly. The automatic start, repeat toggle, manual mode, and oil-dampened cueing all function as intended. Please note that bench testing was conducted without connection to an amplifier or speakers, leaving the internal audio signal path unverified.

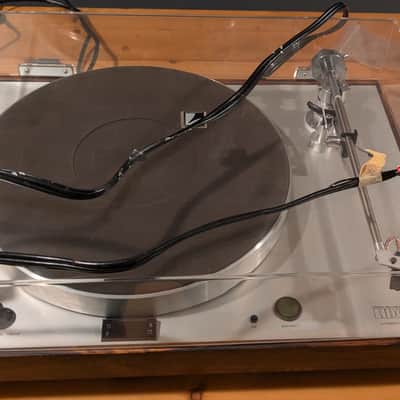

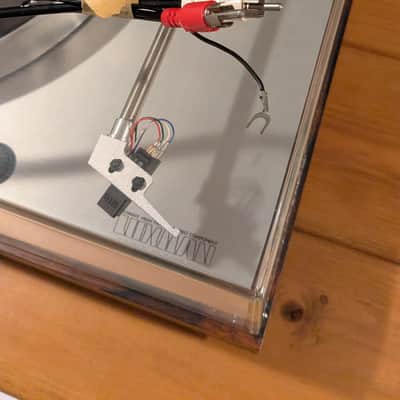

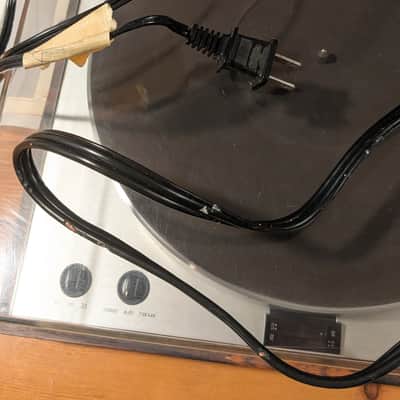

• Wiring & Cabling: The attached AC power cable is in structurally sound, functional condition. The hardwired RCA audio output signal cords show notable vintage wear. Distinct sections exhibit degraded outer insulation with exposed copper shielding that will require standard repair, taping, or replacement by the next owner. Red/white terminal plugs and the grounding spade wire remain physically intact.

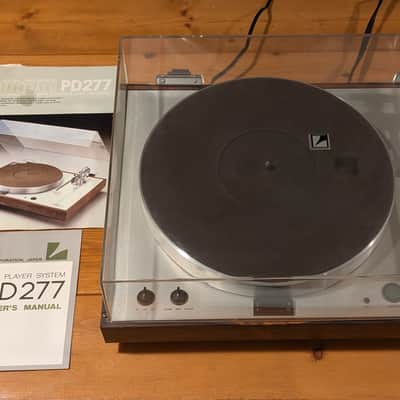

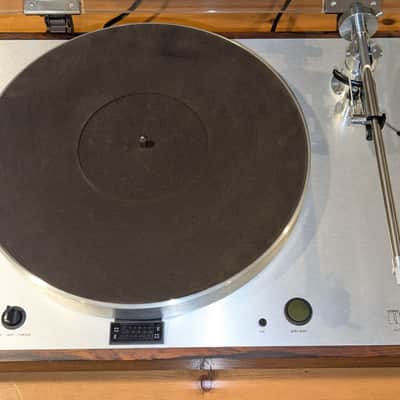

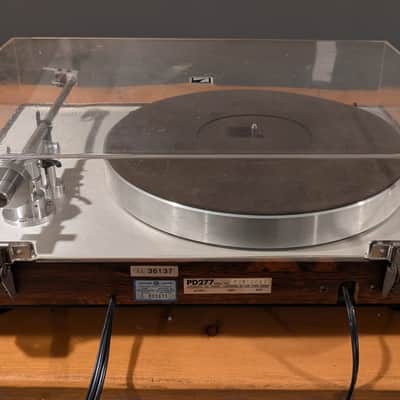

• Cosmetics: The straight arm tube, counterweight, anti-skate dial, and headshell appear excellent and intact. The control knobs, stunning Rosewood plinth veneer, and brushed aluminum faceplate surface are clean with crisp, legible text. The clear acrylic dust cover with semi-freestop hinges is present and attaches firmly, showing only minor, superficial surface scrapes to the right of the emblem (see images).

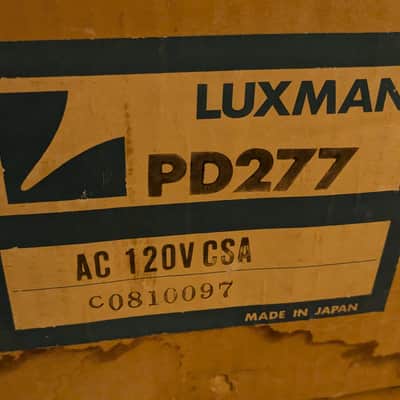

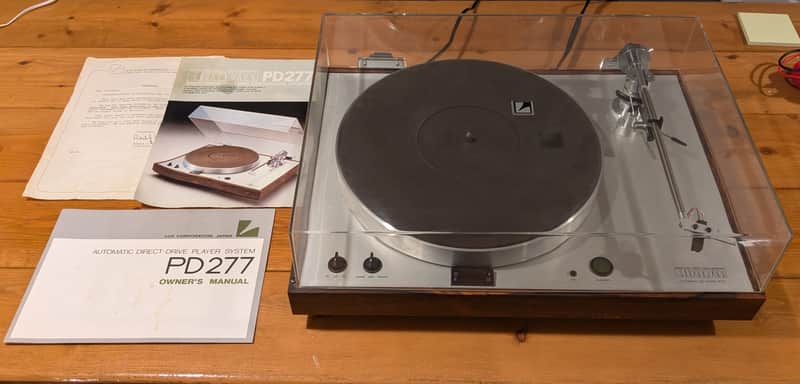

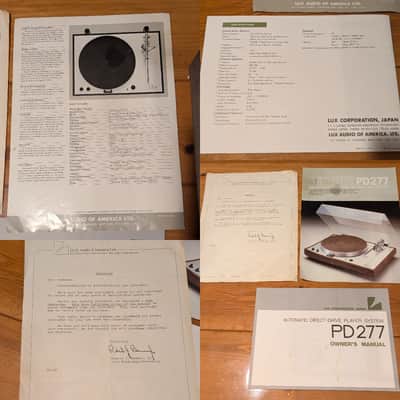

• Boxes & Paperwork: The included factory owner's manual, illustrated technical brochure, and Lux Audio of America welcome letter are structurally intact. The inner retail box is in excellent cosmetic condition with vibrant graphics. The outer shipping box shares the matching serial number stamp (C0810097) and shows expected age-appropriate wear with a detached top flap that will be safely included inside. The molded factory styrofoam inserts remain fully functional for structural support.

Official Specifications

• Brand/Model: Luxman PD-277 (Made in Japan)

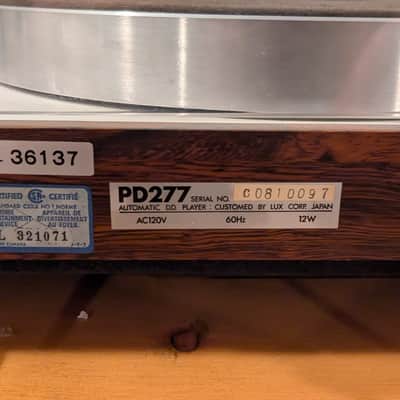

• Serial Number: C0810097 (Matches factory box labeling)
• System Type: Direct-Drive with DC-servo brushless/slotless motor
• Speeds & Adjustment: 33-1/3 RPM & 45 RPM with +/-4% adjustment range
• Platter: 30cm aluminium die-cast (1.8kg with integrated rubber mat)
• Performance: Wow & Flutter under 0.03% WRMS / S/N Ratio better than 60dB
• Tonearm: Straight Arm, static balance type, 240mm effective length
• Cartridge: Vintage Micro-Acoustics Dual Magnet phono cartridge (N-2700 replacement stylus profile)
• Automation: Auto-Start, Auto-Cut, and Auto-Repeat functions
• Net Weight: 10kg (22 lbs.) / 12kg (26.4 lbs.) gross in packaging

Terms of Sale, Shipping & Pickup

Due to the vintage nature, precise mechanical design, and identified RCA cable insulation wear on this item, it is sold as-is.

• Local Pickup: Welcomed and highly encouraged in Farmington, CT (06032).
• Secured Shipping: If shipping is required, the unit will be professionally packed with care taken to preserve the OEM box assembly. Fully insured transit will be applied.
