GREAT GENTLY USED DAVE SMITH P12 PROPHET 12 MODULE

USED RARELY IN A STUDIO SMOKE FREE SETTING.

NO BOX OR MANUALS

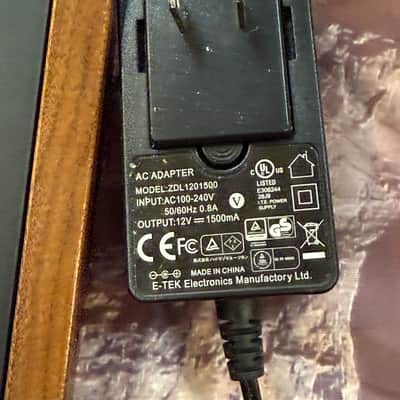

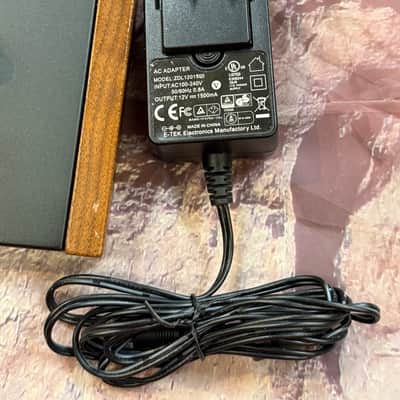

INCLUDES POWER SUPPLY

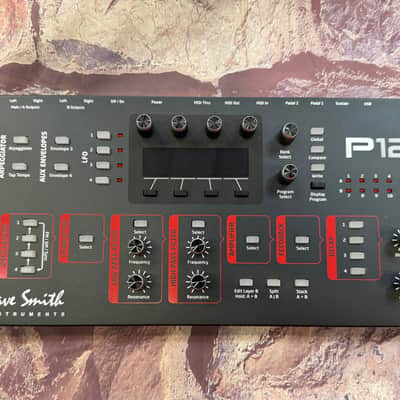

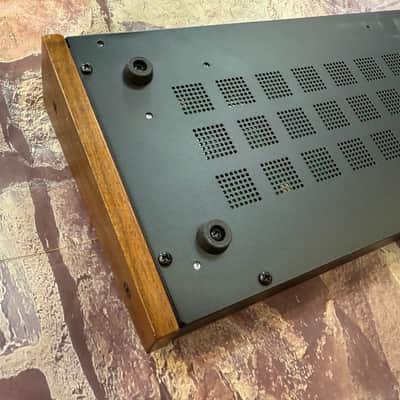

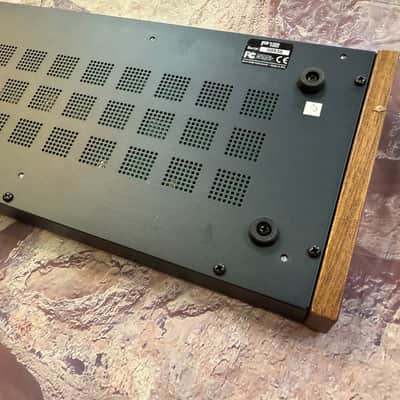

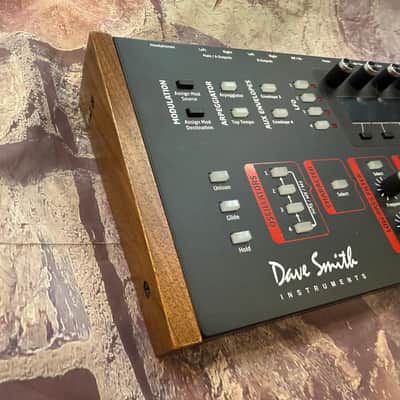

The Dave Smith Instruments Prophet 12 Module is a 12-voice, bi-timbral hybrid desktop synthesizer. It features a digital synthesis engine paired with an analog signal path, housed in a steel chassis with wood side panels that can also fit a 19-inch 4U

Sound Engine & Voice Architecture

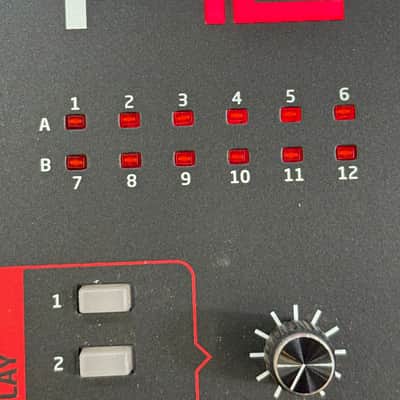

• Polyphony: 12 voices (bi-timbral with two layers per program).

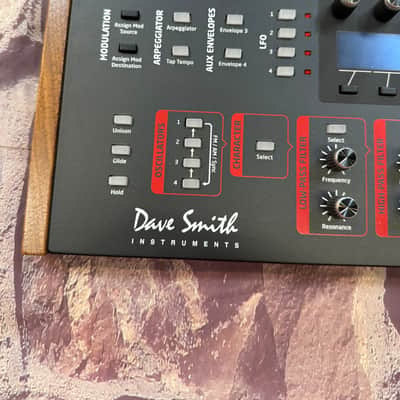

• Oscillators: Five DSP-based oscillators per voice, including four classic/complex waveshapes and one sine-wave sub-oscillator. Includes linear FM, AM, and sync.
• Character Effects: Five digital wave-shaping processes per voice/layer including Drive, Girth, Air, Hack, and Decimation.

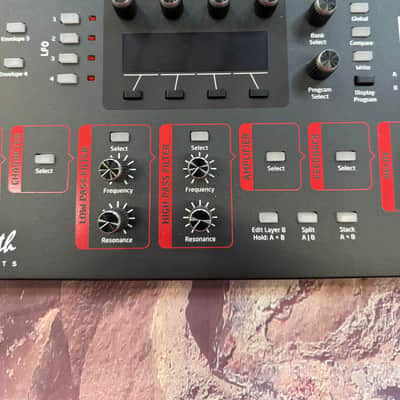

• Filters: Curtis resonant 2- or 4-pole analog low-pass filter and a resonant 2-pole analog high-pass filter per voice.
• VCAs: Assignable analog VCAs per voice.
• Modulation & Effects
• Envelopes: Four delay-adjustable ADSR envelopes per voice (Filter, VCA, and two Auxiliary envelopes).

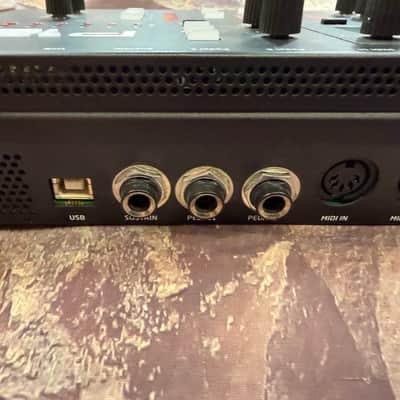

Connections & Physical Specs

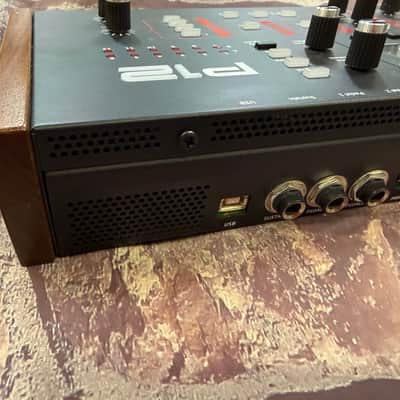

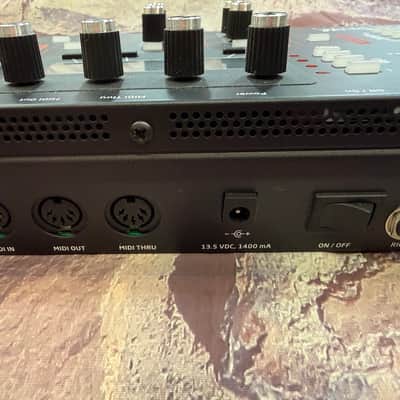

• MIDI: MIDI In, Out, Thru, and USB MIDI.

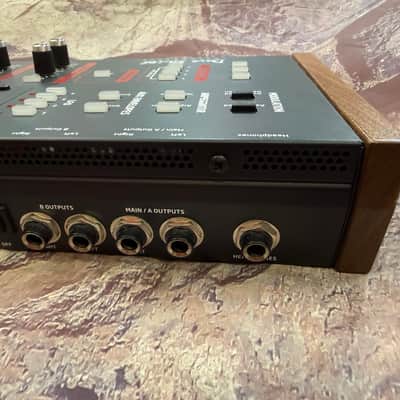

• Outputs: Main/A (stereo left/right 1/4" jacks) and B outputs (stereo left/right), plus headphone output.
• Pedals: Sustain pedal and two assignable pedal/control voltage inputs.
• Dimensions: 16.5" x 6.8" x 2.85" (41.9 x 17.3 x 7.2 cm).
• Weight: 4 lbs (2.2 kg). [1, 2, 3, 4, 5]

• LFOs: Four syncable LFOs with phase offset and slew per LFO.
• Feedback & Delay: Tuned feedback path plus a four-tap syncable multi-delay with feedback per voice.
• Modulation Matrix: 16x2 matrix featuring 26 sources and over 90 destinations.

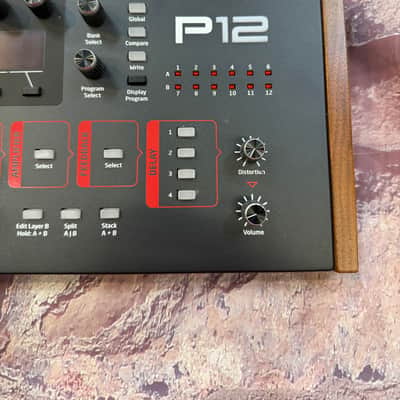

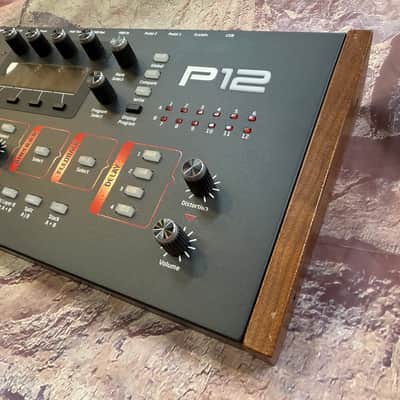

• Distortion: Independent programmable stereo analog distortion per layer. [1, 2]
