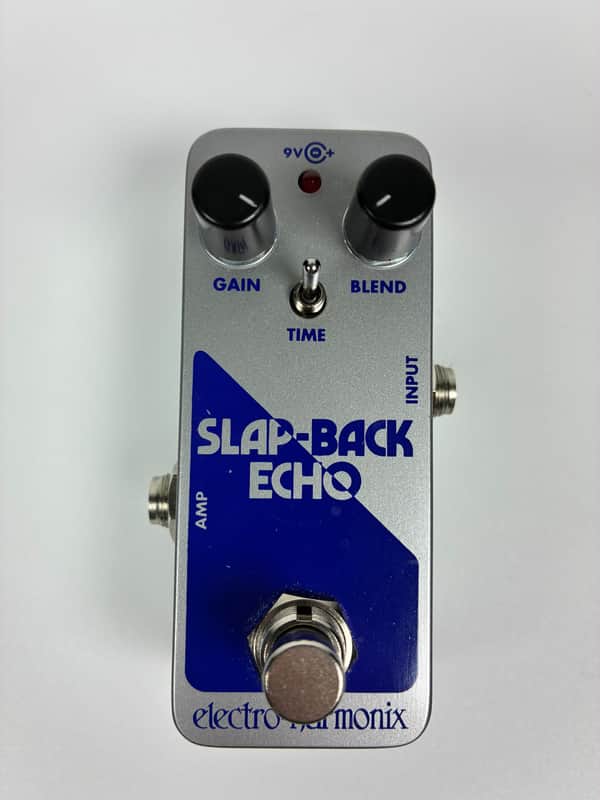

The Electro-Harmonix Slap-Back Echo reissue packs the classic 1978 analog delay sound into a compact Pico chassis. It uses bucket-brigade circuitry to deliver a single short echo with three fixed delay times selectable via a toggle switch. The Gain knob sets input level and provides up to +20 dB of boost at the output, while the Blend knob mixes the dry signal with the echo from fully dry to fully wet. This pedal is true bypass and draws 15 mA from a standard 9 V center-negative supply. Input impedance is 220 kΩ and output impedance is 7 kΩ. The three delay times are 45 ms, 65 ms, and 100 ms.

Specifications

• Dimensions: 3.65 in x 2 in
• Power requirements: 9 VDC center-negative, 15 mA
• Bypass type: true bypass
• Delay times: 45 ms, 65 ms, 100 ms (switch-selectable)
• Maximum boost: +20 dB

Condition

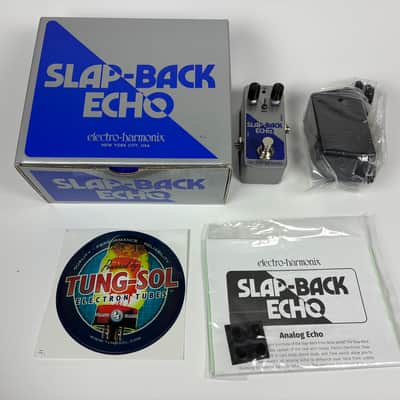

This item has been tested and is in good working condition. It comes with the original packaging. It has no Velcro on the back. No power supply included.
