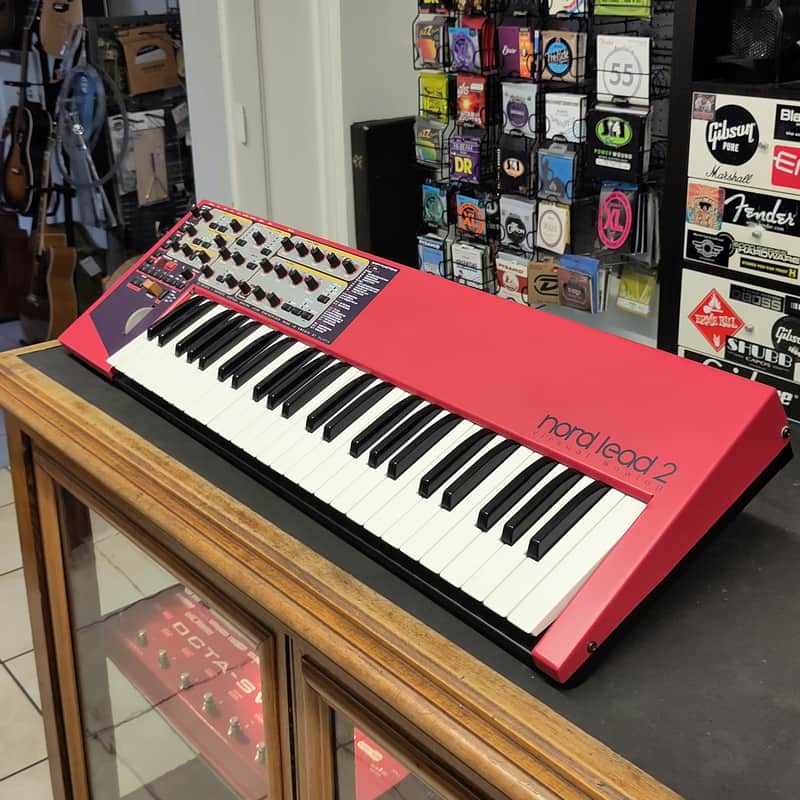

Clavia Nord Lead 2 90's

The Clavia Nord Lead 2 is the worthy successor to the famous Nord Lead. It uses the same synthesis technology and sounds just as good as Nord Lead, but adds some interesting new features. These include a ring modulator, oscillator 1 can synchronize with the white noise generator, enhanced LFO and arpeggiator waveforms and patterns, distortion in the muffler's punchier filter section and 4 individual outputs.

Synthesis : Subtractive, Virtual Analog

Oscillators

• Oscillators: 2
• Waveforms: Variable Pulse, Saw Up, Sinusoidal, Triangle, White Noise
• Modulation: Envelope, Keyboard, Knob, LFO, Modulation Wheel, Oscillator, Pedal, Pitch Bend, Portamento/Glide, Hard Sync, Soft Sync, Velocity

Envelopes

• Envelopes: 2
• Envelope parameters: Attack, Decay, Sustain, Release

Filters

• Filters: 1
• Types: 12 dB/octave (2-pole), 24 dB/octave (4-pole), Bandpass, Highpass, Lowpass, Notch, Resonance
• Modulation/Filter: Envelope, Keyboard, Knob, LFO, Modulation wheel, Pitch Bend, Portamento

LFO

• LFO: 2
• LFO parameters: Sample and Hold, Saw Up, Square, Triangle, Freerun

Polyphony & Tuning

• Polyphony: 16
• Multi-Timbral: 4
• Tuning: Standard
• Modes: Mono, Polyphonic, Split, Unison

Patches

• RAM patches: 396
• ROM patches: 594
• RAM multipatch: 100
• ROM multipatch: 300
• Recording: Internal, PCMCIA
• Editing: MIDI

Arpeggiator: LFO 2 can be called in arpeggio functions

Effects: Distortion

Percussion: 10 Analog drum kits

Connections

MIDI ports: IN, OUT

Audio outputs: 6.35mm (1/4") jack, Main stereo, Headphone stereo

Nbrs Audio Outputs: 6

Audio Info/Outputs: 4 mono or 2 stereo outputs

DAC/Bits: 16 bits

DAC/Frequency: 44.1 kHz

Delivery with Nord Soft Case 61
