UPADATE 12.07.2021 – 2 UNITS ARE READY FROM THE NEW PATCH, IN STOCK AND READY TO SHIP.

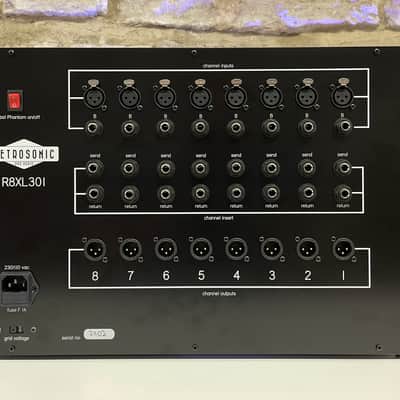

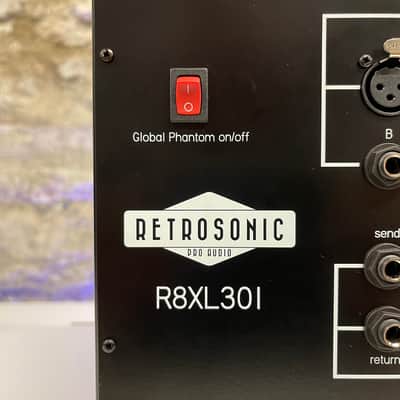

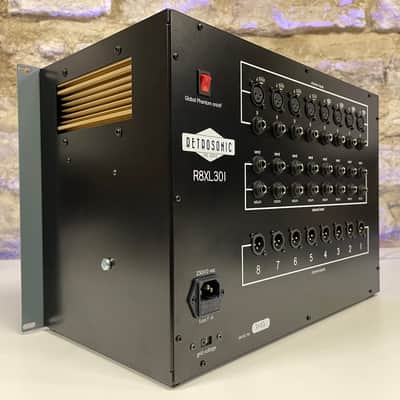

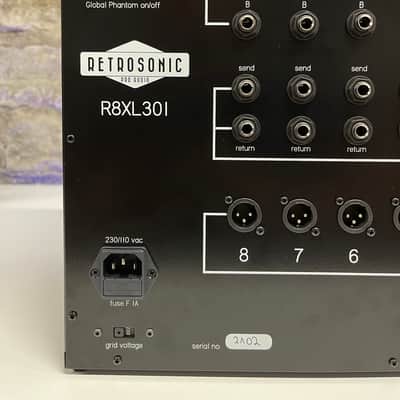

THIS PACTH FEATURES A/B SWITCH BETWEEN XLR AND TRS INPUTS, INSERTS AND A GLOBAL PHANTOM POWER SWITCH IN THE BACK PANEL.
CONTACT US FOR A SHIPPING QUOTE AND ANY ADDITIONAL INFORMATION!
Midas, the leader of the industry since the sixties, was producing this top of the line mixing desk from 1990 until 2000. With only 1000 pieces made, the XL3 quickly became the dream of every front of house engineer. Designed by engineers with decades of experience and built with the finest components, the XL3 delivers the most pristine and majestic sound out there. And the main reason for that, of course, is the famed channel strip!

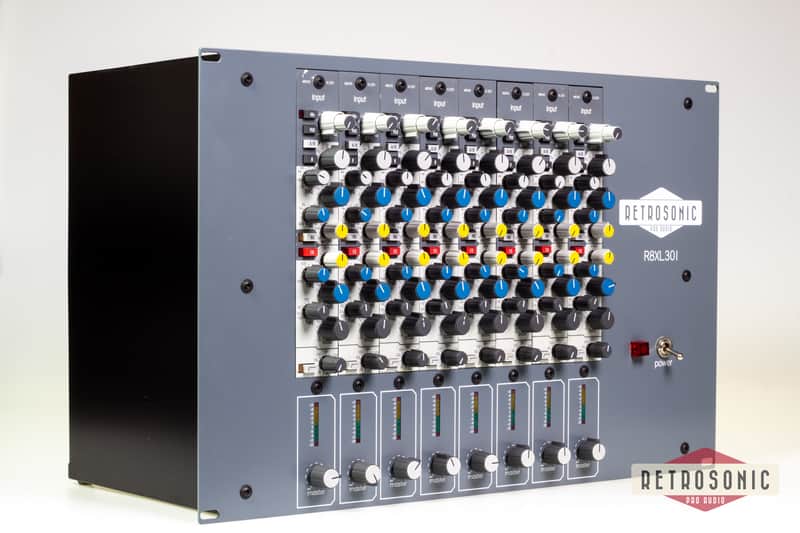

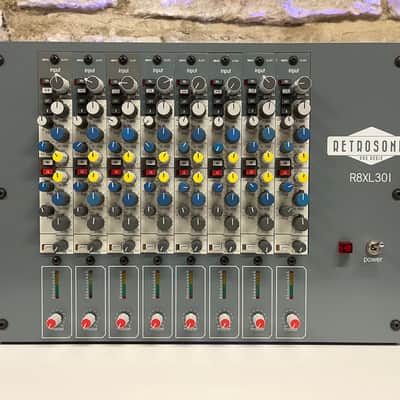

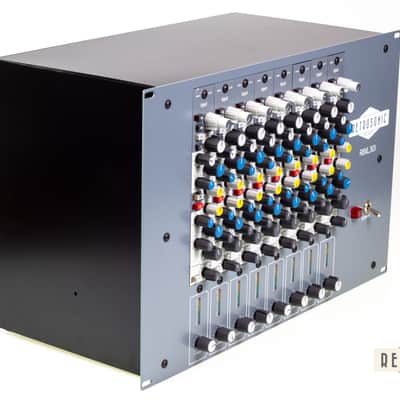

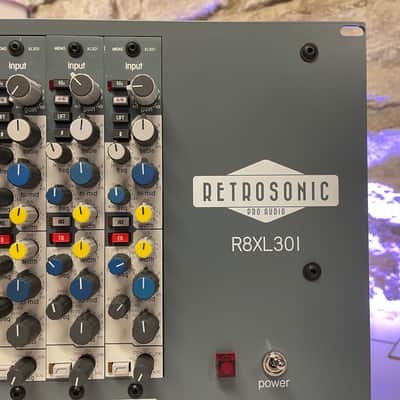

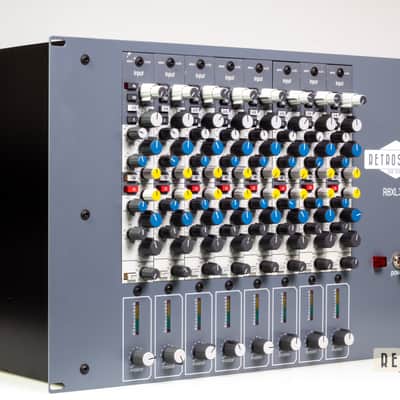

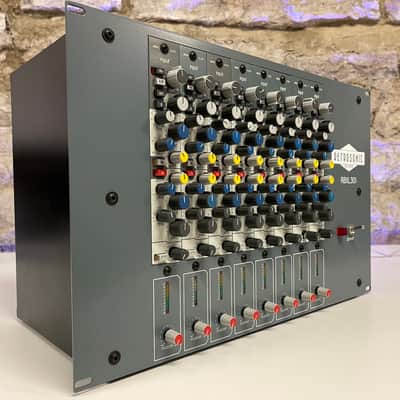

Thirty years later our brilliant techs has breathed a new life into the this legendary product. With R8XL301 we have taken 8 original XL3 channel strips and carefully repackaged them into a 7 unit rack with a built-in power supply.

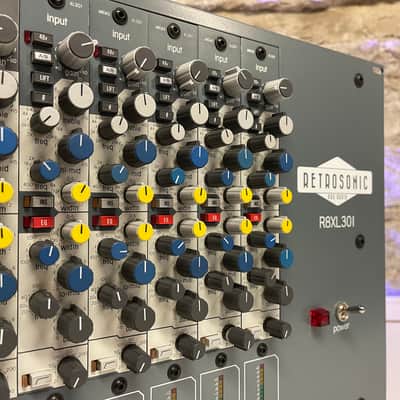

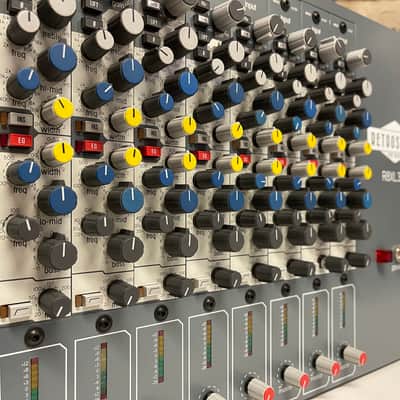

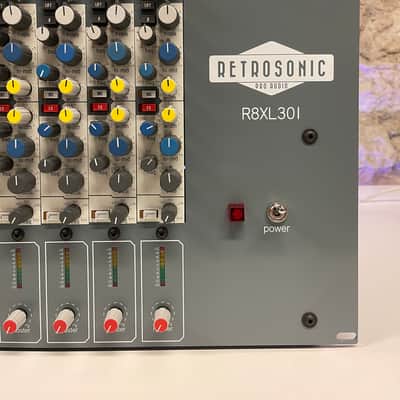

Now every sound engineer and producer has a chance to enjoy the unmatched quality of Midas preamps and EQ in their studio in a in a convenient 7 unit format. This unit consists of a preamplifier with 48v power supply and a pad, a 4 band parametric EQ, a high pass filter up to 400 Hz and a master output trim for each channel with an original LED VU.

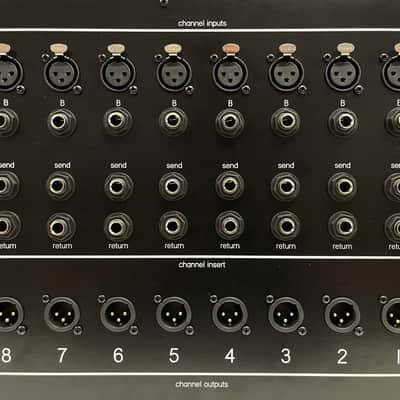

All units will have A/B switch instead of Ground Lift. A/B switches between the inputs of the channel. A - XLR and B - TRS. That enables to have dual connections at all time fitted in and switched between them.
PAD switches between Mic and Line level.
All the modules are re-capped and fixed, all the issues removed.
The power supply is linear. Toroid transformer -> Bridge rectifier -> LM317/LM337 adjustable regulation. Regulators are also tied together for safety, so if one power rail looses voltage, the second one follows. This is a very efficient and a good way to power up and power down cycles, removes bumps from audio and protects the IC-s. Phantom voltage is provided through LM317. All the regulator voltages are adjustable by trimpots.
Price shown in EU includes 20% VAT unless you have entered your valid EU VAT number to your Reverb account. VAT can be deducted if you have a company with a valid EU VAT number or if you're based outside of EU. Non-EU buyer pays import duty and tax as regulated by your local customs.
We ship worldwide. Contact us for a quote for shipping or any additional information.
THIS PACTH FEATURES A/B SWITCH BETWEEN XLR AND TRS INPUTS, INSERTS AND A GLOBAL PHANTOM POWER SWITCH IN THE BACK PANEL.
CONTACT US FOR A SHIPPING QUOTE AND ANY ADDITIONAL INFORMATION!
Midas, the leader of the industry since the sixties, was producing this top of the line mixing desk from 1990 until 2000. With only 1000 pieces made, the XL3 quickly became the dream of every front of house engineer. Designed by engineers with decades of experience and built with the finest components, the XL3 delivers the most pristine and majestic sound out there. And the main reason for that, of course, is the famed channel strip!
Thirty years later our brilliant techs has breathed a new life into the this legendary product. With R8XL301 we have taken 8 original XL3 channel strips and carefully repackaged them into a 7 unit rack with a built-in power supply.
Now every sound engineer and producer has a chance to enjoy the unmatched quality of Midas preamps and EQ in their studio in a in a convenient 7 unit format. This unit consists of a preamplifier with 48v power supply and a pad, a 4 band parametric EQ, a high pass filter up to 400 Hz and a master output trim for each channel with an original LED VU.
All units will have A/B switch instead of Ground Lift. A/B switches between the inputs of the channel. A - XLR and B - TRS. That enables to have dual connections at all time fitted in and switched between them.
PAD switches between Mic and Line level.
All the modules are re-capped and fixed, all the issues removed.
The power supply is linear. Toroid transformer -> Bridge rectifier -> LM317/LM337 adjustable regulation. Regulators are also tied together for safety, so if one power rail looses voltage, the second one follows. This is a very efficient and a good way to power up and power down cycles, removes bumps from audio and protects the IC-s. Phantom voltage is provided through LM317. All the regulator voltages are adjustable by trimpots.
Price shown in EU includes 20% VAT unless you have entered your valid EU VAT number to your Reverb account. VAT can be deducted if you have a company with a valid EU VAT number or if you're based outside of EU. Non-EU buyer pays import duty and tax as regulated by your local customs.
We ship worldwide. Contact us for a quote for shipping or any additional information.
