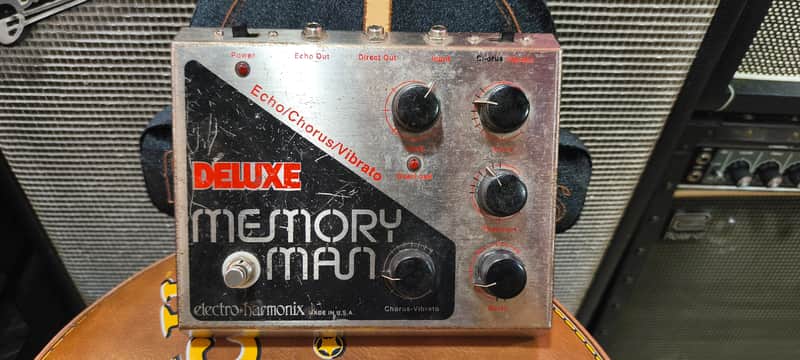

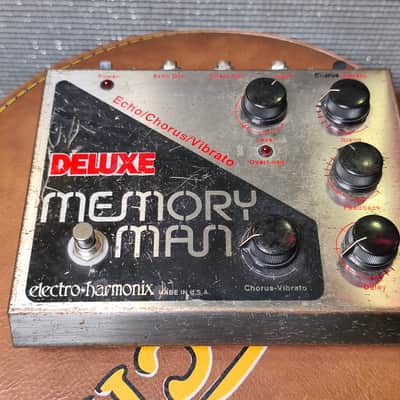

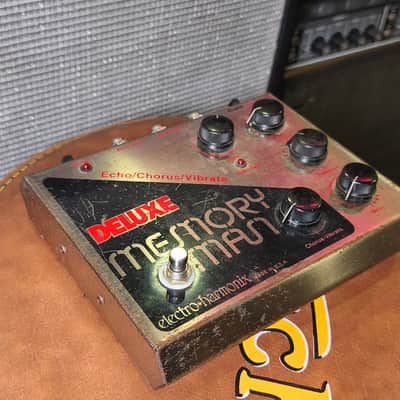

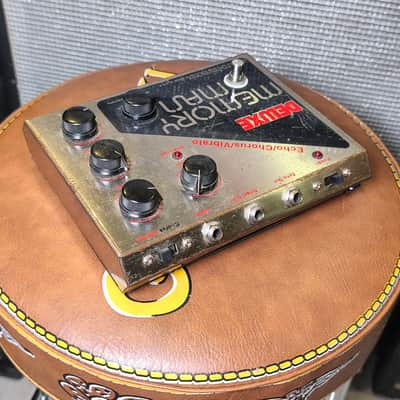

The Electro-Harmonix Deluxe Memory Man is a legendary, fully analog delay pedal that features integrated chorus and vibrato modulation.

Technical specifications for the core XO Series / classic reissue model:

Pedal Type: Analog Delay, Chorus, and Vibrato

Circuitry: 100% Analog Bucket-Brigade (BBD)

Max Delay Time: 550 milliseconds

Bypass Mode: True Bypass

Audio Channels: Mono Input

Inputs: 1 x 1/4" Instrument jack

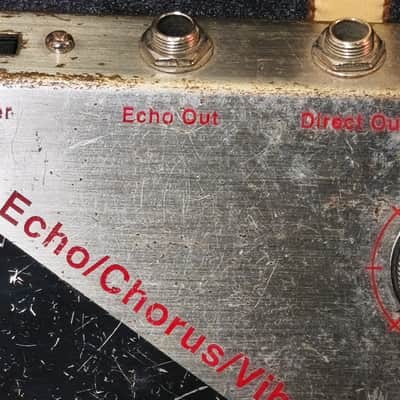

Outputs: 2 x 1/4" jacks (1 x Effect Out, 1 x Direct/Dry Out)

Power Requirement: 24V DC (Center Negative)

Current Draw: 100 mA

Power Supply: Included (24VDC-100 power adapter)

Enclosure Size: XO Series Big Size

Weight: 2 lbs (approx. 0.9 kg)

Dimensions:

Width: 5.75 inches (146 mm)

Depth: 4.75 inches (121 mm)

Height: 2.50 inches (64 mm)

Onboard Controls & Indicators

Blend Knob: Mixes your dry instrument signal with the delayed wet signal.

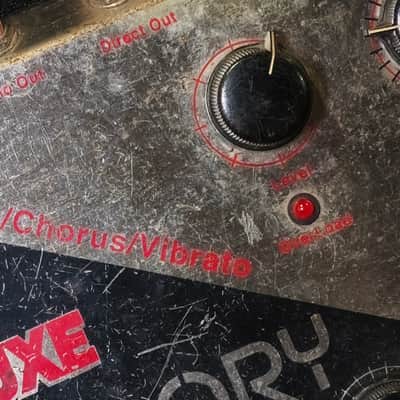

Level Knob: Adjusts input gain and allows managing signal strength to hit the unity gain sweet spot.

Feedback Knob: Regulates the number of delay repeats; causes musical self-oscillation at maximum settings.

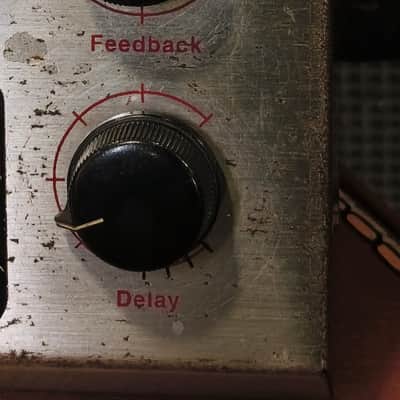

Delay Knob: Sets the precise time between the direct signal and repeats.

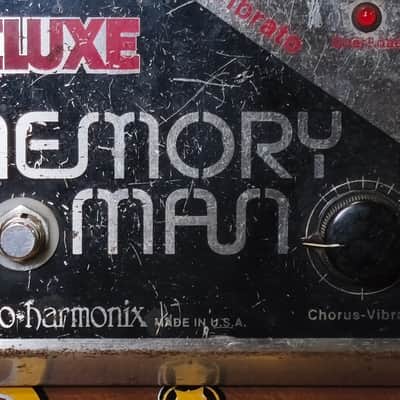

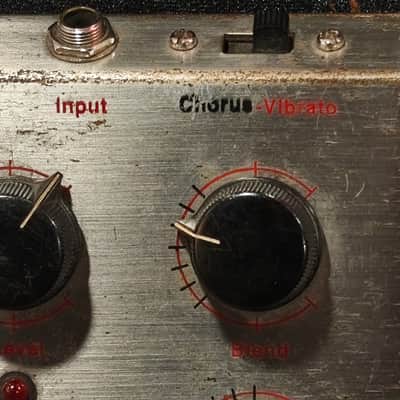

Chorus / Vibrato Toggle Switch: Selects the style of pitch modulation applied to the echo tails.

Depth Knob: Adjusts the overall intensity of the selected modulation effect.

Overload LED: Visual warning indicator that illuminates if the incoming audio signal is clipping.

Status LED: Indicates whether the pedal effect is active or bypassed.
