Nova Edition - not to be confused with the standard SE-1X model (see below), with SE-3X OS Eprom installed!

Absolutely incredible synth! Seriously rich sounding - does creamy leads and thick phat thumping bass!
Based on the Moog Minimoog. Patch memory, 3 VCOs, 3 LFOs, 4 EGs, 2 VCFs: Moog-style ladder 24db & Oberheim-style 12db filters, ring mod, noise, sync, glide, PWM, fuzz/overdrive switch for saturated distortion, external in, MIDI in/out/thru, 3-voice paraphony.

• Nova Edition (see features below)
• Comes with SE-3X Operating System firmware chip upgrade installed (see features below)
• Fully working
• Internal Battery changed recently
• Power lead included

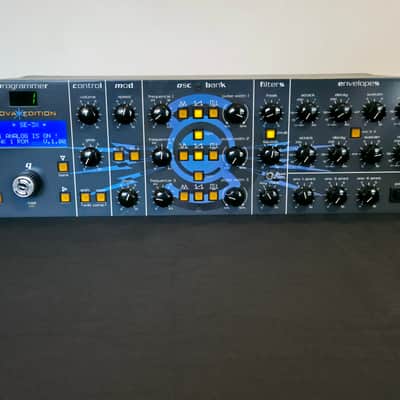

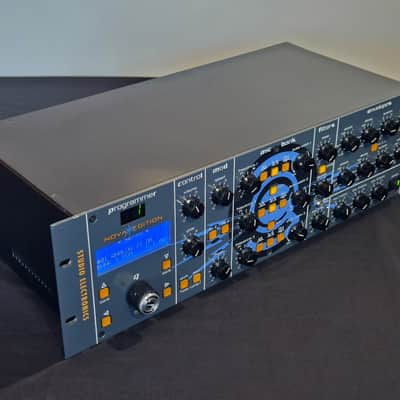

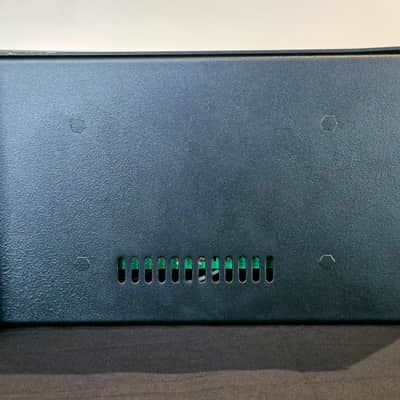

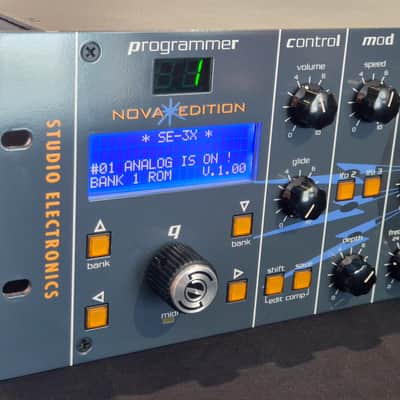

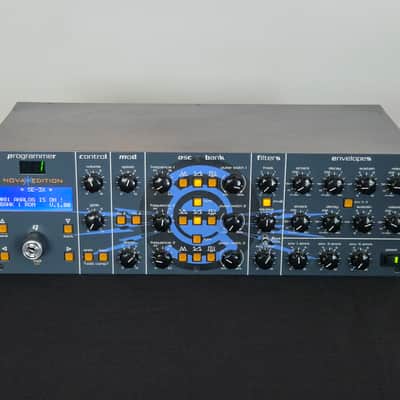

The front panel (that you see when it's in a rack) is in excellent condition as pictured. The unit has some scratches on the top/bottom but aren't seen when racked.

(From Studio Electronics website):

NOVA EDITION:

- The second VCO now boasts a silky "ARP-ish" sine wave which replaces the more industrial strength triangle,
- A switchable "Fuzz" circuit for amp overdrive and saturation,
- Snappier envelopes,
- Discrete filters with an expanded frequency range,
- Seven banks of S.E. sound design which demand satisfaction: four legendary SE-1X factory banks; three designer sets: the techno-focused Scroggins Synquence, and brand new Infared and Diademer––693 presets in total! The last RAM bank (bank 8) is on you. (Banks 5-8 can be overwritten)

FEATURES added with SE-3X OS EPROM:

- Paraphonic Mode for easy and electric '3X chords and colors.
- Front Panel control for Oscillator 2 & 3 Fine Tune.
- Front Panel control for Oscillator Levels.
- LFO Gate from our BOOMSTAR / MIDIMINI V30.
- LFO Gate Tempo Hold: rate stays steady during program change.
- OMEGA / SE-02 Envelope routines + the original linear & magical quasi-exponential ENVs.
- Exponential Glide routine from the OMEGA and '1X Linear Glide.
- New Front Panel Screen Jumps & Shortcuts.
- Last Patch Used recall on Power Recycle.

GENERAL SPECIFICATIONS:

Voices: One
Audio Outputs: One
External Inputs: One
Interface: 1 rotary encoder, 24 knobs, 21 illuminated switches

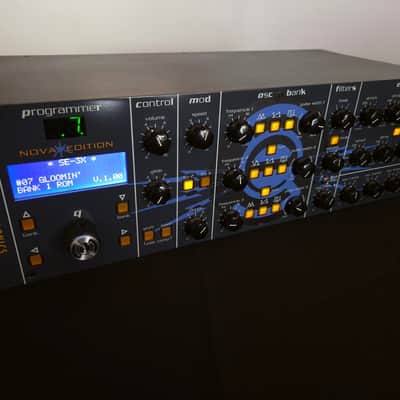

Display: 20 x 4 blue backlit liquid crystal
Memory: 8 banks of 99: 396 patches in ROM, 396 in RAM
Presets: 4 factory banks of 99 in ROM, 3 designer sets of 99 in RAM
Weight: 10 lbs
Dimensions: 3 rack spaces, 8 inches deep

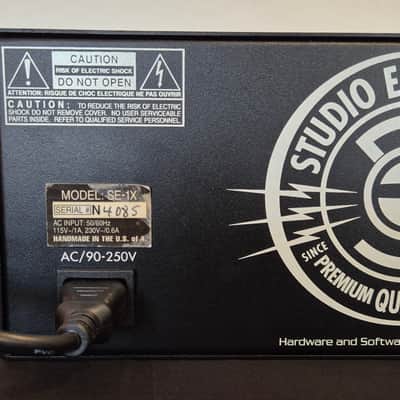

Power: 90 - 250 volts AC auto switching

VOICE ARCHITECTURE

VCOs:

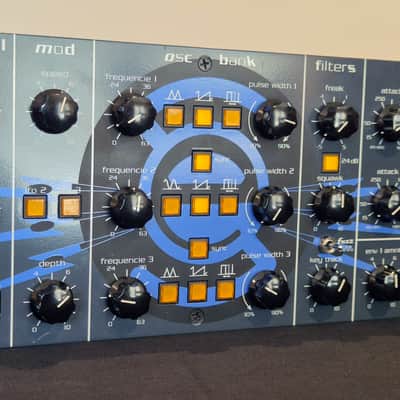

Three voltage controlled discrete analog oscillators. Osc 1 waveforms: triangle, sawtooth and variable width square; Osc 2 waveforms: sine, sawtooth and variable width square; Osc 3 waveforms: triangle, sawtooth and variable width square. All waveforms output simultaneously. Osc 1 syncs to Osc 2 and 3.

VCFs:
Two voltage controlled discrete analog filters: 24db (classic Moog), 12db (classic Oberheim). 12db filter incorporates low pass and band pass modes. Filter frequency range expanded by a whole tone.

Envelopes:

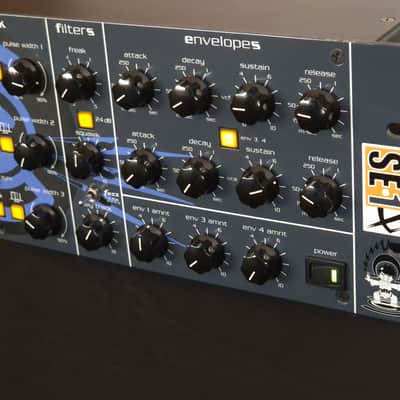

Four multiple stage envelope generators, attack, decay, sustain and release with inverting and multiple triggering. Envelope 1 fixed to filter frequency. Envelope 2 fixed to amplifier level. Envelopes 3 and 4 are assignable. ADSR speed increased from standard SE-1X.

LFOs:
Three low frequency oscillators, triangle, sawtooth, reverse sawtooth, square, noise and random waveforms. One destination and amount for each LFO with key trigger, phase and midi sync.

Glide:
Glide and auto glide, linear or exponential.

Fuzz:
Switchable fixed value hardware amplifier overdrive for saturated distortion.

Presets:
4 factory banks, Scroggins Synquence, Infared and Daidemer.

Additional Features:
Noise generator, hardware ring modulation, external audio input (requires midi trigger to open gate).

Modulation Destinations:
LFOs 1, 2 and 3: VCOs 1, 2 and 3 frequency; VCOs 1, 2 and 3 mix level; VCOs 1, 2 and 3 pulse width; ring mod mix level; noise mix level; VCF resonance; VCF frequency and volume. Envelopes 3 and 4: VCOs 1, 2 and 3 frequency; VCOs 1, 2 and 3 mix level; VCOs 1, 2 and 3 pulse width; ring mod mix level; noise mix level; LFO 1, 2 and 3 rate and depth and VCF resonance.

MIDI Controllers:
Dynamics, modwheel, pressure and breath control: destinations and amounts include all LFO and envelope 3 destinations; bender: pitch and filter frequency; receives program change, bank select, glide on/off, glide time and volume. Fixed continuous controller assignments for all key front panel controls.

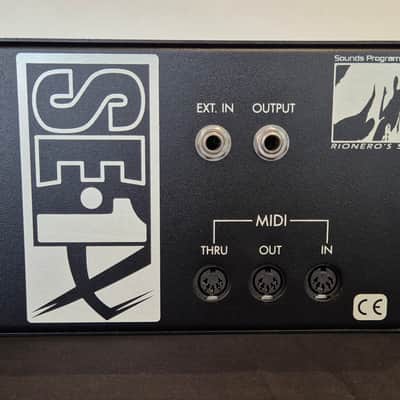

MIDI Specifications:
In, out and thru.
