With gig-ready DSP presets and 1500 watts of Class D power pushing a 12" woofer in a compact wood cabinet, the EV EKX-12P delivers clean, room-filling sound.

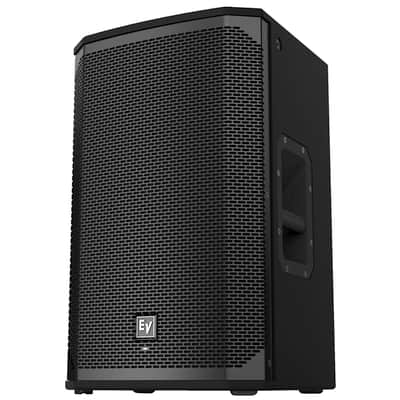

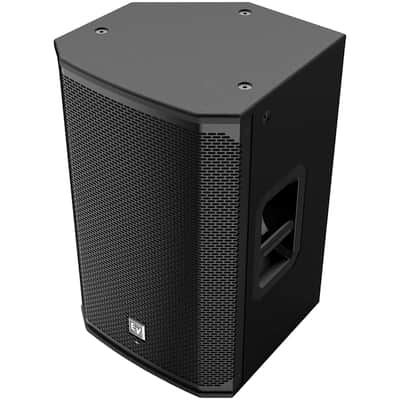

Electro-Voice EKX-12P Powered Speaker
The Electro-Voice EKX-12P powered speaker is part of EV's EKX loudspeaker series, which combines legendary EV sound quality and reliability -- all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

EV-engineered components, Signal Synchronized Transducers(TM) waveguide design, and Class D amplifiers (up to 1500 W) coupled with QuickSmartDSP all work together to provide precise coverage and superior sound quality at high SPLs. EV's award-winning industrial design -- with robust wood enclosures and durable EVCoat finish -- ensures that EKX speakers look as great as they sound.

Features:
- QuickSmartDSP features best-in-class processing, EV's signature single-knob user interface, and intuitive menu navigation via LCD. Easy setup via four presets(Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
- High-efficiency 1500 W Class-D power amplifier delivers up to 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV (12-inch EVS-12M woofer and 1-inch DH-1M HF titanium compression driver).
- Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors
- EV-patented Signal Synchronized Transducers(TM) (SST) waveguide design provides precise and consistent coverage.
- Ideal for portable and installed applications. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. Eight M10 threaded mounting points, aluminum pole-mounts, and all-metal handles.

Specs:
- Connector Type: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
- Coverage (Nominal -6 dB) H: 90 *
- Coverage (Nominal -6 dB) V: 60 *
- Crossover Frequency: 1.7 k Hz
- Enclosure Material: 15 mm, plywood with EVCoat
- Frequency Response (-10 dB): 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.
- Frequency Response (-3 dB): 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.
- Grill: 18 AWG steel with powder coat
- HF Transducer: DH-1M 1-inch titanium compression driver
- LF Transducer: EVS-12M 300 mm (12 in)
- Maximum SPL: 132 dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
- Power Consumption: 1.8 A Current rating is 1/8 power
- Power Rating: 1500 W
- Shipping Weight: 22.9 kg (50.49 lbs)
- Mounting/Suspension: (8) M10 threaded mounting points
- Height: 14RU 607 mm (23.9")
- Width: 375 mm (14.76")
- Depth: 356 mm (14.02")
- Weight Net: 18.8 kg (41.45 lbs)
