2-Channel Mono / Stereo Compressor / Limiter

• Fully discreet class A circuit
• Three Carnhill / St. Ives transformers per channel
• Exact adjustment of the compressor characteristics / response from channel to channel thanks to a unique diode bridge circuit
• True bypass per channel
• Line input impedance: 10 kOhm, transformer balanced
• Output impedance: <75 ohms, transformer balanced
• Frequency range: 20 to 20000 Hz

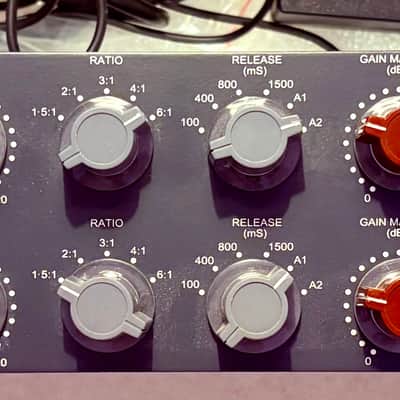

• Threshold: -20 to +20 dBu (compressor), 0 to +20 dB (limiter)
• Ratio: 1.5: 1 to 6: 1 (compressor)
• Attack: Fast / Normal (compressor, limiter)
• Release: 100 ms to 1,500 ms, 2x depending on the auto program (compressor)
• Release: 50 ms to 800 ms, 2 x auto-program dependent (limiter)
• Makeup Gain: 0 to 20 dB
• 2 Line inputs: XLR
• 2 Line outputs: XLR
• Design: 19"/ 2 U
• Includes external power supply (100 - 240V)
