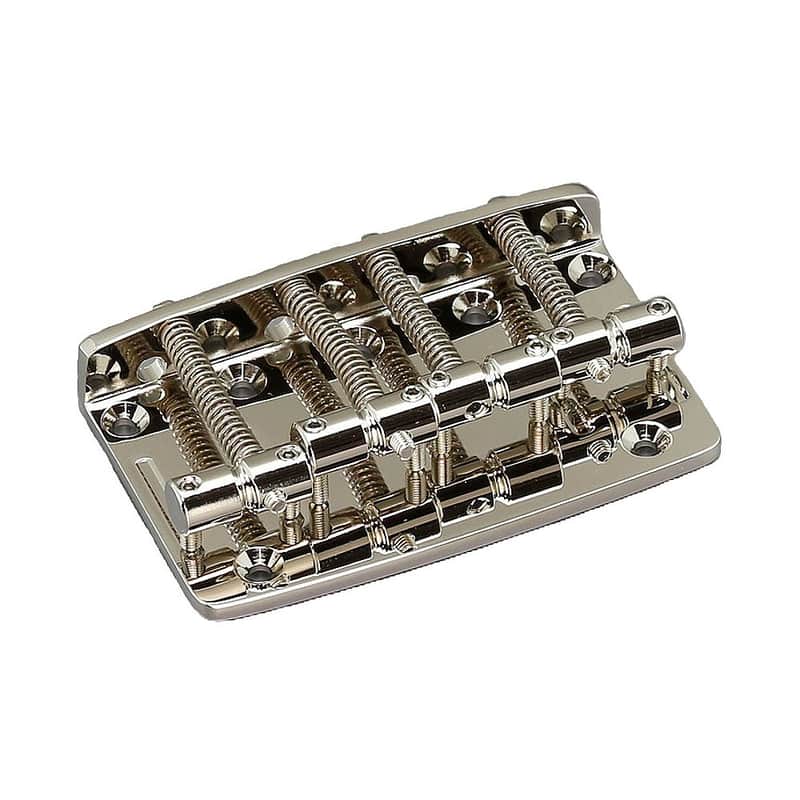

The Gotoh 203B-4 Bass Bridge is in the standard Fender Jazz & P Bass style with a bent baseplate and barrel saddles but it is upgraded with a thicker brass baseplate for a more solid connection and brass saddles.
The saddles are individually intonatable and height adjustable and the outer E and G saddles run in slots in the baseplate to stop sideways movement of the saddles (also made possible by the thicker baseplate), the saddles also have standard 19 mm string to string spacing. The seven fixing screws (included) provide maximum sustain and sound transmission to the guitar body and the back five screws are the standard Fender five screw spacing (you can leave out the front two screws for a completely reversible mod if preferred). The top loading strings mount through the back of the bridge for quick and easy restringing.
Features
- Gotoh 203B-4 Bass Bridge in the Fender Jazz & P Bass style with a bent baseplate and barrel saddles
- Thicker brass baseplate for a solid connection with slots to stop any sideways saddle movement
- Brass saddles (standard 19 mm string to string spacing)
- Individually intonatable and height adjustable saddles
- Mounting screws at back of baseplate are standard Fender five screw spacing
- The seven included screws lock the bridge tight against the body for maximum sound transmission
- Top loading strings mount through the back of the bridge for quick and easy string changes
- Made in Japan
Tech Specs
- Colour: Nickel
- String Spacing: 57 mm (2.2")
- Manufacturer Part Number: P203B-4N
