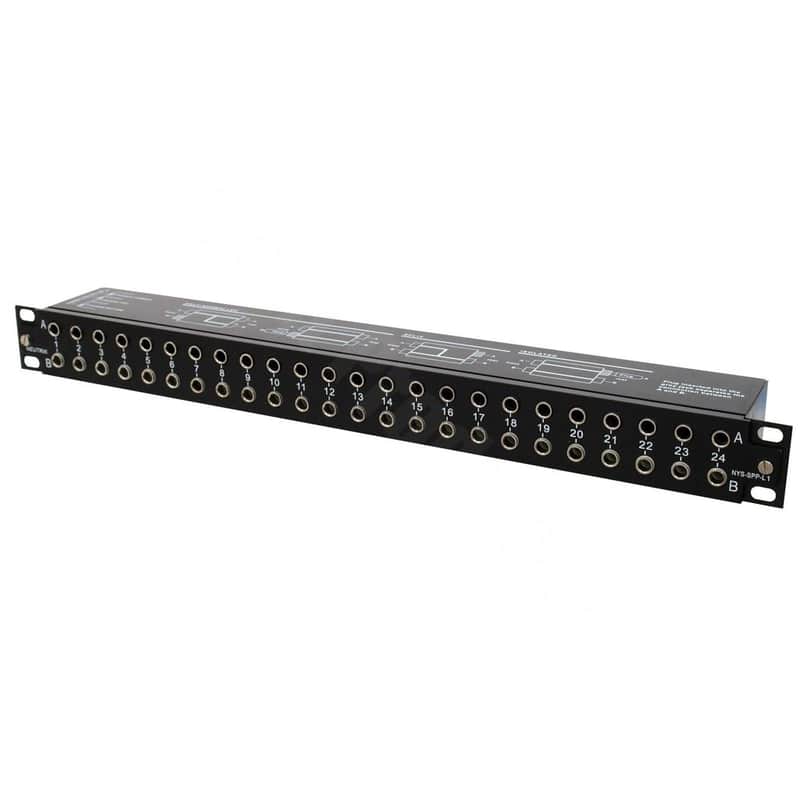

Neutrik/Rean NYS-SPP-L1 - 48 Way 1/4 Inch Balanced Jack Patchbay
The Neutrik/Rean NYS-SPP-L1 is a economical and remarkable sleek designed 1/4“ modular Patch Panel for 19“ rack mount (19“ x 1U) with a reinforced metal housing. Each of it‘s 48 PCB wired balanced channels (24 front pairs and corresponding 24 rear pairs) can either be grounded separately or in groups of individually chooseable channel numbers.
The PCBs are held securely in place by being clamped between the front and the rear panel, this grants an easy reconfiguration of the Patch Panel without the danger of loosing any small parts (e.g. nuts). The grey jack serves as an easy and distinguishable normalling identification.
Neutrik NYS-SPP-L1 Features
Individual grounding available for each channel separately
Ruggedized metal housing
Improved contact design minimises wear on mated plugs
Economic and versatile designed 1/4" modular Patch Panel with 2 rows of jack sockets
48 balanced channels with fully PCB wired jack (24 vertical PC boards), 24 front pairs and corresponding 24 rear pairs
Jack PC card contains 4 balanced 1/4" jacks with non-tarnishing contacts, is held securely in place without the use of nuts - no little pieces to drop, break or lose
Easy to change configuration by just flipping individual PC board
Normalling jack is coloured grey for easy identification
4 designation strips included for front and rear panel
Configuration
Standard configuration, when delivered, is Half Normalled bottom row. The configuration can easily be changed by just flipping the individual PCB. Inserting a plug into the grey jack will always isolate the top against the bottom row.
