Princeton Oak 5f2-A clone with 12" speaker

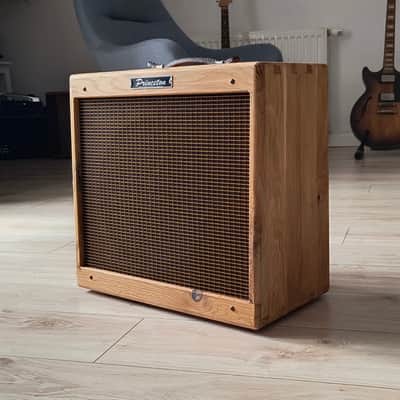

Princeton Oak is a vintage style combo amp clone of the 5f2-A in design and electric circuit.

This amp is a handmade and hand wired according to the specification close to the original 50's amplifier with 12" speaker and hum noise reduction (additional filter cap plus resistor in power section).

More details, pictures, videos, schematics can be found on my website (copy url to the browser): sites.google.com/op.pl/customguitaramps/princeton59-3

Amplifier specification

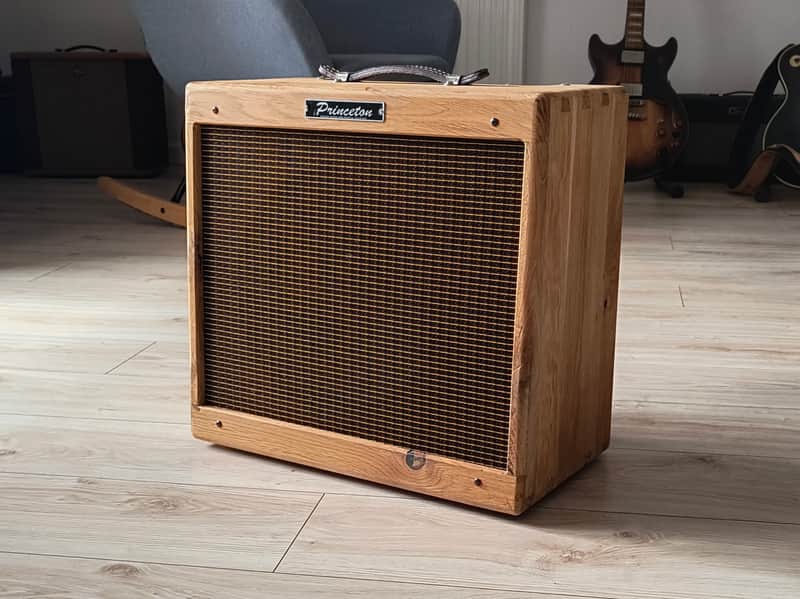

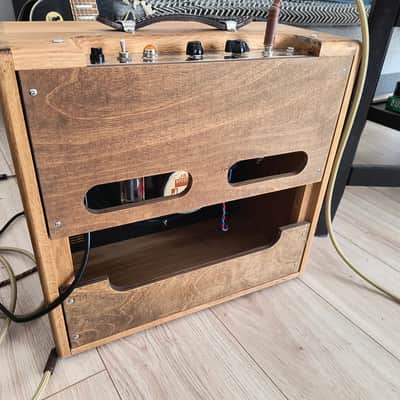

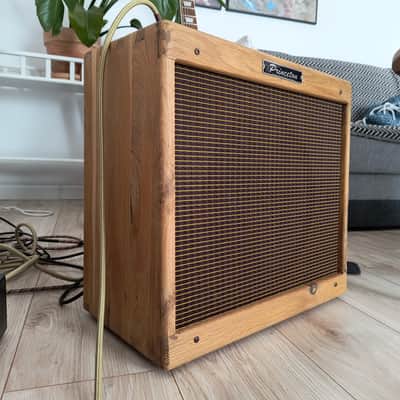

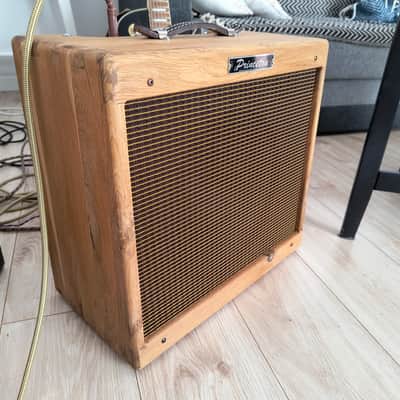

Cabinet:

• Oak wood, dove-tail joint
• Size: 42.5 cm height, 45 cm width, 21.6 - 24 cm depth
• Leather vintage handle
• Metal feet

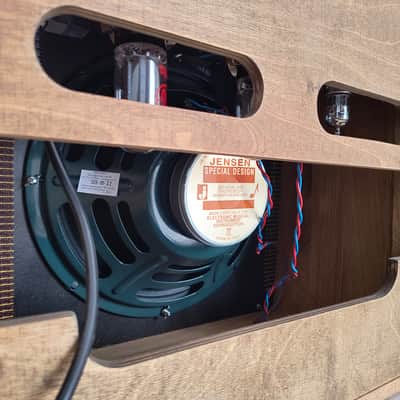

• Speaker: Jensen 12'' speaker, C12Q
• Weight: ~10 kg

Input and output:

• 1 x 1/4" input, Normal
• 1 x 1/4" input, Bright
• 1 x 1/4" output speaker -  8 Ohm
• Power output ~4 watts

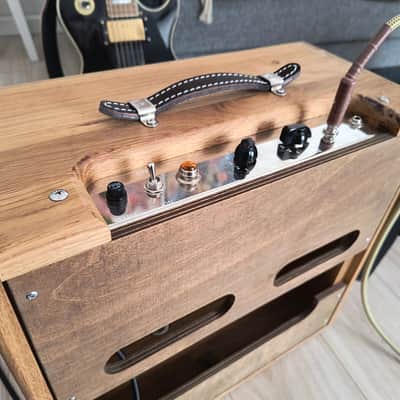

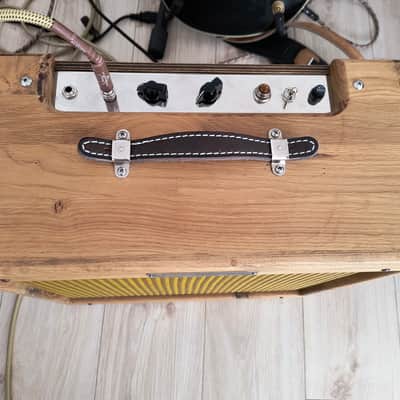

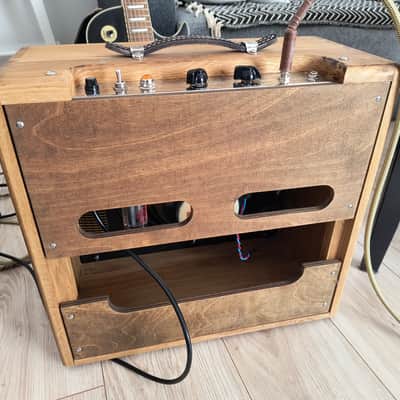

Controls:

• Volume
• Tone
• Power indicator lamp
• Power switch - on/off

Tubes:

• Pre-amp section: 1x 12AX7 JJ
• Power amp section: 1x 6V6S JJ
• Rectifier tube: 1x 5Y3S JJ

Circuit characteristics:

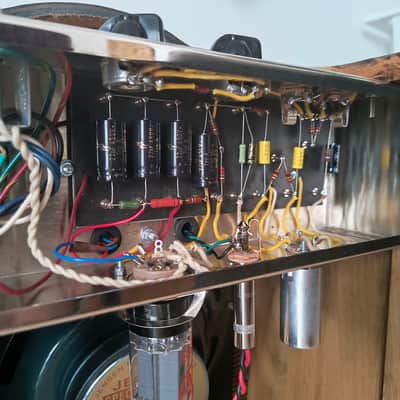

• Point-to-point wired circuit on fiberboard made for 5f2-A acc. to original spec . Easy to maintain.
• Carbon resistors
• TAD and F&T filtering caps
• Switchcraft input and speaker output sockets
• Fender CTS pots
• Vintage wires
• Tube heaters power supply referenced to ground
• Cathode biased power tubes - no need to adjust bias
• Tube rectifier 5Y3
• High quality power transformer: Hammond 291AEX
• High quality output transformer: USA made
• Fuse protection, 1 A
• Power supply ~230-240V,50Hz, ~40W

Shipping details:

• • I ship within EU countries ONLY - (UK excluded)
  • Shipment is insured (carrier)
  • Shipping time, up to 3 working days from purchase (payment collected)
  • DHL delivery time about 5 days
