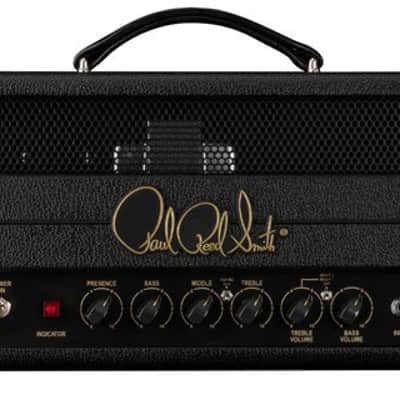

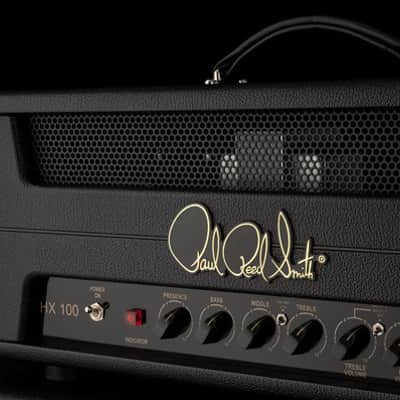

100 Watts | PRS “Hendrix” Circuit | EL34 Power Tubes
Captures the flexibility and balance of late 60’s British-inspired tone in a powerful 50-watt amplifier

The PRS HDRX 100 captures the flexibility and balance of late 60’s British-inspired tone in a powerful 50-watt amplifier. A continuation of PRS’s popular HXDA amplifiers, PRS HDRX amps feature a refined control layout and a newly-documented “Authentic Hendrix” Touring Circuit.

This circuit is heavily inspired by one of Hendrix’s personal amps, purportedly used at Woodstock, which Paul Reed Smith and PRS Amp Designer Doug Sewell were able to study in 2018.
Designed to push the high-end so it is very clear, but not so much that it’s harsh, the PRS HDRX shines without glaring and allows for aggression that can be backed off for smooth, sweet tones. The PRS HDRX 50 is driven by a pair of EL34EH power tubes, the best pre-amp tubes available, and a custom-designed Straight Edge output transformer.

The HDRX 100 has the documented 100 watt power supply, which makes it sound much closer to the 100 watt amplifier than a normal 50 watt amp. The power supply and filament design also make the HDRX 100 remarkably quiet with little to no amp “hum or hiss.”
The PRS HDRX 50 features a 3-band TMB tone stack, 3-way bright switch, high-mid gain switch, and presence controls. These features mirror the historic
amp and give players flexibility and increased control of their tone. The PRS HDRX 50 is also designed with internally bridged channels with individual volume
controls. This eliminates the need for a jumper cable (historically used on the outside of the amp) and allows players to more easily dial in their distortion level and tone by blending the lead and bass channels’ individual volume controls, bringing more modern convenience to the amp.

Made in PRS Guitars Stevensville, Maryland, USA factory, PRS HDRX 50 amps are an exhaustive recreation of tone, a celebration of history, and a monument to modern technology. PRS has also designed matching 2x12 and 4x12 cabinets for the HDRX Amp family. Loaded with modified Celestion G12H-75 Creamback speakers, these cabinets push and punch to complete the package.

“Designing the PRS HDRX was not an exercise in over-engineering – it’s a fairly straightforward build with the right parts and circuit. We kept historic specs
where it made sense, and we made substitutions based on availability, safety, and experience. In the end, I think we have made a great-sounding amplifier with exceptional build quality and enough power to blow your pantleg when you play it,” Paul Reed Smith.

Please note: This is a vintage stock volume amp. PRS recommends using a volume attenuator with these amplifiers. There are several good choices on the market. PRS recommends the Koch Loadbox LB120 II. Please note, these come in 16 and 8 ohm versions; make sure the resistance matches the cabinet being used.

ELECTRONICS
Wattage (nominal): 50
Output Transformer: Straight Edge 50 Watt Output

TUBES
Power Tubes: 2x New Sensor EL34EH
Preamp Tubes: 3x JJ ECC803S
Preamp Positions: 1- Input, V2- Cathode Follower, V3- Phase Inverter

FRONT PANEL CONTROLS
Channel 1 Controls: Bass Volume with common Presence, Bass, Middle, Mid Gain (on/off), Treble, Lead Volume, Bright (Off, Bright 1, Bright 2)

Channel 2 Controls: Lead Volume with common Presence, Bass, Middle, Mid Gain (on/off), Treble, Bright (Off, Bright 1,Bright 2), Bass Volume

BACK PANEL FEATURES
Inlet: IEC w/ integrated fuse
Bias: Adjustable
Channels: 2, Internally Bridged Output Jack Configuration/Ohm Selection: 2x4, 2x8, 1x16

MATERIALS/COVERING
Covering: Black Tolex
Piping: Black
Trim Panel: Black Tolex

MEASUREMENTS
Amp Width: 21.5”
Amp Depth: 10”
Amp Height: 10”
Amp Weight: 23.2 lbs
