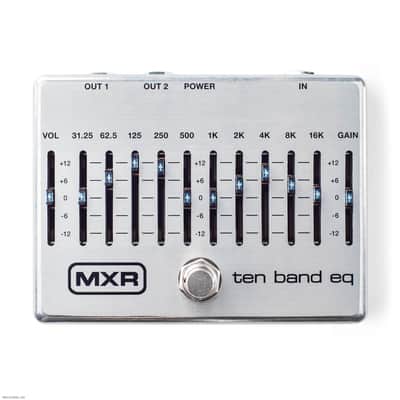

MXR® TEN BAND EQ

M108S

The MXR Ten Band EQ lets you tune your bass or guitar rig in seconds, and it's been upgraded with noise-reduction circuitry, true bypass switching, a lightweight aluminum housing, brighter LEDs, and a second output.

The MXR Ten Band EQ has been upgraded with noise-reduction circuitry, true bypass switching, a lightweight aluminum housing, brighter LEDs for increased visibility, and a second output so you can run two separate signal chains. With ten carefully chosen frequencies and both input and output level controls, the Ten Band EQ will let you tune your bass or guitar rig to any room in seconds-create earthshaking low-end; restore punch, level, and treble response to a crowded pedalboard; warm up an amplified acoustic; and much, much more. For ultimate tone-sculpting ability in a bullet-proof enclosure, put the Ten Band EQ on your pedalboard.

Effect Type: EQ
Nominal Input Level: +14 dBV
Input Impedance: 470 kΩ
Nominal Output Level: +14 dBV
Output Impedance: 5 kΩ
Connectors: 1 x 1/4", Outputs: 2 x 1/4"
Power Supply: 18V DC
Current Draw: 26mA
Frequency Response: ±1 dB, 20 Hz to 20 kHz
Specifications II: True Hardwire



Item No.: M108S
