Pet-free and smoke-free home

As new, never left the house. Box and manual included.

Private Sale Disclaimer
This item is sold by a private seller. The sale is made on an "as is" basis. No warranty, guarantee, or right of withdrawal is provided. Returns, refunds, or exchanges are excluded unless otherwise agreed or required by applicable law.

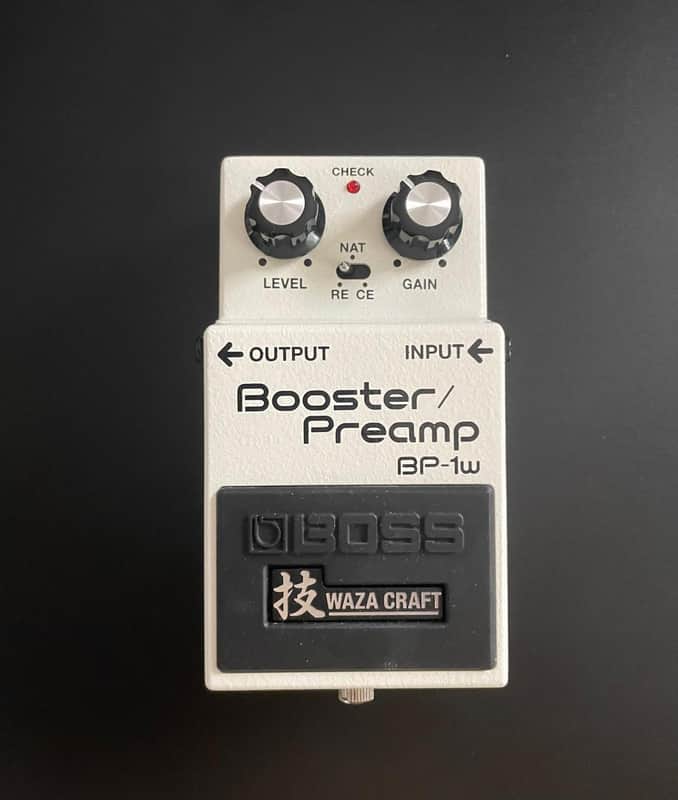

The inspiring sounds of the legendary BOSS CE-1 Chorus Ensemble and RE-201 Space Echo have become iconic over the years. A key part of their unmistakable character comes from their variable analog preamp circuits, which add warmth, body, depth, and richness to any guitar tone. With the BP-1W, you can now enjoy both classic preamp sounds in a premium Waza Craft pedal, along with a natural, transparent clean boost for enhanced versatility.

Technische Daten

• Nominal Input Level: -20 dBu
• Input Impedance:

• Effect OFF: 1 MΩ
• Effect ON:
  • 1 MΩ (Buffer: STD)
  • 100 kΩ (Buffer: VTG)
  • Nominal Output Level: -20 dBu
  • Output Impedance: 1 kΩ
  • Empfohlene Load Impedance: 10 kΩ oder höher
  • Bypass: Buffered

Bedienelemente
• Gain
• Level
• Buffer Switch (STD/VTG)
• Mode Switch
• Footswitch

Anzeige
• CHECK LED (dient gleichzeitig als Batterieanzeige)

Anschlüsse
• INPUT: 6,3 mm Mono-Klinke
• OUTPUT: 6,3 mm Mono-Klinke
• DC IN: 9 V DC (PSA Adapter)

Stromversorgung
• 9 V Alkaline-Batterie (6LR61)
• PSA Series AC Adapter (separat erhältlich)

Stromaufnahme
• 60 mA

Batterielaufzeit
• Ca. 4,5 Stunden (9 V Alkaline)
*Die tatsächliche Batterielaufzeit hängt von den Einsatzbedingungen ab.

Abmessungen (B × T × H)
• 73 × 129 × 59 mm
• 2.9 × 5.1 × 2.4 in

Gewicht
• 430 g (inkl. Batterie)
• 0.95 lb

(Specs and description from the manufacturer's website)
