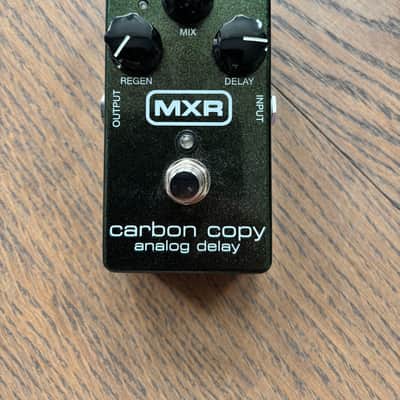

MXR M169 Carbon Copy Analog Delay pedal in green sparkle finish.

Because I have not tested it myself before listing, it is sold as photographed and described.

The M169 Carbon Copy is a fully analog delay pedal built around traditional bucket-brigade technology. It produces warm, progressively darker repeats associated with classic analog and tape-style echo sounds, with an adjustable delay range from approximately 20 milliseconds to 600 milliseconds.

The three main controls are Mix, Regen, and Delay. Mix adjusts the balance between the dry and delayed signals, Regen controls the number of repeats, and Delay adjusts the time between repeats. The pedal can produce anything from short slapback echoes and subtle ambience to long repeating delays and self-oscillating effects.

A separate Mod button adds modulation to the delayed signal, producing a gentle pitch movement similar to the instability or warble of an older tape echo. The modulation speed and width can also be adjusted using two internal trim potentiometers.

The signal path is fully analog and the pedal uses true hardwire bypass. It can be powered by a standard 9V battery or a compatible centre-negative 9V DC power supply.

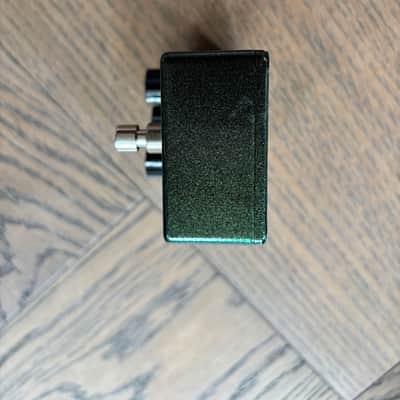

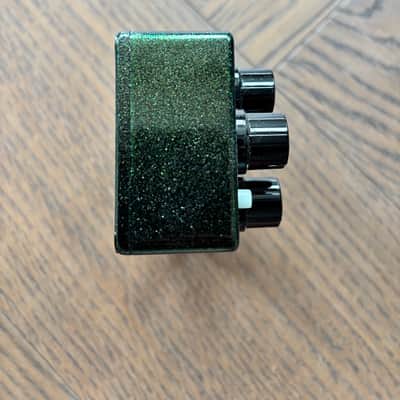

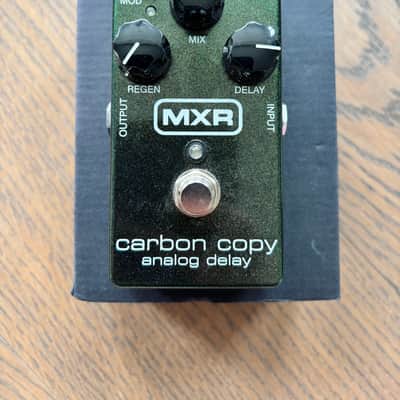

The pedal is in very good cosmetic condition overall. The green sparkle enclosure presents very well, with only minor dust, extremely light surface signs, or storage marks potentially visible under direct light. The graphics, knobs, Mod button, LED lenses, metal footswitch, input and output sockets, power socket, baseplate, and screws all appear intact.

There is no Velcro or pedalboard adhesive attached to the underside.

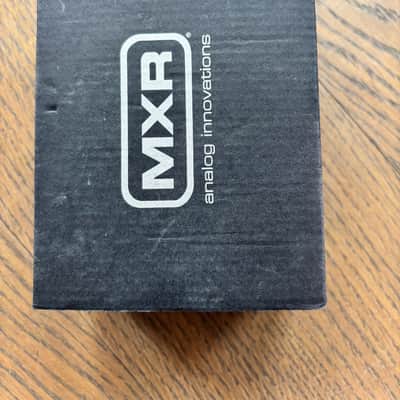

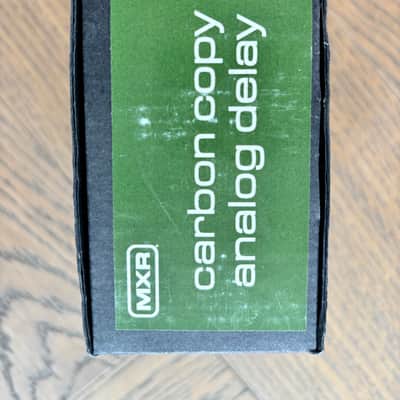

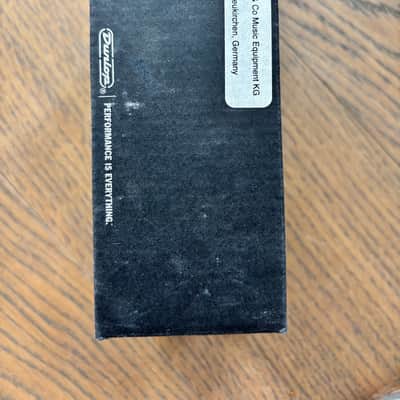

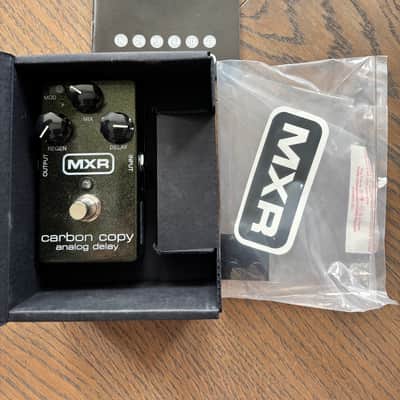

The original MXR box, Quick Guide, MXR sticker, and accessory packet shown in the photographs are included. The box has considerable cosmetic storage wear, including scuffs, scratches, creasing, dents, edge wear, corner compression, surface rubbing, and marks on the printed label.

Condition

• Very Good used condition
• Not freshly tested before listing
• Functionality can be confirmed before shipping if required
• No pedalboard use
• No Velcro or adhesive attached
• Green sparkle enclosure presents exceptionally well overall
• Minor dust or extremely light storage / handling signs may be visible
• Front graphics and control labels remain clear and intact
• Mix, Regen, and Delay knobs appear intact
• Mod button and modulation LED appear intact
• Main effect LED and metal footswitch appear intact

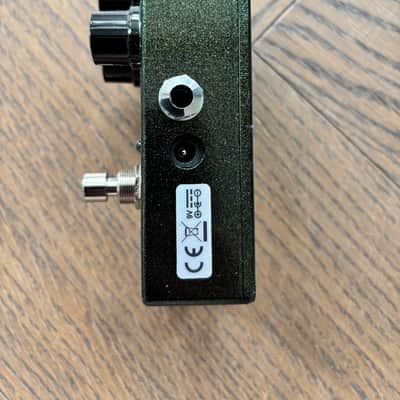

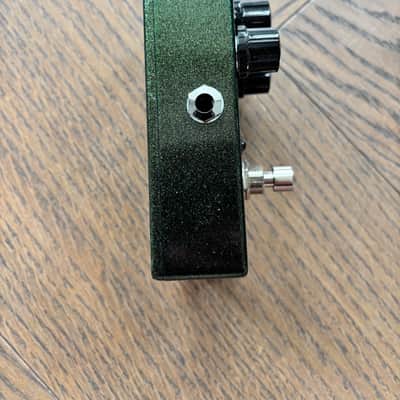

• Input, output, and power sockets appear intact

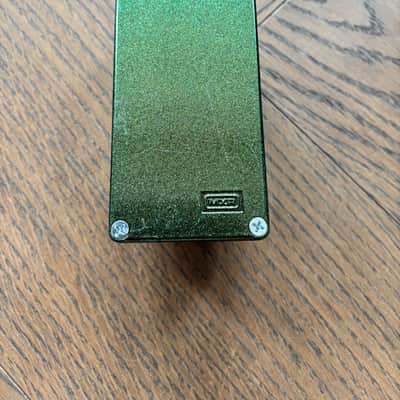

• Baseplate and four retaining screws are present

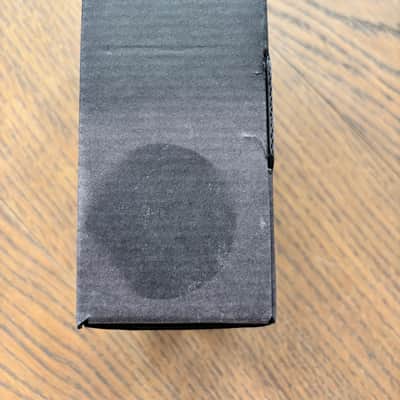

• Original box has substantial scratches, scuffs, creases, dents, and edge wear
• Original Quick Guide, MXR sticker, and accessory packet included
• No obvious broken or missing pedal components visible

Specifications

• Brand: MXR
• Manufacturer: Dunlop Manufacturing
• Model: M169 Carbon Copy Analog Delay
• Effect Type: Analog delay / echo
• Finish: Green sparkle
• Model Era: 2008–2021
• Pedal Format: Standard compact pedal
• Country of Manufacture: United States
• Circuit: 100% analog bucket-brigade delay
• Signal Path: Fully analog
• Delay-Time Range: Approximately 20–600 ms
• Controls: Mix, Regen, Delay
• Mix Control: Adjusts the balance between dry and delayed signals
• Mix Range: Fully dry to fully wet
• Regen Control: Adjusts the number of delay repeats
• Delay Control: Adjusts the time between repeats
• Modulation Control: Push-button modulation on / off
• Internal Modulation Controls: Adjustable width and speed trim potentiometers
• Modulation-Speed Range: Approximately 0.2–2.2 Hz
• Main Function: Warm analog delay ranging from short slapback to longer atmospheric repeats
• Self-Oscillation: Available at higher Regen settings
• Noise Reduction: 2:1 ratio
• Bypass: True hardwire bypass
• Indicator: Blue effect-status LED
• Modulation Indicator: Separate blue modulation-status LED
• Input: 1/4" mono input jack
• Input Impedance: 1 MΩ
• Maximum Input Level: +5 dBV at 500 Hz
• Output: 1/4" mono output jack
• Output Impedance: 1 kΩ
• Maximum Output Level: +8 dBV
• Power: One 9V battery or compatible 9V DC adapter
• Power Polarity: Centre negative
• Current Draw: Approximately 26 mA
• Recommended Adapter: Dunlop ECB003 / ECB003EU or equivalent
• Construction: Metal enclosure with metal footswitch

Included

• MXR M169 Carbon Copy Analog Delay pedal
• Original MXR retail box
• Original Quick Guide
• Original MXR sticker
• Original accessory packet shown in the photographs
• Original internal cardboard packaging
• No external power supply included

Shipping

The pedal will be carefully packed in protective packing material inside an outer shipping box included in the item or shipping price.

Shipping will be via tracked courier service depending on destination, price, parcel size, and insurance availability. Tracking will be provided after dispatch.

International buyers are responsible for all import duties, VAT, customs fees, tariffs, brokerage / handling fees, and any other local taxes or charges required by the destination country. These costs are not included in the item price or shipping price.

Shipping outside Europe may be possible by prior agreement. Please contact me before purchasing for an exact insured courier quote.
