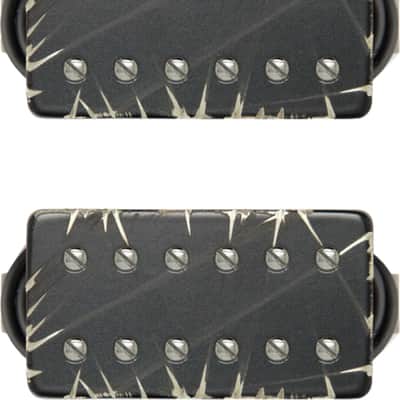

Whether it's crushing rhythm tones, fluid solo tone or massive clean soundscapes that you want to create, the Juggernaut humbuckers deliver on every level. The Juggernaut is Periphery guitarist Misha Mansoor’s signature humbucker, and the pickup has been designed with Misha’s progressive playing style in mind. Along with a massive sound, the pickup has an optional distinctive 'bulb' design cover etch, which adds a further dimension to an already unique pickup. The Juggernaut humbucker is designed with symmetrically hand-wound twin screw coils and has a unique combination of massive Alnico V and ceramic VIII flankers for its engine in the bridge and a custom size Alnico V in the neck. Bass response is big and focused with lots of weight in the mids for the ultimate in definition through complex extended chord voicings. High end is rich and vocal with all of the articulation and dynamic control that Misha demands for his progressive playing style. As with all Bare Knuckle humbuckers, 4 conductor hook-up not only allows access to standard series (humbucking) tone but also parallel wiring (still hum cancelling) or selection of either individual coil for total versatility.

Product Features

• 4-Conductor Cable
• Short Leg Length
• 50mm Bridge Pole Spacing
• APPLICATIONS: Progressive Rock & Metal, Thrash, Death Metal, Punk, Hardcore, Hard Rock, Metalcore and Extreme Metal styles
• SUITABILITY: Any solid-body; heavily detuned and extended range guitars; any guitar needing more control in the bass and increased focus in the mids with singing high end
• Bridge DC Resistance: 13.3 kΩ
• Bridge Magnet: Alnico ceramic mix
• Neck DC Resistance: 8.9 kΩ
• Neck Magnet: Alnico 5
• Made in England
• Periphery guitarist Misha Mansoor’s signature humbucker

Attributes

• Color: Black Battleworn Covers

Technical Specifications

• # of Strings: 6
• Features: Stand Included, Signature Model
• Pickup Type: Humbucker
• Active/Passive: Passive
• # of Conductors: 4
• Quantity: Set
• Magnet Material: Alnico/Ceramic
• DC Resistance: Bridge: 13.3 kΩ - Alnico ceramic mix, Neck: 8.9 kΩ
• Format: Traditional Humbucker
• Humbucker String Spacing: Standard
• Screw Color: Nickel
• Shaft Length: Short
