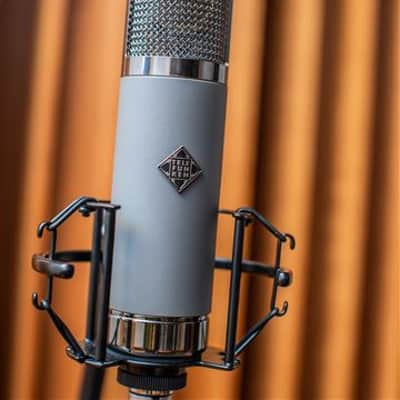

The TF51 is a fresh take on the ‘Austrian’ microphone sound associated with the Telefunken ELA M 251E and C12. The TF51 continues this legacy, exhibiting a smooth midrange and airy top end, capturing every nuance in pleasant detail. This is a reliable first choice for stand out vocals, acoustic instruments, and percussion.

This lifelike fidelity is created with high quality components based off these inspirations. The 6072A vacuum tube (also found in our ELA M 251E and C12) is mated with an edge-terminated style capsule similar to the historic CK12. The output transformer is a custom German-made Haufe transformer, the original manufacturer for TELEFUNKEN. This attention to detail gives the TF51 a beautifully open and smooth sonic profile.

Telefunken TF51 Multi Pattern Large Diaphragm Mic Specifications

• Type: Pressure Gradient Condenser
• Capsule: TK51 - 26.5 mm Dual Membrane, Edge-Terminated Diaphragm
• Tube Type: 6072A
• Transformer: Custom-Wound Haufe
• Polar Pattern: Cardioid, Omnidirectional, and Figure-8
• Frequency Range: 20 Hz - 20 kHz, ± 3 dB
• Sensitivity: 19.6 mV/Pa, ± 1 dB
• THD AT 1 kHz at 1 Pa (Amplifier): < 0.4%
• Output Impedance: < 300 _
• Maximum SPL (for 1% THD): 128 dB
• S/N Ratio: 85.4 dBA
• Self Noise (Amplifier): 8.6 dBA
• Dimensions / Size: 200 mm L x 46 mm Dia.
• Weight: 612 g
• Current Draw from Mains: 50 mA
• Power Supply: M 903 PSU - 7-Pin Female XLR Input, 3-Pin Male XLR Output, Polar Pattern Selector
• Cable: M 803 - 7-Meter (23') Tube Mic Cable with 7-Pin XLR Connectors
• Mount: M 703 - Shock Mount, M 782 - Stand Mount
• Flight Case: ZC03 - Light-Weight Zipper Carrying Case
