The Moog ladder filter is one of the most iconic circuits in music history, invented by Bob Moog in the mid-1960s. It is a 4-pole voltage-controlled low-pass filter that provides a sharp 24 dB per octave slope, creating the "massive, thick" sound synonymous with Moog synthesizers like the legendary Minimoog.

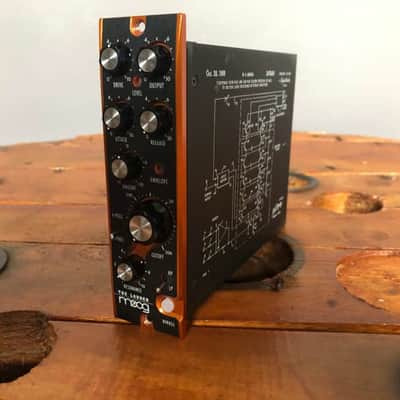

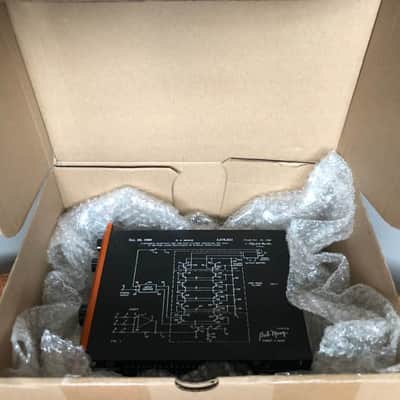

How the Ladder Filter WorksThe circuit gets its name because its schematic resembles a ladder, with pairs of transistors acting as the "stiles" and capacitors as the "rungs".

• Filter Topology: It consists of four identical 1st-order filter stages stacked together.
• Transistors as Resistors: Instead of standard resistors, Bob Moog used the internal dynamic resistance of transistors. By changing the control voltage, he could vary this resistance, allowing for precise, real-time control over the cutoff frequency.
• Resonance (Emphasis): Part of the output signal is fed back into the input stage. This creates a boost at the cutoff frequency known as resonance or "Q," which can be pushed into self-oscillation to create a pure sine wave.
• Non-Linear Character: The transistors introduce subtle, musically pleasing harmonic distortion (often called "warmth") when pushed hard.
