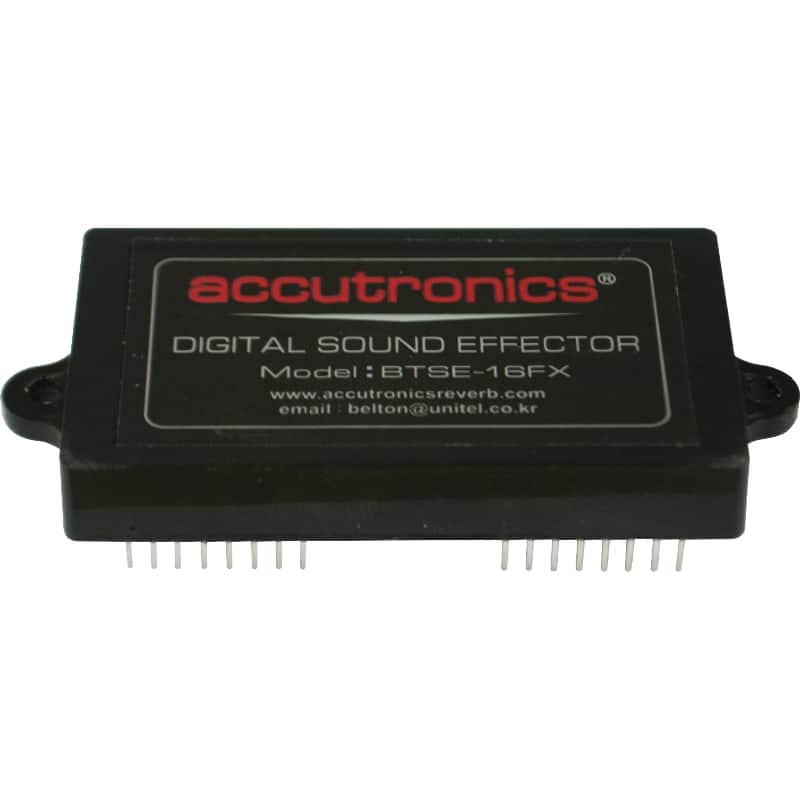

DSP Module - BTSE-16FX, Belton, Digital Sound Effector

The BTSE-16FX Effect board provides 16 different digital audio effects to be used for mixers or other audio applications that require sound enhancement. Equipped with the superb quality digital effects processing engine which it adds that extra punch needed to make audio presentations truly stand out.

Applications

• Guitar and keyboard Amplifiers/ Combos
• Audio mixing consoles / Powered Mixing Console
• Karaoke systems
• Stand -alone stereo Effect units for studio and PA usage

Effects Program Chart 1100 Hall 1 Bright hall reverb for drum, guitar and vocals. 1110 Hall 2 Warm hall for acoustic guitars, pianos and vocals. 0110 Room 1 Hardwood studio for acoustic instusment. 0100 Room 2 Ambience for acoustic mixers and synth sounds. 0000 Room 3 Warm room for guitars and rhythm. 0010 Plate 1 Classic plate reverb for lead vocals and drums. 0011 Plate 2 Sizzling bright plate reverb for vc. 0001 Plate 3 Short vintage plate reverb for snares and guitars. 0101 Chorus Stereo chorus for guitars and pianos. 0111 Flanger Stereo flanger for jet wash effects. 1111 Delay 1 125ms snapback delay for vocals and guitars. 1101 Delay 2 190ms delay for percussive arpeggios. 1001 Chorus/Room1 Chorus with reverb for guitars, synths, and pianos. 1011 Chorus/Room2 Auto wah guitar effect with reverb for lead instuments. 1010 Chorus/Delay Chorus Delay for guitars, synths, and pianos. 1000 Rotay Speaker Rotary speaker emulation for organs and guitars. Pin Descriptions Part Pin Name Function CN1 1 L-Out Audio Out Left 2 R-Out Audio Out Right 3 AGND Analog Ground 4 IN Auido Input 5 3.6V +3.6V Out 6 AGND Analog Ground 7 MUTE Mute (SW 5 bit) 8 FND-DATA FND Data out CN2 1 DB0 Serial data 2 DB1 Serial clock 3 RSTC Rest 4 GND Ground 5 3.6V +3.6V Out CN3 1 SW1 SW 0 bit 2 SW2 SW 1 bit 3 SW3 SW 2 bit 4 SW4 SW 3 bit 5 BANK SW 4 bit 6 DGND Digtial Ground 7 FND-CLK FND clock out 8 5V +5V power supply CN4 1 ISP-CLK ISP Clock 2 ISP-SD Analog Ground 3 RSTB Rest 4 GND Ground 5 3.6V Analog Ground 6 TEST Test
Product Measurements

FX Presets: 16
Passband Frequency: 20 Hz ~ 20 kHz
DSP Arithmetic: 24 bit
S/N (A-weighted): 90 dB
Dynamic Range: 90 dB
Sampling Rate: 48 kHz
Power Supply Voltage (VCC): 5 VDC
Item Length: 35 mm
Item Width: 4 mm
