I am selling a brand new Rupert Neve Designs Master Bus Transformer officially sourced from the factory. Feel free to contact me for inquiries and to place an order. Below are additional terms in my store and a description of the device.
- All products are officially sourced from the vendor or distributor.
- I provide a minimum 3-year warranty on all products, or longer depending on the type of product.
- Most products are available for testing on demand in the showroom in Warsaw.
- Every customer in Europe is entitled to a 30-day return policy. This option doesn’t cover customers abroad EU.

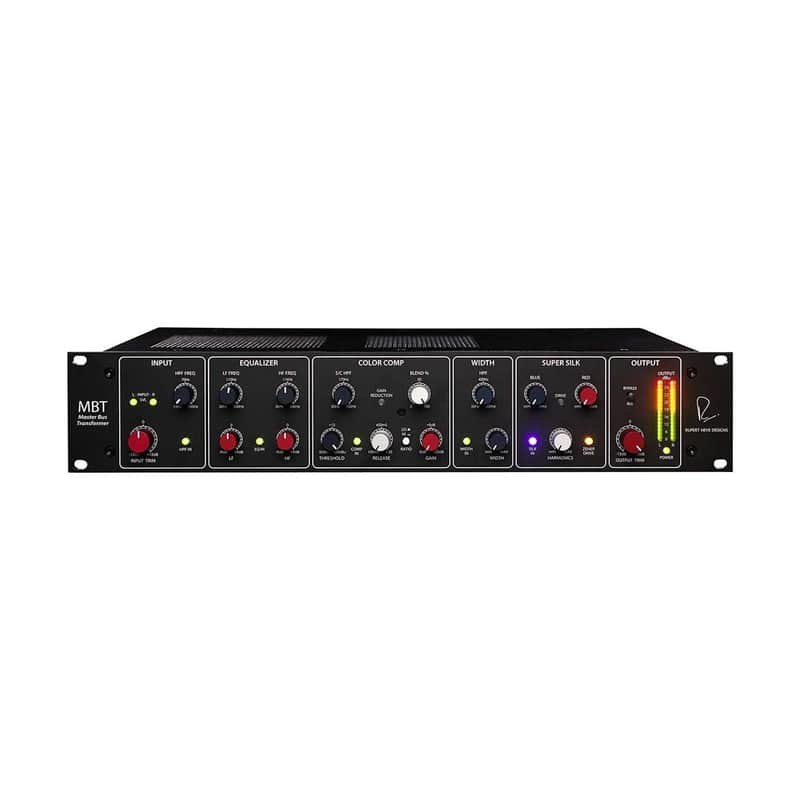

The Rupert Neve Designs Master Bus Transformer (MBT) is a powerful creative tool designed to sweeten, enhance, widen, and thicken your mixes with the legendary musicality of Rupert Neve's custom transformers. Unlike a traditional dynamics processor, the MBT is a "color box" built around four distinct sections—HPF/Input, EQ, Color Comp, and Super Silk—each designed to interact and breathe life into sterile tracks, stems, or full mixes. It is the ultimate final polish for engineers who want to add weight, dimension, and analog glue without sacrificing clarity.
Key elements of its design:
- Custom Transformer Topology Packed with RND's custom interstage and output transformers, the MBT is built to generate tasty harmonic saturation. The "Drive" control allows you to push the interstage transformers into their sweet spot, adding rich, musical harmonics before the signal even hits the output.
- 2-Band Shelf EQ A simple but elegant 2-band equalizer with 3-octave ranges allows for broad, gentle shaping. The Low Frequency band (30Hz-240Hz) adds weight without mud, while the High Frequency band (3kHz-24kHz) adds air and shine without harshness.
- Color Comp An all-new optical compressor design optimized for non-linear coloration. With a fixed 2:1 ratio and a variable high-pass sidechain, it can be dialed from subtle, groovy compression to aggressive squashing that brings out the attitude of drums and vocals.
- Super Silk The latest evolution of RND's signature texture circuit, "Super Silk" provides independent "Red" (High Frequency) and "Blue" (Low Frequency) controls, plus a "Harmonics" knob to saturate the output transformers for even more vintage grit and character.
- Stereo Width An additive width circuit increases the perceived stereo image without losing center focus. It features a variable high-pass filter (50Hz-800Hz) to ensure that low-end frequencies remain mono and punchy while the mids and highs spread out.
User feedback describes the MBT as a luxury "make-better box" that smooths out harshness and adds "3D dimension" to flat mixes. Reviewers highlight the interaction between the Drive, Color Comp, and Super Silk sections as the magic sauce, capable of transforming a sterile digital mix into a warm, cohesive, and "expensive-sounding" record.
Technical specifications:
- Processor Type: Stereo Coloration / Dynamics / EQ
- Number of Channels: 2 (Stereo)
- EQ Section: 2-Band Shelf EQ (LF: 30Hz-240Hz, HF: 3kHz-24kHz), +/- 9dB Gain
- Compressor: Optical "Color Comp", 2:1 Ratio, Variable Threshold & Release
- Sidechain HPF: Variable 20Hz - 350Hz
- Width Control: Additive Stereo Width with Variable HPF (50Hz - 800Hz)
- Super Silk: Independent Red (HF) and Blue (LF) Texture Controls + Harmonics Saturation
- Input/Output: 2 x XLR Balanced Input, 2 x XLR Balanced Output
- Max Output Level: +25.5 dBu
- Frequency Response: <5 Hz - 30 kHz (+/- 0.1 dB)
- Noise: Better than -95 dBu
- Power Supply: IEC Standard 100-240 VAC
- Dimensions: 19" (48.3 cm) W x 10.125" (25.7 cm) D x 3.5" (8.9 cm) H (2U)
- Weight: 17 lbs (7.7 kg)
