Roland RS-101 MIDI retrofit Vitalka Custom

This retrofit receives MIDI notes and triggering circuit boards the same as you playing on the keyboard with hands and triggering key contacts. It controls only the keyboard, all other controls in your hands and you still can play with the keyboard at the same time when it controls with MIDI.

Installation is relatively simple, but requires tools, for soldering and drilling holes. If you can`t do it yourself - hire technician at local repair shop. It takes, approx. 1.5-2,5h in moderate speed.

Features:

• MIDI channel learn button. For set which one of 16 channels will be listen.
• Saves learned MIDI channel forever (you can rewrite if need - just push the button again).
• Easy installation for people who have some work experience with tools.
  You should find a friendly place for DIN jack, button and LED.
• Full polyphony.
• Optical switching. (no any ground loop problems)
• Controls only keyboard.
• No need additional power supply.
• Small size 102x50mm.


Set includes:

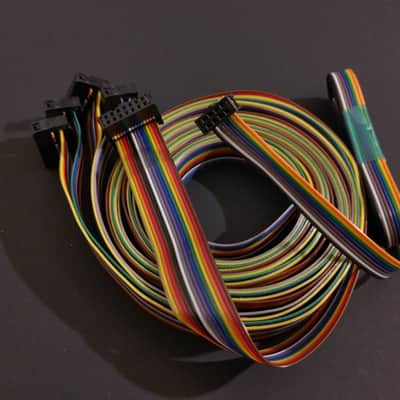

Fully assembled PCB, screws, nuts, spacers, push button, DIN5 socket, LED and ribbon cable set.

To teach the MIDI channel, push the black button (LEARN) LED will blink two times and stay ON to wait for MIDI messages. When messages are received LED will blink five times and turns OFF and then will ON with every NOTE ON messages on the selected channel. Now the channel saved to memory and not changed before will be rewritten.

Made in USA
