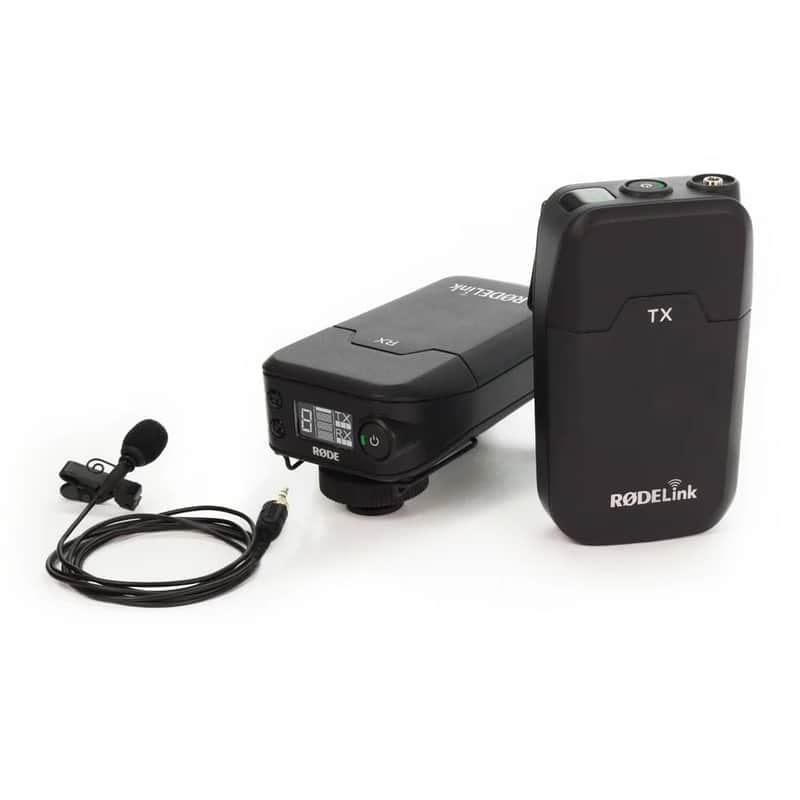

RØDELink Filmmaker Kit Wireless Microphone System

RØDELink represents a range of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 meters* (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter, and broadcast-grade Lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute, and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread, or belt clip, and for added versatility, the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional Lavalier microphone in the kit to provide the highest possible audio reproduction quality.

What's in the Box:

1 x RØDELink TX-BELT

1 x RX-CAM

1 x RØDELink Lav

1 x WS-LAV

1 x LAV-CLIP

Specifications:

Transmission Type - 2.4GHz Fixed Frequency Agile System

System Dynamic Range - 112 dB

Range (Distance) - Up to 100m

Frequency Range - 35Hz - 22kHz

Maximum Output Level - 1v Rms (2.8v P-p)

Maximum Input Signal Level - 1v Rms (2.8v P-p)

Maximum Latency - 4ms

Power Source - 2 X AA Battery Or MicroUSB

Antenna - Internal

Output Connection - RX-CAM - 3.5mm TRS Locking Jack Socket - Dual Mono

Input Connection - TX-BELT - 3.5mm TRS Locking Jack Socket

Output Impedance - RX-CAM - 300Ω

RØDELink LAV - 3k Ω Typical

Input Impedance - 10kΩ

Acoustic Principle - Permanently Polarised Condenser

Polar Pattern - Omni-directional

Frequency Range - 20Hz – 20kHz

Maximum SPL - 110 dB SPL (@ 1kHz, 1% THD into 1Ω load)

Sensitivity - -33.5db re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2dB @ 1kHz

Signal-to-noise Ratio - 67 dB

Equivalent Noise (A-Weighted) - 27 dB Typical

Dynamic Range - 83 dB Typical
