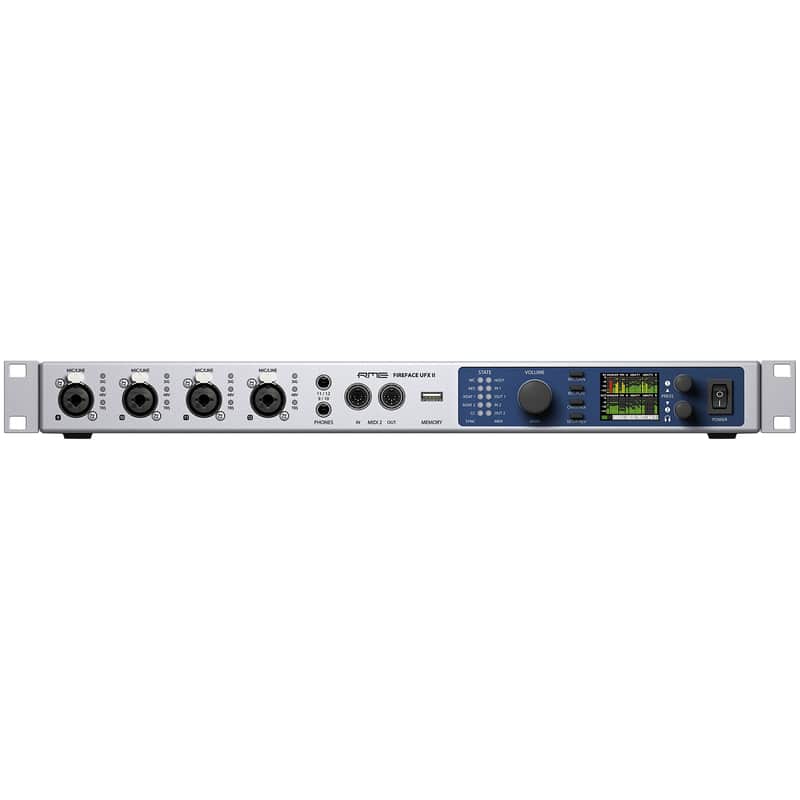

The Fireface UFX audio interfaces offers 30-input and 30-output channels of audio with digitally controlled microphone preamps, reference class converters, and full 24-bit 192kHz operation. Fireface UFX is a highly integrated pro studio-quality audio interface with ultra-low latency in a 19-inch enclosure. The Fireface UFX can be configured for standalone use as a microphone preamp, a monitor mixer, an AD/DA converter, The Fireface UFX offers ultra-low latency operation with USB 2.0 and FireWire 400, combined with driver stability. Other features include active jitter suppression, professional reference level support, advanced standalone functionality, RME's unique DIGICheck metering and analysis toolbox, and nearly identical operation and features on Windows PC and Mac. TotalMix FX digital mixer and signal router is driven by two DSPs with integrated EQ, Dynamics, and Reverb/Echo effects up to 192 kHz, plus built-in monitoring control. The DSP-based TotalMix mixer allows independent routing and mixing of all 30 input and playback channels to all 30 physical outputs. Up to 15 totally independent stereo submixes plus a comprehensive Control Room section offer monitoring capabilities and routing flexibility. Bright multifunctional colour display with full front-panel metering for all 60 channels plus effect bus, and complete control of all key features directly from the front of the UFX.

• 30 Input / 30 Output channels
• 24-bit 192kHz
• 12 x Analog I/O: 4 x Combo Mic/Line, 8 x TRS
• 4 x Mic/Instrument Preamp, digitally controlled
• 1 x AES/EBU I/O
• 2 x ADAT I/O (or 1 x ADAT I/O plus 1 x SPDIF I/O optical)
• 1 x Word Clock I/O
• 2 x MIDI I/O
• 1 x FireWire 400
• 1 x USB 2.0
• TotalMix FX DSP mixer/ signal router
• USB-Audio-Schnittstellen
• Design: Rack Enclosures
• Rack mounting: 19"/1U
• Sampling Rate: 192 kHz
• Resolution: 24-Bits
• Mic Inputs: 4
• Analogue In/Out: 12 I
