Description

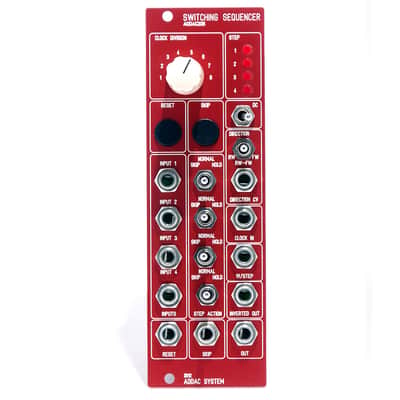

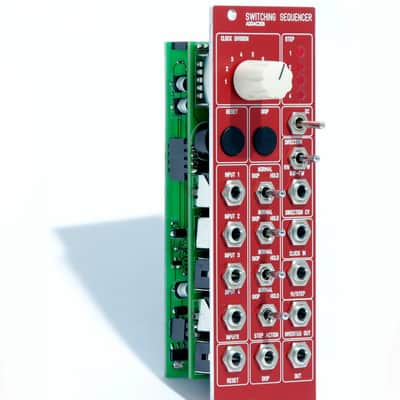

This is a Quad Channel Switcher

Features:

.4 inputs to 1 output or 1 input to 4 outputs for both audio or voltage (AC/DC)
.Clock input with clock division knob
.Skip step & reset sequence push buttons and trigger controls
.Direction with cv control to play sequence backwards, pendulum or forward.
.Each step features  skip, play or hold functions
.Digital inverted output which offers "Fuzz" like sounds when using audio.
.4 monitor leds to show the actual state.

Among many other possibilities it allows to:

.Turn any 4x4 step sequencer into a 16 step sequencer.
.Scramble sequences with diferent clock division settings.
.Route 1 audio or voltage signal to 4 diferent destinations.
.Switch between 4 audio or voltage signals.

Specs MECHANICAL: Format: Eurorack Width: 8 HP Depth: 3.5 cm
ELECTRICAL: Max current: +80mA/-40mA Bus Board Cable: 8 × 2 IDC (Doepfer style) connector

LEAD TIME - IMPORTANT NOTE:
Although this is also described in our Shop Policy page, it is worth stressing that, by virtue of being a small team and not outsourcing a great part of our production, long story short, we sort of make your order on demand.
After you place an order, it takes 15 business-days to be ready to ship.
This is why you'll see this module as 'in stock', but this in fact means that we do have all its parts and can produce your module. Thanks for understanding, and for choosing us!
