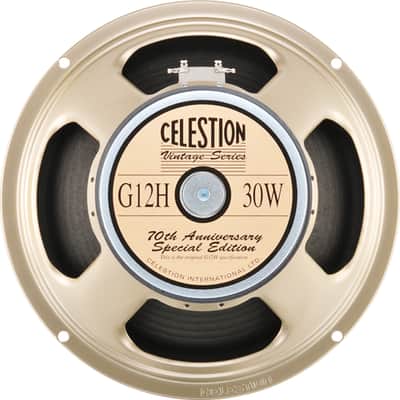

Originally re-released a little over a decade ago, the G12H remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock.With a strong, aggressive low-end and powerful low-mids, the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. Used singly or in quartets it provides serious attitude to soft amp tones, easily cutting through loud stage levels for chord work, and imparting a hard edge to single notes.A favourite in the 'boutique' amplifier market, the G12H is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.

- General Specifications

- Nominal diameter - 12", 305mm

- Power rating - 30Wrms

- Nominal impedance - 8?

- Sensitivity - 100dB

- Chassis type - Pressed steel

- Voice coil diameter - 1.75", 44.5mm

- Voice coil material - Round copper

- Magnet type - Ceramic

- Magnet weight - 50oz, 1.42kg

- Frequency range - 75-5000Hz

- Resonance frequency, Fs - 85Hz

- DC resistance, Re - 6.7? and 13.1?

- Mounting Information

- Cut-out diameter - 11.1", 283mm

- Diameter - 12.2", 309mm

- Magnet structure diameter - 6.1", 156mm

- Mounting slot dimensions - 0.31",7.9mmØ

- Mounting slot PCD - 11.7", 297mm

- Number of mounting slots - 4

- Overall depth - 5.3", 135mm

- Unit weight - 10.4lb, 4.7k
