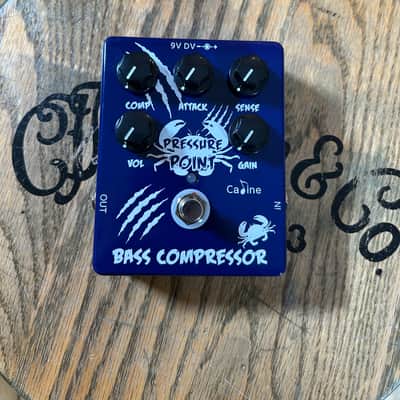

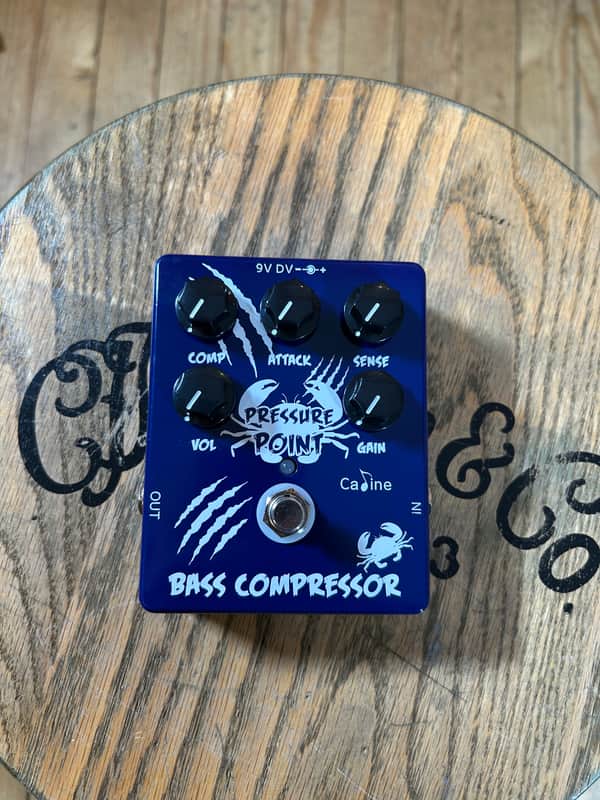

Caline Pressure Point CP-45 Bass Compressor

Compression:

This knob mixes the clean, unprocessed signal with the driven signal. Fully counter-clockwise keeps the sound clean, while fully clockwise provides only the driven sound. A blend in the middle offers a mix of both.

Hard Limiting:

The hard and soft limiter controls work in series – not parallel. Both parts of the limiter circuit are designed to catch peaks, prevent audio clipping, and preserve sonic integrity. The ratio of compression is 20:1

Soft Limiting:

The ratio of compression on the soft limiting circuit is 4:1. This will give a more musical compression sound for bass and you can dial in these two settings to taste.

Volume:

Adjusts the output level to your amp or recording interface.

Gain:

This knob adjusts the overall input volume of the pedal. Use it to push your signal into light overdrive.

Please note: The attack an release controls are set internally and cannot be altered with internal trim pots. Attack is set to 10 milliseconds and release to 100 milliseconds.

Features:

1.True Bypass design, with aluminum alloy casing

2. Power requirements: AC adapter 9v DC Center Negative

3. Current consumption: 50mA

4. Product Dimensions: 11.9x9.4x3.8cm

5. Weight:0.4kg
