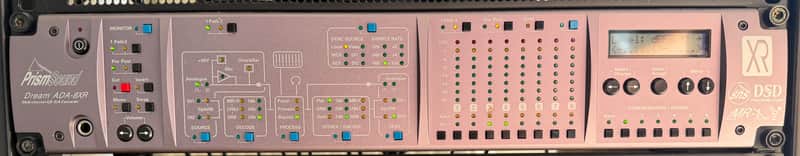

Prism Sound ADA-8XR modular AD/DA converter, with 4 I/O modules

Prism Sound ADA-8XR modular AD/DA converter, with 4 I/O modules

Very good condition, only used in a smoke-free home studio.

Includes the following 4 modules:

- 8C-AD Analogue Line Input Module
- 8C-DA Analogue Line Output
- 8C-AES AES3 Digital I/O Module
- 8C-PTHD Pro Tools|HDX Compatible Interface Module

The ADA-8XR is the audio industries converter of choice in the most exacting applications in music and sound recording, mastering, broadcast and post-production. Offering the cleanest and most transparent conversion available, the ADA-8XR has found a home in some of the most iconic recording facilities worldwide. Ideal for producers, engineers and songwriters wanting to produce the very best results when recording, tracking & overdubbing, mixing to stereo or surround, mastering and monitoring.

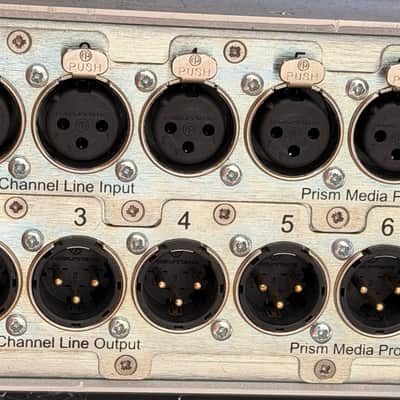

The 8C-AD Analogue Line Input Module type PREV039/4/2 provides eight electronically-balanced analogue input channels to the ADA 8XR, on eight female XLR connectors.

The 8C-DA Analogue Line Output Module type PREV039/5/1 provides eight electronically-balanced analogue output channels from the ADA 8XR, on eight male XLR connectors.

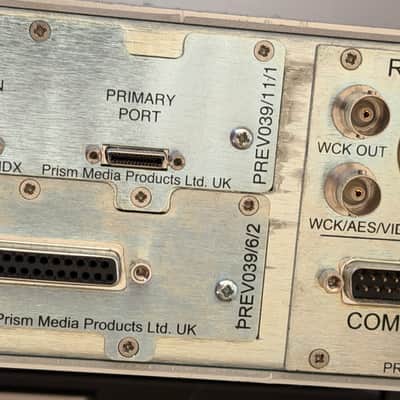

The 8C-AES AES3 I/O Module type PREV039/6/1 provides eight channels of digital audio input and output for the ADA-8XR on four AES3 carriers in each direction. The input and output sections of the module are completely independent – that is, they can be assigned to different Paths with different sample rates, Sync Sources and other options. The AES3 I/O module can be thought of as two modules in one – one input module and one output module.

The 8C-PTHD Pro Tools HDX compatible interface Module provides eight channels of digital audio input and output for the ADA-8XR in a form compatible with Digidesign Pro Tools|HD workstations.
