GENERAL
Model Number 2979411568
Series Artist Signature
Color Satin Black
Number of Strings 7
Orientation Right-Hand
ELECTRONICS

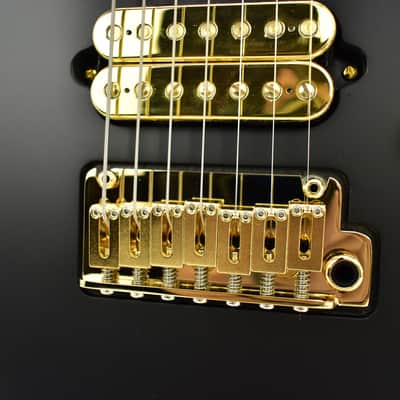

Bridge Pickup DiMarzio® The Tone Zone® 7
Neck Pickup DiMarzio® Air Norton™ 7
Pickup Color Gold
Controls Volume, Tone
Pickup Switching 5-Position Blade: Position 1: Full Bridge Pickup, Position 2: Both Inside Coils, Position 3: Bridge and Neck Pickup, Position 4: Full Neck Pickup (Parallel), Position 5: Full Neck Pickup
Pickup Configuration HH
BODY
Body Finish Satin
Body Shape Dinky™
Body Material Basswood
HARDWARE

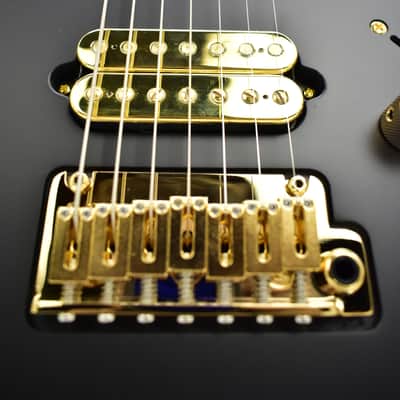

Bridge Gotoh® Custom 7-String 510 Tremolo
Hardware Finish Gold
Tremolo Arm Gotoh®
Tuning Machines Charvel®-Branded Die-Cast Locking
Pickguard None
Control Knobs Dome-Style
Switch Tip Black
Saddle Height Wrench Yes
NECK
Neck Material Maple
Neck Construction Bolt-On with Graphite Reinforcement
Neck Finish Satin
Neck Shape Angel Vivaldi Custom Neck Profile with Rolled Fingerboard Edges
Neck Binding None - Rolled Fingerboard Edges
Scale Length 25.5" (64.77 cm)
Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material Maple
Number of Frets 24
Fret Size Jumbo
Nut Material Graph Tech® TUSQ® XL
Nut Width 1.875" (47.6 mm)
Position Inlays Cascading Black Dot
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
Headstock Reverse 7-String Licensed Fender® Stratocaster®
Neck Plate None - 4-Bolt Sculpted Heel
MISCELLANEOUS
Strings Nickel Plated Steel (.009-.054 Gauges)
Strap Buttons Standard
Other Features Luminlay® Side Dots
