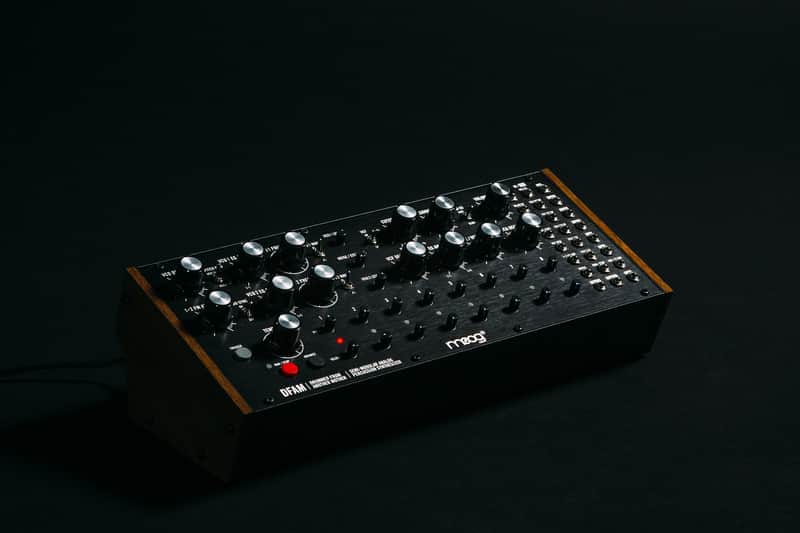

DFAM is the first addition to the Mother-32 family of synthesizers and
presents an expressive hands-on approach to percussive pattern creation.
It requires no patching, and absolutely no experience is needed for
human-beings of any age to quickly begin synthesizing new and unique
rhythmic compositions.
Activated by
an easy-to-use analog sequencer, DFAM’s emotive sound begins with a
white noise generator and two wide-range analog oscillators -
effortlessly transitioning between rhythmic pulsations, resounding bass
and resonant bells in an instant. DFAM’s distinctive voice is then
shaped by a classic Moog Ladder filter with two selectable modes: Low
Pass mode imparts impact and dimension to each sound it touches, while
High Pass mode opens the door to naturally expressive strikes, spikes
and clangorous accentuations. DFAM behaves much like a living
organism, reacting in different ways to different individuals. 3
dedicated analog envelopes work dynamically with the sequencer to ensure
that tribal toms breathe, industrial impacts evolve, and sonic chaos
can be created or subdued at the turn of a knob. Each DFAM ships
with a package of Moog patch cables that unlock access to the 24-point
modular patchbay. Use it to create new sounds or bizarre behaviors,
synchronize an unlimited number of DFAM and Mother-32 units together, or
fully integrate your analog instrument into a modular Eurorack
production environment. Through exploration and experimentation, the vast potential of this expressive analog instrument is realized.SOUND ENGINE: AnalogANALOG SEQUENCER: 8-Steps With Pitch and Velocity Per-StepSEQUENCER PANEL CONTROLS: Tempo, Run/Stop, Trigger, AdvanceSOUND SOURCES: 2 Oscillators With Square and Triangle Waveforms, 1 White Noise Generator, 1 External Audio InputFREQUENCY CONTROL: +/- 5 Octaves (10 Octave Range)MIXER: Level controls for Oscillator 1, Oscillator 2 and White Noise/External Audio InputFILTER: 20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder FilterENVELOPES:
VCO EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCF EG
w/ Voltage Controlled Decay and Bipolar Amount Control, VCA EG w/
Voltage Controlled Decay and Selectable Fast/Slow Attack TimePATCHBAY: 24x 3.5mm JacksPATCHBAY INPUTS:
Trigger, VCA CV, Velocity, VCA Decay, External Audio, VCF Decay, Noise
Level, VCO Decay, VCF Mod, VCO 1 CV, 1→2 FM Amount, VCO 2 CV, Tempo,
Run/Stop, Advance/Clock.PATCHBAY OUTPUTS: VCA, VCA EG, VCF EG, VCO EG, VCO 1, VCO 2, Trigger, Velocity, Pitch.AUDIO OUTPUT: ¼” TS Line / ¼” TRS Headphones (Shared Output Jack)INCLUDED POWER SUPPLY: 100-240VAC; 50-60Hz, +12VDC 1200mAPOWER CONSUMPTION: 3.0WEURORACK CURRENT DRAW: 230mA (+12V – from 10-pin header)EURORACK MOUNTING DIMENSIONS: 60HP (1”/26mm Module Depth)WEIGHT: 3.5lbsDIMENSIONS: 12.57”W x 4.21“H (with knobs) x 5.24“D
