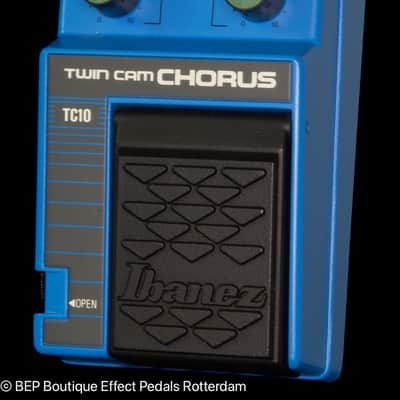

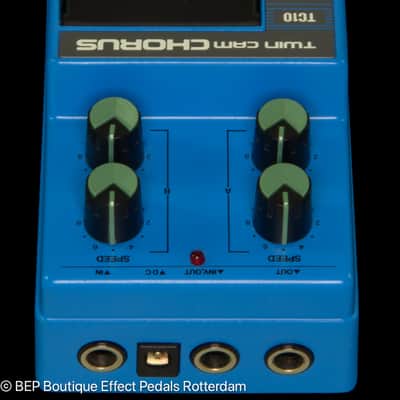

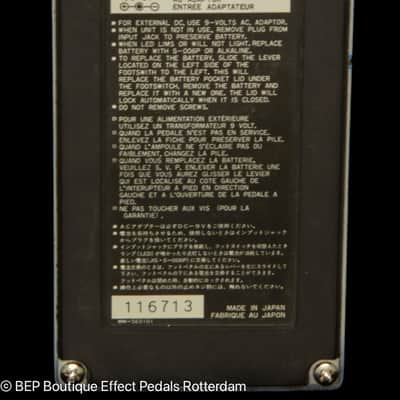

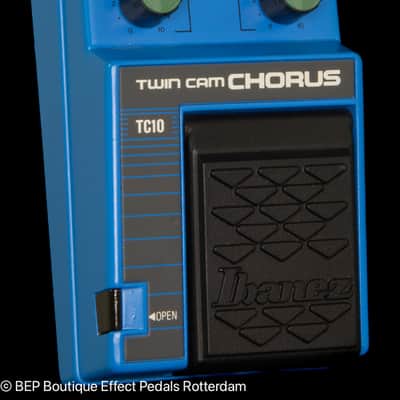

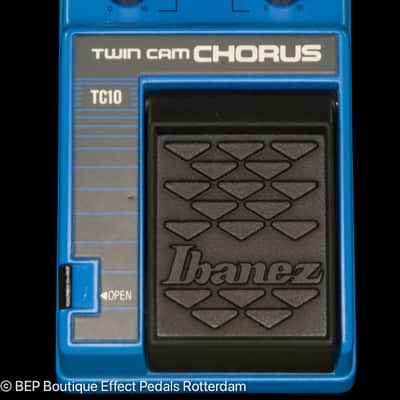

Ibanez TC10 Twin Cam Chorus 1986 Japan in mint condition with box.
This effects has been tested and is 100% original and in full working order.

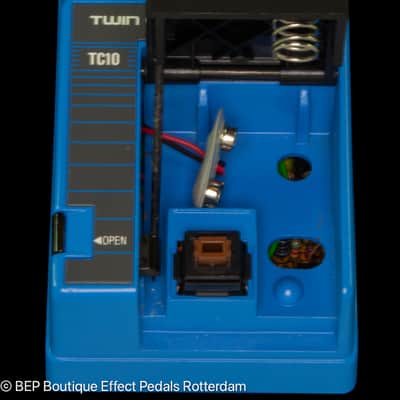

The battery clip has been taped together, which can be fixed by us if requested.

Ibanez TC10 Manual ;

Features
The TC10 can do everything that a regular stereo chorus can do, and then some. We have combined two individual sweep sections into one unit. Use Modulator "A" for true vibrato and high speed pitch bends and modulator "B" for normal chorusing effects. Use either separately or mix both together for truly unique sweeps and complex patterns. Step out even farther and tap into the normal and inverted stereo outputs for the ultimate in chorusing.

Use
Through the use of dual modulation, the TC10 allows deeper and more realistic chorusing than the SC10 without as much chance of offensive side effects such as phase shifts (causing amplitude drops at regular intervals), out of tune notes or chords and periodic sweeps unrelated to the tempo of the music. By modulating at 2 different speeds and depths simultaneously, less depth or width (change in delay time) is needed to create and obvious effect. The TC10 is the very best effect you can use to create a stereo image using two amps.

Specifications

• Input Impedance

• 500k Ohms

• Output Impedance

• < 1k Ohm

• Maximum Input Level

• +4 dBv

• Delay Time

• 4ms-9.3ms

• Speed Range

• A: 0.8Hz-8Hz, B: 0.3Hz-3Hz

• Equivalent Input Noise

• -100 dBv (IHF-A)

• Power Consumption

• 20 mA

• Power requirements

• 9 V DC

• Dimensions

• 125(D) x 70(W) x 54(H) mm

• Weight 410g

Power Series ( or 10 Series ) were produced from 1986 till 1996 and contained the following effect pedals.

Ibanez BC10 Bass Chorus
Ibanez BE10 Graphic Bass EQ
Ibanez BP10 Bass Compressor
Ibanez BS10 Bass Stack
Ibanez CD10 Delay Champ (analoge delay)
Ibanez CP10 Compressor/Sustainer
Ibanez DCF10 Digital Chorus/Flanger
Ibanez DDL10 Digital Delay II
Ibanez DDL20 Digital Delay III
Ibanez DL10 Digital Delay
Ibanez DML10 Digital Modulation Delay II
Ibanez DML20 Digital Modulation Delay III
Ibanez DPL10 Pan Delay
Ibanez DS10 Distortion Charger
Ibanez DSC10 Digital Chorus
Ibanez FC10 Fat Cat Distortion
Ibanez GE10 Graphic Equalizer
Ibanez LM7 L.A. Metal
Ibanez LS10 Dual Loop Selector
Ibanez MA10 Multi Amp Powered Mini
Ibanez MS10 Metal Charger
Ibanez MT10 Mostortion
Ibanez NB10 Noise Buster
Ibanez OT10 Octave
Ibanez PC10 Prime Dual Chorus
Ibanez PH10 Bi-Mode Phaser
Ibanez SC10 Super Stereo Chorus
Ibanez SF10 Swell Flanger
Ibanez SS10 Session-Man
Ibanez SS20 Session Man II
Ibanez TC10 Twin Cam Chorus
Ibanez TS10 Tube Screamer Classic
Ibanez WF10 Wah/Fuzz Pedal
Ibanez WH10 Wah Pedal
