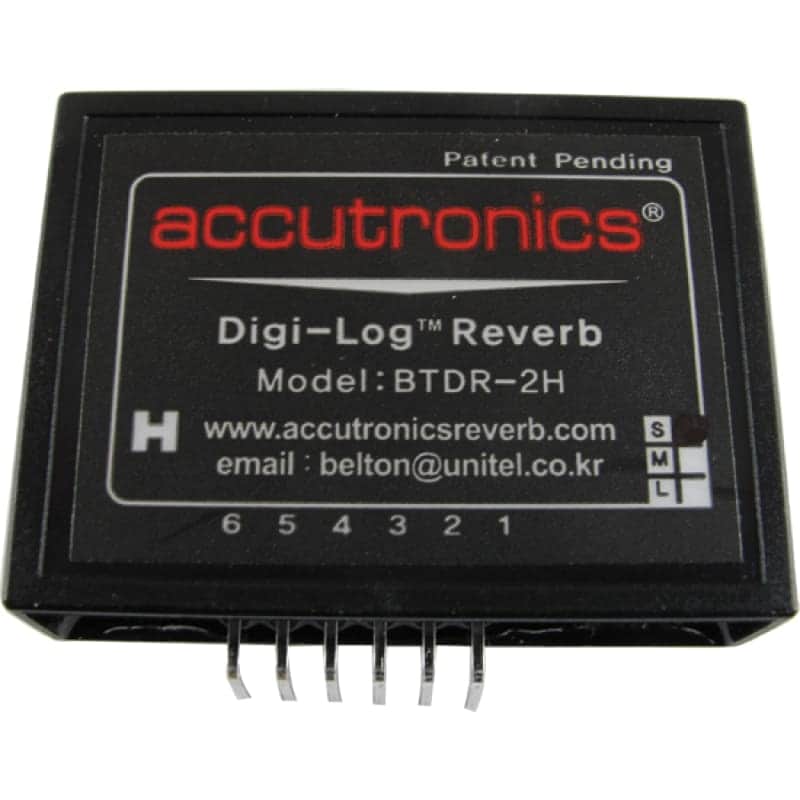

Reverb Module - Accutronics Belton, Digi-Log, horizontal, mini, Decay Length: Medium (2.5 seconds)

A great digital reverb sound that easily replaces a spring reverberation unit. Horizontal mount. Small package is half the size of the P-RBTDR-1H-X. For the vertical-mount, see P-RBTDR-2V-X.

Features:

• Small package is half the size of the P-RBTDR-1H-X
• Stereo outputs may be summed for mono operation
• Simple interface requires only input, output, +5V, and ground
• AC-coupled input and outputs require no external capacitors

Specifications:

Parameter Symbol Minimum Typical Maximum Unit Supply Voltage Vcc 4.5 5.0 5.5 V Supply Current Icc 60 100 mA Input Voltage Vin 1.5 Vpeak Voltage Gain -3 dB (each output) Residual Noise -77 dBV Input Impedance Zin 10k Ohm Output Impedance Zout 220 Ohm Operating Temperature -40 +85 C

Questions about reverb tanks? Please see our tech articles for more information.

Product Measurements

supply voltage (VCC): 4.5 V - 5.5 V, 5.0 V typical
Supply Current (ICC): ≤ 100 mA, 60 mA typical
Input Voltage (Vin): 1.5 Vpeak
Voltage Gain (AV): 0 dB (> 10 kΩ load)
Residual Noise: -72 dBV
Input Impedance (Zin): 10 kΩ
Output Impedance (Zout): 220 Ω
Operating Temperature (TJ): -40°C to 85°C
Decay Length: Medium (2.5 s)
