About this listing

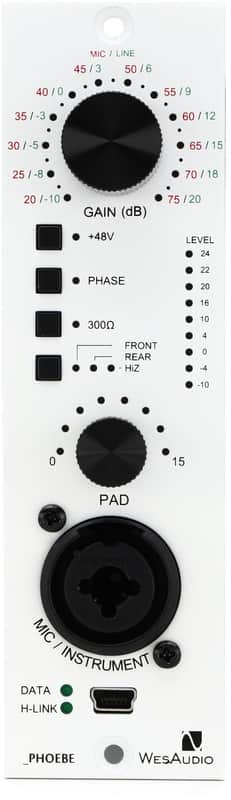

A 1073 style 500 series preamp, digitally controlled by your DAW!
Class A microphone preamplifier with digital recall. Features +28dbu headroom and dual Carnhill amp topology. Front panel TRS/XLR socket which supports HiZ instruments. Total recall and plugin control compatible with all DAWs.
Features
100% analog microphone/line preamp with +28dBu of headroom.
Class A fully analog - inspired by famous 1073 design based on
dual amp topology.
Microphone gain up to 75dB.
Carnhill Transformers (input and output).
Output signal metering on the front panel with clip detection.
Phantom power and phase invert control.
Switchable impedance input (1200/300Ohm).
All controls/analog settings are fully manageable via the
WesAudio GCon DAW plug-in.
IRON PAD - passive output attenuation circuit with 1 dB step
(after the output transformer).
Front panel XLR/TRS socket which supports - HiZ instrument input
(TRS), line input (XLR), microphone input (XLR).
Recallable signal source to be either back XLR Socket, or front panel
XLR/TRS socket.
500 series and ng500 (e.g. _TITAN) series compatible.
Total Recall and plugin control compatible with most DAWs.
Analog automation in DAW
Specifications
Line input impedance: 5.5k ohm bridging.
Noise: unity gain (better than -100dbU) Max gain +75dB
(better than -70dbU).
EIN: better than -120dB.
Freq response: +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz.
Distortion: 0.005% at 1kHz at +20dBu output.
Max power consumption: 170mA(+16V); 100mA(-16V)
Price€1,003.31
+ €44.73 Shipping
Only 1 left
Grab it before it's gone
