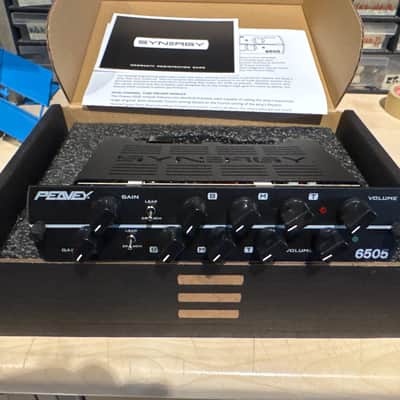

Synergy Peavey 6505 tube preamp module

The Peavey 6505 – and its numerically named predecessors – are some of history’s most recorded, gigged, and modeled high-gain amplifier heads. This Synergy module is the clone tube preamp of the legendary 6505 amp.

It is brand new and never used

Shipping worldwide

Description:

DUAL CHANNEL TUBE PREAMP MODULE

The Peavey 6505 module features 2 identical channels, each capable of nailing the amp’s impressive range of grind. Both channels’ Crunch setting (based on the Crunch setting of the amp’s Rhythm channel) goes from bluesy breakup to hard rock punch. Lead is all about the amp’s beloved red (Lead) channel, famous for its midrange articulation, low-end punch, and aggressive cut. Mirror the channels and use one as a lead boost or footswitch between old-school crunch and thick leads; either way, you get authentic, all-tube Peavey 6505 tone.

CATHODE SELECT FUNCTION:

he Peavey 6505 module features a three-position switch on the PCB, which allows you to configure the input tube bass response to match the original circuit of the selected module. This will affect the feel and tightness. Each amp designer has a specific combination of components that make up their input tube circuit. We have selected the three most popular combinations which you can access with this switch. The USA voiced modules typically use setting 1 (1.5K resistor and 22uf capacitor). British-style modules use position 2 (2.7K resistor and .68uf capacitor). The Peavey 6505, just like the Soldano and Vai modules use position 3 (1.8K resistor and 1uf capacitor). Of course, you can experiment and try any of the positions to see what you prefer.

Specification

All-tube preamp module base on the legendary Peavey 6505 amplifier

2 identical channels with Gain, Volume and 3-Band EQ

Lead or Crunch select switch per channel

2 x 12AX7 preamp tubes ensure rich harmonic performance

Easy to install and remove from Synergy preamp docks

Dual/Single switch allows the module to be used with older Egnater and Randall hardware

3-position cathode select switch allows you to configure the input tube bias setting.
