After Later Audio Waves(Ripples)

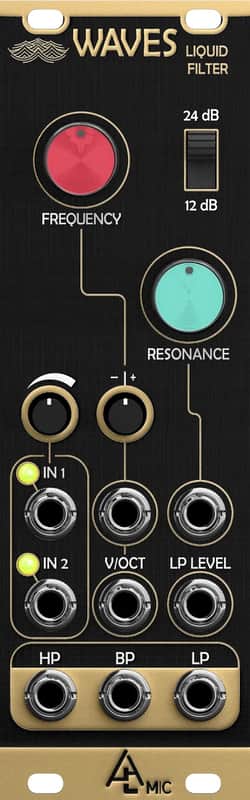

The Waves by After Later Audio is an analog multimode filter modeled after the excellent Ripples by Mutable Instruments.

Voltage-controlled filter with a 4-, and 2-pole low- and bandpass and a highpass with a variable slope all available at three outputs. The lowpass output can be combined with the integrated VCA (GAIN input and LP4/VCA output), which simplifies the creation of a very compact subtractive synthesizer voice.
Self-oscillation is possible in all modes and the LP4 output produces a clean sine wave. Unlike many 4Pole filters, the filter does not get quieter as resonance increases; this volume compensation adds a slight tonal coloration with the character of Roland SH/Jupiter filters.

There are two CV inputs for the cutoff frequency, one fixed at 1V/octave and one (FM input) with a polarizer. The resonance is also voltage controllable. Furthermore, another audio input can be used either as a distorting input or as a line-level input, as well as a highpass output and a switch for the slope of the lowpass filter.

Features:

• High-pass, band-pass and low-pass outputs.
• Switchable slope for the bandpass and lowpass outputs
• The slope of the high pass output varies with resonance
• The lowpass output goes through an internal VCA - the perfect output for the end of the subtractive chain!

HE:3

TE:8

Power consumption +12V: 35

Power consumption -12V: 35
