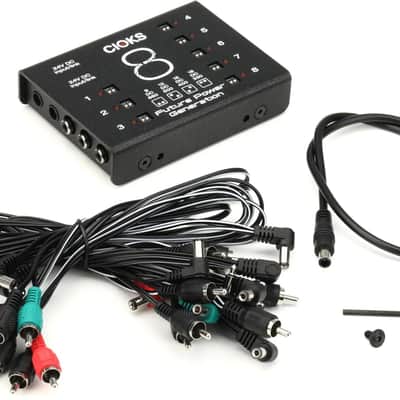

Multi-Output Expander Power Supply for Effects Pedals
1" Profile (25.4 mm) like Cioks DC7
Extremely low interference due to multi-stage filtering
8 Isolated DC outputs (6W each)
4 Selectable voltages at each output (output 1-8: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA)
Global overload status LED
Up to 12 pedals can be connected with the supplied flex cables
Weight: 340 g
Dimensions: 120 x 88 x 25.4 mm
Hardware for pedal train and template audio boards
1x Cioks 1015 Flex 1 Cable
3x Cioks 1030 Flex Cable
2x Cioks 1050 Flex Cable Type 1
1x Cioks 2050 Flex 2 Cable
1x Cioks 4050 Flex 4 Cable
1x Cioks 5050 Flex 5 Cable
1x Cioks 1035 Split Flex Type 1
1x Cioks 1533 3-way daisy chain Flex 1
1x 24V EIAJ-05 cable
1" Profile (25.4 mm) like Cioks DC7
Extremely low interference due to multi-stage filtering
8 Isolated DC outputs (6W each)
4 Selectable voltages at each output (output 1-8: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA)
Global overload status LED
Up to 12 pedals can be connected with the supplied flex cables
Weight: 340 g
Dimensions: 120 x 88 x 25.4 mm
Hardware for pedal train and template audio boards
1x Cioks 1015 Flex 1 Cable
3x Cioks 1030 Flex Cable
2x Cioks 1050 Flex Cable Type 1
1x Cioks 2050 Flex 2 Cable
1x Cioks 4050 Flex 4 Cable
1x Cioks 5050 Flex 5 Cable
1x Cioks 1035 Split Flex Type 1
1x Cioks 1533 3-way daisy chain Flex 1
1x 24V EIAJ-05 cable
