This product is a refurbished piece, the only issue with it is the MIC 1 Input has some buzz (extra noise)

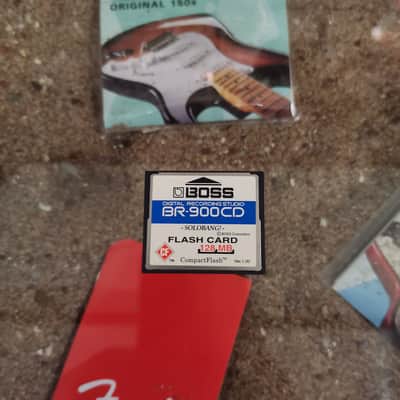

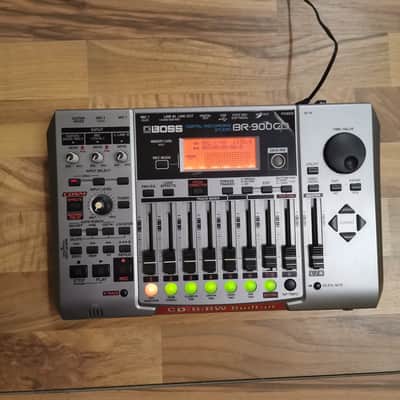

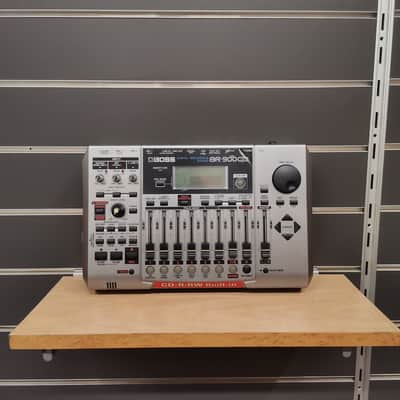

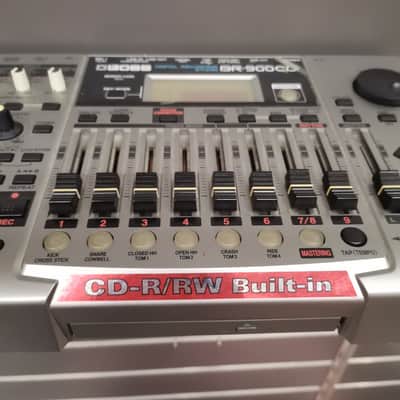

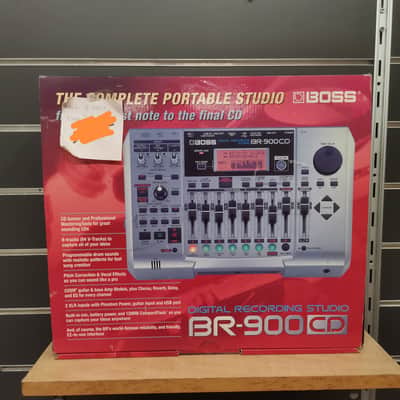

as you can see it's condition is excellent it has the cd reader, it's original power supply and a 128Mb Flash Card.

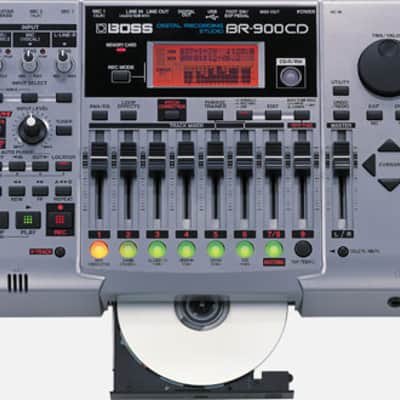

The BR-900CD is one of the world’s most popular, easy-to-use portable multi-track recorders. With Version 2, BOSS takes the best BR features and expands it with dozens of new COSM guitar-amp models, plus a super-cool new drum-editing software app and 500 minutes of recording time via 1GB Compact Flash.

Tracks

Track: 8
V-Track: 64 (8 V-Tracks per each Track)
* Up to 2 tracks can be recorded simultaneously, and up to 8 tracks can be played back simultaneously.

Useful Capacity

CompactFlash: 32 MB to 1 GB

Data Type

HiFi (MT2)
STANDARD (LV1)
LONG (LV2)

Signal Processing

AD Conversion: 24 bit delta-sigma Modulation + AF-AD (GUITAR/BASS, MIC), 24 bit delta-sigma Modulation (LINE, SIMUL)
DA Conversion: 24 bit delta-sigma Modulation
Internal Processing: 24 bit (digital mixer section)

Sample Rate

44.1 kHz

Frequency Response

20 Hz to 20 kHz (+1/-3 dBu)

Nominal Input Level (Variable)

GUITAR/BASS jack: -20 dBu
MIC (TRS balanced/XLR) jack: -40 dBu
LINE jack: -10 dBu

Input Impedance

GUITAR/BASS jack: 1 M ohms
MIC 1/2 jack: 1.0 k ohms (HOT-COLD)(TRS balanced/XLR), 1.0 k ohms (HOT-GND, COLD-GND)
LINE jack: 10 k ohms

Nominal Output Level

LINE OUT jack: -10 dBu

Output Impedance

LINE OUT jack: 2 k ohms
Headphones jack: 140 ohms

Recommended Load Impedance

LINE OUT jack: 20 k ohms or greater
Headphones jack: 32 to 100 ohms

Residual Noise Level

LINE OUT jack: -85 dBu or less (INPUT SELECT: GUITAR/BASS, input terminated with 1 k ohms, INPUT SENS: CENTER, IHF-A, typ., EFFECT: OFF)

Interface

DIGITAL OUT: Optical type
USB Connector

Display

16 Characters x 2 Lines + Approx. 100 icons (Backlit LCD)

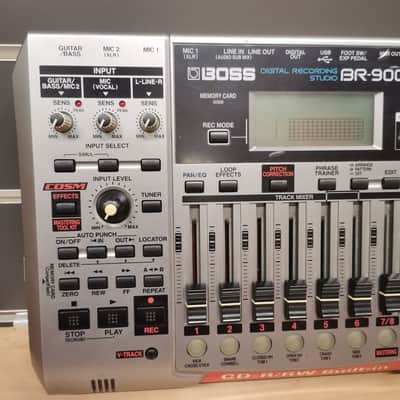

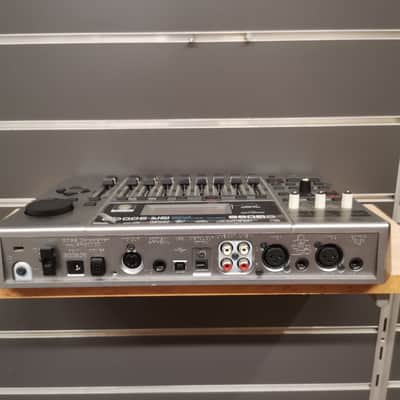

Connectors

GUITAR/BASS jack (1/4 inch phone type)
MIC 1 jacks (XLR type/TRS 1/4 inch phone type, Balanced)
MIC 2 jacks (XLR type, Balanced)
LINE IN jack L/R (RCA Phono type)
LINE OUT jack L/R (RCA Phono type)
DIGITAL OUT Connector (Optical type)
FOOT SW/EXP PEDAL jack (1/4 inch phone type)
MIDI OUT Connector
Headphones Jack (Stereo 1/4 inch phone type)

Power Supply

DC 9 V; Supply AC Adaptor (PSC series), Dry batteries x 6

Current Draw

900 mA (AC Adaptor)
200 mA (Dry Batteries)
* Expected battery life under continuous use:Alkaline: 4 hours(These figures will vary depending on the actual conditions of use.)

Accessories

AC Adaptor: PSC series
Demo Card
Owner's Manual

Options

Foot Switch: FS-5U
Pedal Switch: DP-2 (Roland)
Expression Pedal: EV-5 (Roland), FV-300L
Stereo Headphones: RH-200/RH-50

This item is sold As-Described

This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.

Promoted similar listings













Listed3 years ago
ConditionFair (Used)
Fair condition gear should function but will show noticeable cosmetic damage or other issues.Learn more
Brand
Model
  • BR-900CD Digital Recorder
Finish
  • Grey
Categories
Year
  • 2010
