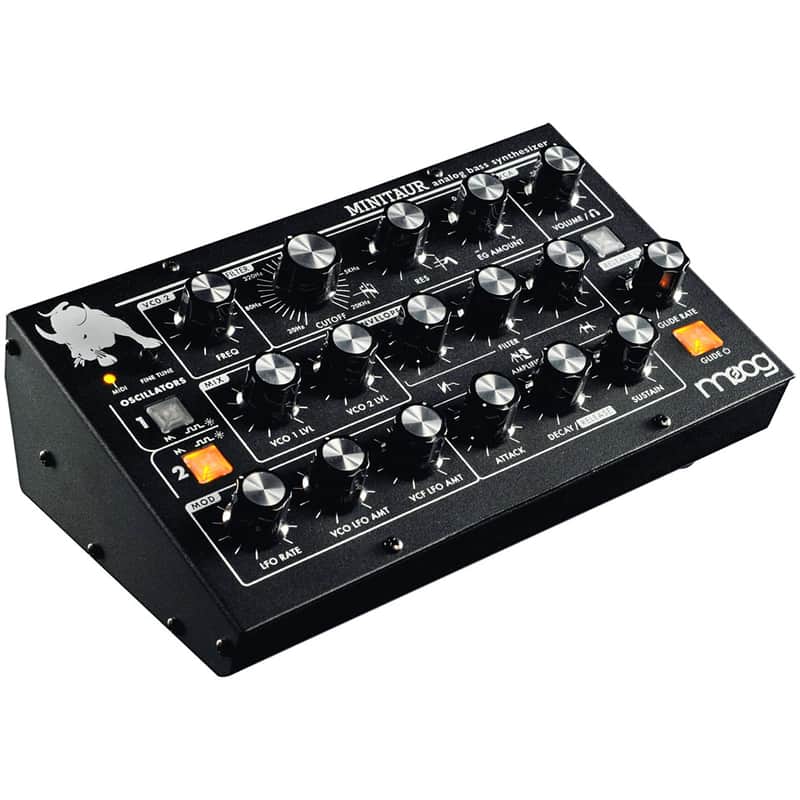

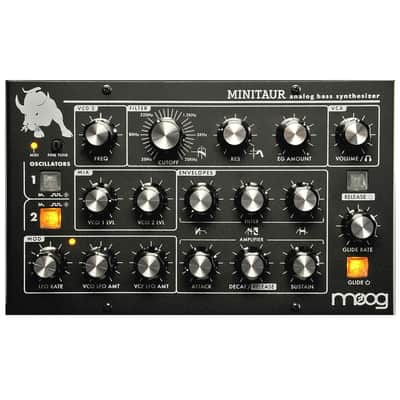

Measuring 8.5 x 5.25-inches the compact tabletop Moog Minitaur analog synth module is the ultimate bass module and is based on Moog's Taurus 3 synth. The Minitaur can be controlled by both MIDI from your controller keyboard or sequencer and CV control from other CV-equipped synth gear yet its monophonic audio signal path is 100% analog. You can even route external audio through the Minitaur's filter and modulation sections. The Minitaur provides one-knob-per-function control over every aspect of the sound with no screens or menus. The Minitaur analog synth module includes two oscillators with square and sawtooth waveforms, and the Moog filter section.

The Minitauer synthesizer features two oscillators with Sawtooth and Square wave-shapes for each VCO to recreate the sounds of the original Taurus synth, create new sounds with square waves or do a combination of both. There is also a Moog Ladder Filter with adjustable resonance, two Minimoog-style ASDSR Envelope Generators for VCF and VCA, MIDI-syncable LFO with control for Rate, VCO LFO and VCF LFO amount. Other features include MIDI and MIDI over USB, as well as 1/4-inch unbalanced audio input so you can process external audio through it's mixer and filters.

• Compact analog synth module in a desk-top design that's ideal for live performances and portable production
• Dual-oscillators with Moog filter section
• Control via MIDI, CV, or USB
• Sawtooth and square-wave oscillator waveforms for creating bass, lead, and effects sounds
• One knob per function interface
• Two oscillators with Sawtooth (Original Taurus) and Square wave-shapes for each VCO
• Recreate sounds of the original Taurus with sawtooth waves, or create new sounds with square waves, or combination of both
• 2 Mixer VCAs for VCO levels control of Oscillators 1 and 2
• Moog Ladder Filter with adjustable resonance delivers Taurus 1 and 3 bass and boom
• Two Minimoog style ADSR Envelope Generators for modulating VCF and VCA
• Decay and Release segments are controlled by the Decay knob, while the Release segment is enabled or disabled via Release On/Off switch
• MIDI-syncable LFO with controls for Rate, VCO LFO Amount, and VCF LFO Amount
• MIDI and MIDI over USB
• Analog Control inputs for Pitch, Filter, Volume and Gate
• Use an EP2 or CV to connect and control MInitaur with everything from Modulars to Moogerfoogers
• External audio input for processing external audio through the Mixer and Filter section
• 1/8-inch Headphone output
• Heavy-duty construction

• Bass-Synthesizer
• Synthesis: Analog
• Keyboard: None
• Pedal/Controller Connection: Pitch CV, Filter CV, Volume CV, Gate
• USB / MIDI: MIDI In, USB
• Other Connections: 1 x Headphones, Line out, Line in
• Colour / Finish: Black
• Bottom 6: Analog bass synthesizer

• Compact analog bass synthesizer
• Monophonic Analog Desktop Synthesizer Module with Two Oscillators, Saw and Square Waveforms, and MIDI/CV/USB-MIDI Control Inputs
