Each pedal from the AUTO Series has 2 modulation sources that you control with your performance. The DYNAMICS follows the volume nuances of your playing, it captures the character of your picking style and your instrument's loudness and decay. The PITCH tracker detects note choices, bends, and vibratos. You wield the power to route these modulations to any of the four effect knobs and set the parameters in motion.

Customize the modulation with the DYNAMICS and PITCH knobs along with dedicated mode switches. Adjust the DYNAMICS decay time, introduce glide to PITCH tracking, and tailor the response curves to suit your playing style and the desired effect.

Each of the primary effect knobs is paired with a corresponding smaller modulation amount knob, also known as an attenuverter. This allows you to precisely dial in the modulation amount and the direction for each effect knob independently. Imagine the dynamic possibilities - a loud strum on a guitar can turn one knob clockwise significantly, while only slightly nudging another knob in the opposite direction.. Explore the subtleties, from gentle parameter shifts to sweeping, full-parameter transformations.

You can play a note to set it as the center pitch by holding both footswitches. For instance, choosing A3 as the center pitch means that the PITCH modulation will activate only when surpassing A3. DYNAMICS features an adjustable volume threshold - modulation occurs only with notes louder than the set threshold.

Specifications

- Stereo and mono signal processing. Stereo routing is possible both using regular TS mono cables or TRS stereo cables

- Switchable input level: INSTRUMENT, LINE or EURORACK

- Switchable LEVEL knob functionality: INPUT LEVEL + DRY SOUND, INPUT LEVEL + KILLDRY or DRY/WET MIX

- TRACK input for routing an auxiliary signal for controlling the modulation

- TRACK output for passing the TRACK input further or for dry signal output

- MIDI/CLK input for MIDI clock or analog trigger sync for time base effects

- 9V DC center negative power inlet, power supply of at least 250 mA is required

- USB-C input for MIDI and future updates

- 4 Patch Cables included in the package

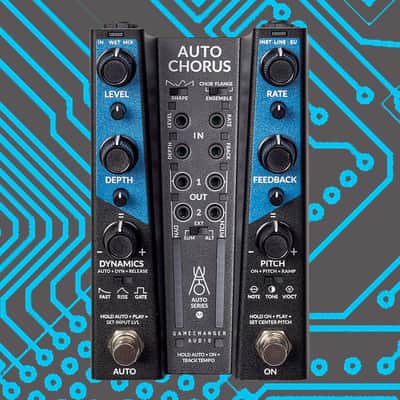

Features of AUTO Chorus

3 algorithms: CHORUS, ENSEMBLE and FLANGE

4 streamlined controls: LEVEL, DEPTH, RATE, FEEDBACK

3 shapes: SAWTOOTH, SINE, RAMP

Examples of MOD Chorus

Delayed vibrato.

Resonant chorus.

Accelerating jet engine.
