Up for sale a Radial Engineering Highline Passive Line Isolator Compact & Pedalboard Friendly!  We are an Authorized Dealer of Radial Engineering!  This item is Brand New / Never Displayed and it comes with the Full Manufacturer's Warranty*.  Unit comes in its Original Packing.

-

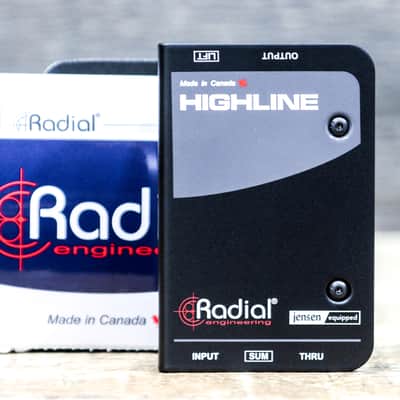

RADIAL ENGINEERING HIGHLINE

Passive Line Isolator

From Pedal to Performance

The Highline is a passive line isolator designed to connect guitar and amp modelers to a mixer for live touring and recording applications, featuring a premium Jensen transformer for exceptional audio performance.

Elevate your tone

The Highline is a line isolator that is specifically designed to address the needs of instrumentalists who use amp modelers, allowing them to seamlessly connect to a PA or a recording system while maintaining their full signal integrity with no added noise or distortion. The Highline features a premium Jensen 1:1 transformer, which retains the full volume level from the pedalboard to the PA, while also providing galvanic isolation that eliminates ground loop noise for a clean and noise-free signal. The balanced output of the Highline allows for long cable runs to the PA, and it also blocks phantom power so it never reaches the pedalboard. The Highline can also accept stereo inputs and sum them down to mono with the use of the Sum switch.

Designed for amp modelers

Guitarists and bassists who use utilize amp modelers on their pedalboard have a unique set of problems: While amp sims can produce line-level outputs, they often still use 1/4" unbalanced connectors that won't support long cable runs without degrading the tone of the instrument, and they are particularly susceptible to noise from ground loops when connected directly to the PA. The Highline addresses these issues by inserting a 1:1 transformer into the signal path, which provides isolation to reduce noise, protects against phantom power, and keeps the signal at line level for direct connection to the PA system.

-

FEATURES:

- Compact & pedalboard friendly design

- No loss of signal strength or tone when connecting to a mixer

- Radial’s renowned reliability & build quality

- Precision-wound Jensen Transformer

- Ability to sum stereo sources down to mono

-

SPECIFICATIONS:

Audio circuit type : Passive, transformer based

Transformer : JT-11-YMPC

Number of channels :  Single channel (mono)

Frequency response : 20Hz ~ 20KHz (± 0.05dB)

Total harmonic distortion : <0.03% from 20Hz ~ 20kHz / -10dB, 0.0002 @1kHz / -10dB

Phase Deviation : ±0.3° from 20Hz ~ 20kHz / -10dB

Signal to Noise : 110dB

Ground lift

Extras : Input Sum, Thru Sum

Construction : 14-gauge steel outer shell & 16-gauge chassis

Finish : Durable powder coat

Size (L x W x D) : 4.25" x 2.75" x 1.75" (108mm x 70mm x 44mm)

Shipping size (L x W x D) : 6.5" x 4" x 3" (165mm x 102mm x 76mm)

Power : Passive, no power required

Conditions : For use in dry locations only between 5°C and 40°C

Warranty : Radial 3-year, transferable

-
