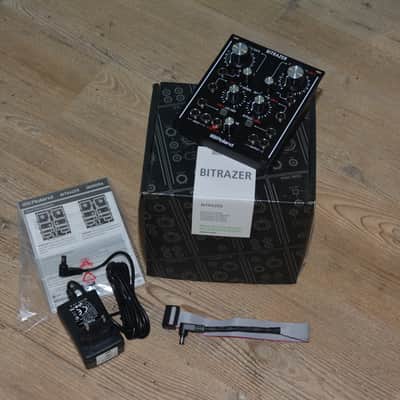

This unit is practically Brand New. It was opened and tested after purchase, then once more to Photograph.

An excellent bitcrusher effects unit suitable for placement in a eurorack system or used as a

standalone unit. It can be programmed with additional vitual modules patched into the unit via

software under the hood vastly increasing its digital signal processing capabilities. I do not want to

part with this item, but due to the cost of housing renovations I need to sell it to fund that. For more

information concearning its capabilities please see the Roland website

(

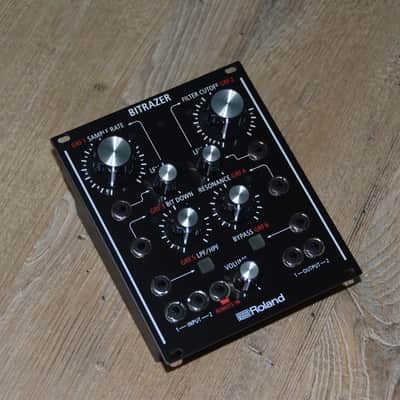

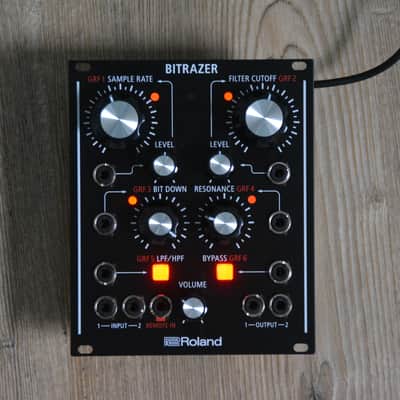

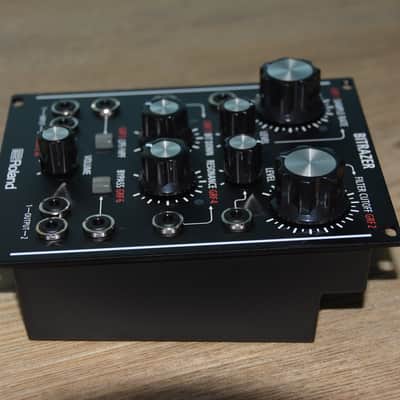

BITRAZER is a unique modular effect combining intense bit and sample rate crushing effects and

unprecedented control and flexibility. Able to be used as a tabletop unit or as a Eurorack module,

and with an array of CV/Gate inputs, this compact 21 HP unit has a wide range of uses from studio

production to live performance. Not only for modular synth users, BITRAZER is perfect for

keyboard players, guitarists, DJs or any adventurous musician looking to expand their sound.

Carefully crafted in Japan, BITRAZER has large, ultra-smooth controls with over 16 million steps

of resolution and is fully re-programmable via computer or tablet.

• Intense bit and sample rate destruction

• CV/Gate parameter control including sample rate, bit depth, and filter

• Tabletop unit or 21 HP Eurorack module using AC adaptor or Eurorack power

• 24-bit knobs with over 16 million steps of resolution

• Re-programmable via Mac, PC, iOS, Android application

• 15 patchable submodules, expandable with free updates

• 2 inputs and 2 outputs with dual-mono or stereo capability

• AIRA Link compatible

• 24bit/96kHz audio interface

• Carefully crafted in Japan

BITRAZER is an intense bit and sample rate crusher effect that can add edgy character or create

total sonic mayhem. Using the large comfortable controls or standard 1/8" patch cables, you can

independently control the sample rate, filter type, cutoff, resonance, bit depth, and signal bypass.

Both the sample rate and filter cutoff parameters have input level controls for adjusting the

modulation range when controlled from an external source. Two inputs and two outputs make

BITRAZER a stereo-capable, 24bit/96kHz audio interface for Eurorack systems and AIRA Link

USB compatibility gives it single-cable, plug and play connectivity with the MX-1 Mix Performer.

While it sounds great out of the box, you can fully customize BITRAZER’s internal signal path by

re-patching its array of virtual sub-modules via a custom application that works on Mac and PC as

well as iOS and Android devices. Submodules are re-patched through a simple and intuitive drag

and drop interface that even lets you choose which parameters are assigned to the high-resolution

“GRF” knobs. You can reprogram BITRAZER in realtime via USB connection or save and recall

patches with a simple audio signal. You can even share patches with other BITRAZER users.

BITRAZER includes 15 virtual sub-modules with more available through future expansion such as

LFO, ADSR, NOISE, SAMPLE & HOLD, RING MOD, FILTER 6 dB, FILTER 12 dB, TONE,

AMP, MIXER, STEREO MIXER, CURVE CONV, GATE DIVIDER, TRIG TO CV DELAY TIME,

MIDI CLOCK TO GATE.
