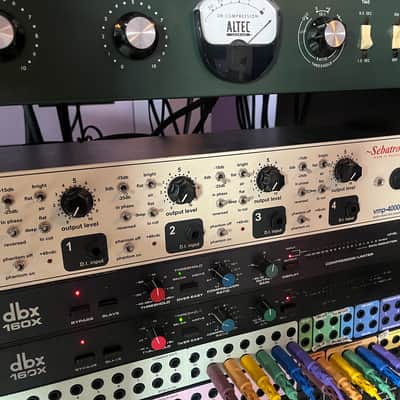

Sebatron vmp-4000e 4-Channel Tube Mic Preamp
Rare Find
These don't show up often
Our users rate Reverb
In great condition, only used in studio. New tubes recently installed.
Multivoltage, switchable from 120v to 240v.
Shipping worldwide.
SPECIFICATIONS
Circuit Topology : Single Ended Class A 12AT7 Triode Gain Stage, Discrete Solid State Class A balanced output
Input : Transformer Balanced Microphone Input - Unbalanced Direct Input
Pad : Variable Negative Feedback control, -15dB and -25dB positions
Phantom Power : +48 vDC
Maximum Gain : over 60dB
Maximum Output Level : Balanced XLR Pin 2 hot :+28dB into 600 ohms | Balanced TRS jack : +22dB
Noise : -120dB at 60dB Gain
Frequency Response : (-25dB pad 'air' activated) 10hz-110khz +/-2db
Weight : 4.5kg
Dimensions : 482mm x 190mm x 88m
Power : Externally switchable 110/120/220/240 VAC for global useage.

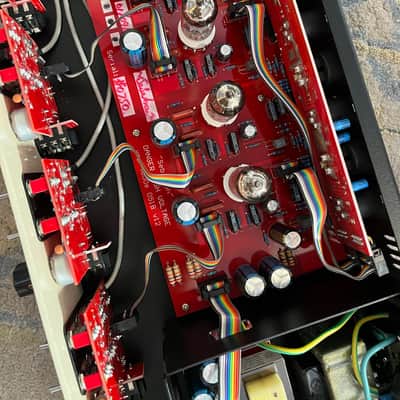

Build : Chassis is 1.2mm mild steel powder coated 'Textured Black'. Front Panel is 2.5mm mild steel. Single sided printed circuit boards.
Topology : Topology is all discrete and Class A Valve and Solid State signal path running on +300V and +60V rails respectively.
Circuitry : Class A Discrete and low noise. Dual Triode 12AT7/ecc81 and High Voltage Silicon Transistors.
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
