Blackmagic Design DeckLink Studio 4K
Our users rate Reverb

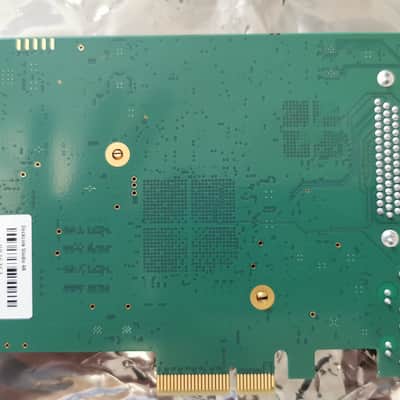

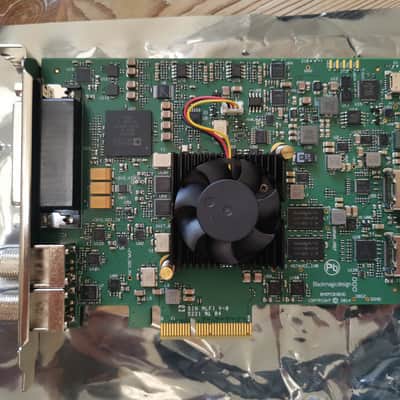

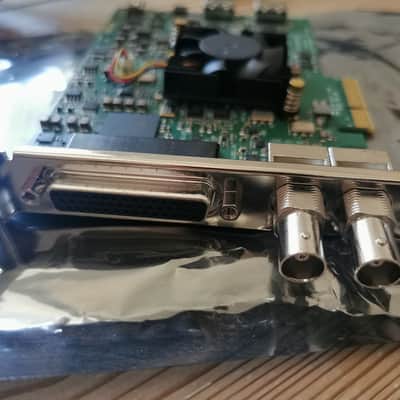

Selling this Blackmagic design DeckLink 4K PCIe card - pulled out of a working system.

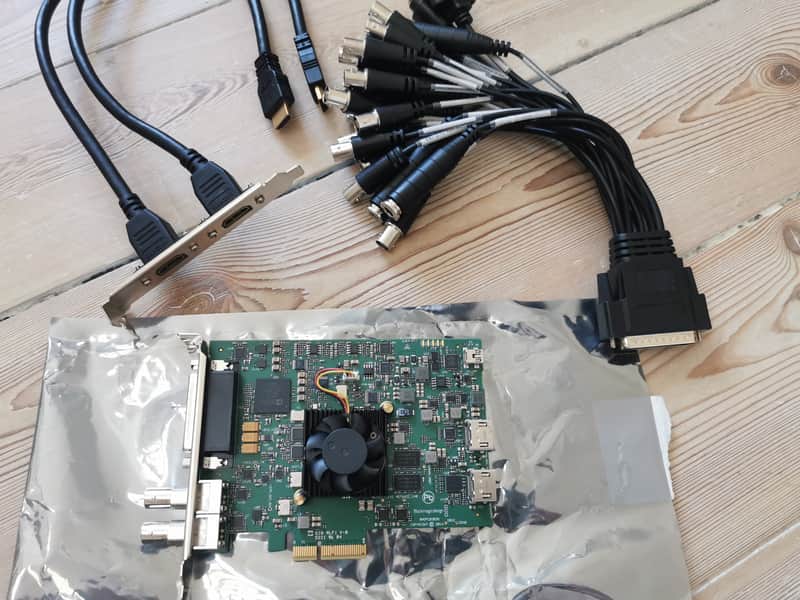

- Including breakoutcable and HDMI I/O backplane
Note: Shipping within the European Union only.
ConnectionsSDI Video Inputs
1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
SDI Video Outputs
1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
Analog Video Inputs
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD.
Analog Video Outputs
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD.
Analog Audio Inputs
4 Channels of professional balanced analog audio via 1/4 inch jack connectors.
Analog Audio Outputs
4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs.
AES/EBU Audio Inputs
2 Channels unbalanced with sample rate converter.
AES/EBU Audio Outputs
2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature.
SDI Audio Inputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
SDI Audio Outputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
HDMI Video Inputs
1 x HDMI type A connector.
HDMI Video Outputs
1 x HDMI type A connector.
HDMI Audio Inputs
8 Channels embedded in SD, HD, 4K.
HDMI Audio Outputs
8 Channels embedded in SD, HD, 4K
Sync Input
Tri-Sync or Black Burst.
Device Control
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface
PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | 7 days ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand |
|
| Model |
|
| Categories | |
| Year |
|
| Made In |
|
| Computer Connectivity |
|
| Bus-Powered |
|
