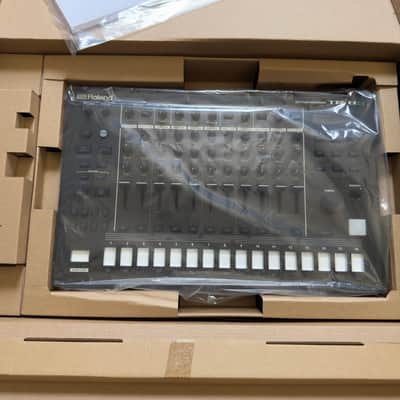

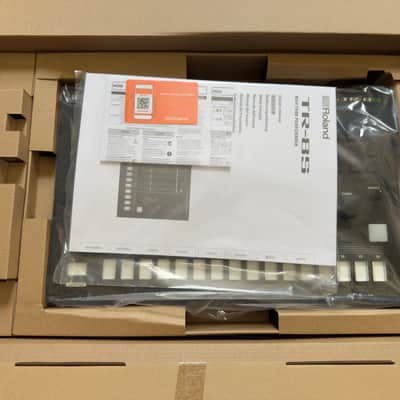

Mint Open Box Roland TR-8s. Brand New & unused except for unit being opened for pictures.

Born of the most famous and influential drum machines ever made, the TR-8S combines the best of its Roland heritage with modern production techniques and comprehensive sound design. The result? The most complete drum machine to date—a forward-thinking, performance-tuned instrument unlike any other. Build your dream kit from the most iconic drum sounds of all time, otherworldly FM sounds, and the finest selection of samples from our vast library—or go even further by importing your own custom samples. Tap, tune, and tweak with hands-on controls and production tools that make your patterns move and groove. And why keep this kind of percussive power confined to the studio?

SPECIFICATIONSUser Drum Kit128User Patterns128Step Sequencer11 instrument parts and 1 exclusive part for trigger out
16 steps per 1 variation
8 (A – H) variations per 1 pattern
2 Fill-in patterns per 1 patternINST tone(Tone can be assigned to each 11 instrument parts freely.)
BASS DRUM: 11 ACB tones
SNARE DRUM: 8 ACB tones
TOM: 15 ACB tones
RIM SHOT: 3 ACB tones
HAND CLAP: 5 ACB tones
HI HAT: 8 ACB tones
CYMBAL: 8 ACB tones
PERCUSSION: 23 ACB tones
FM: 72 tones
PRESET SAMPLE: 300 tones or greater
USER SAMPLE (imported form SD CARD for playback): Available format: WAV, AIFF
Total time for all samples: Approximately 600 sec (at 44.1 kHz, mono)
* The maximum length of a single audio file that can be imported is approximately 180 seconds (at 44.1 kHz).EffectsINST FX: THRU, HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR, TRANSIENT, COMPRESSOR, DRIVE, COMP+DRV, CRUSHER
REVERB: AMBI, ROOM, HALL1, HALL2, PLATE, MOD, HA-DOU
DELAY: DLY, PAN, TAPE ECHO, PITCH SHIFT
MASTER FX: HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR, TRANSIENT, TRANSIENT2, COMPRESSOR, DRIVE, OVERDRIVE, DISTORTION, FUZZ, CRUSHER, PHASER, FLANGER, SBF, NOISE, FATTENER, VINYL SIM
Other: SIDE CHAIN (for EXT IN), SCATTER (as one of AUTO FILL IN function)Display16 characters, 2 line (backlit LCD)
7 segments, 4 characters (LED)External StorageSD Card (SDHC supported) for backup/restore function and import sample dataConnectorsPHONES jack: Stereo 1/4-inch phone type
MIX OUT (L/MONO, R) jacks: 1/4-inch TRS phone type
ASSIGNABLE OUT/TRIGGER OUT (1 – 6) jacks: 1/4-inch phone type
EXT IN (L/MONO, R) jacks: 1/4-inch phone type
TRIGGER OUT jack: Miniature phone type
MIDI (IN, OUT) connectors
USB port: USB type B (Audio, MIDI)
DC IN jackPower SupplyAC adaptorCurrent Draw2,000 mAAccessoriesAC adaptor
Owner's manual
Leaflet “USING THE UNIT SAFELY”
