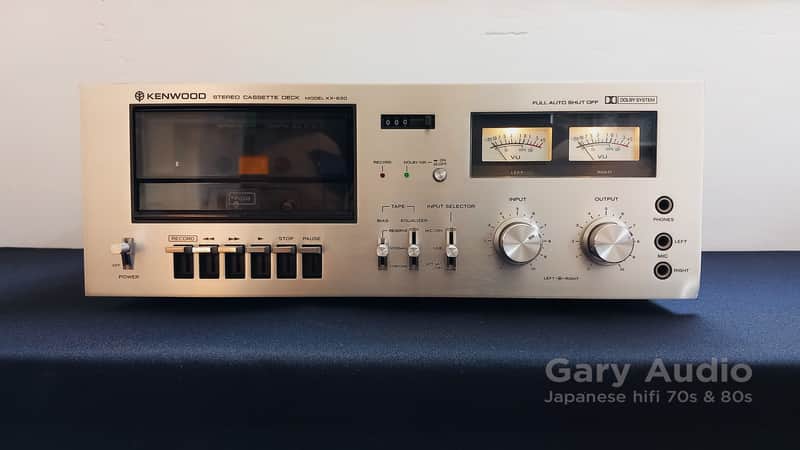

Kenwood KX-630 Stereo Cassette Tape Deck KX 630 Japan 1977

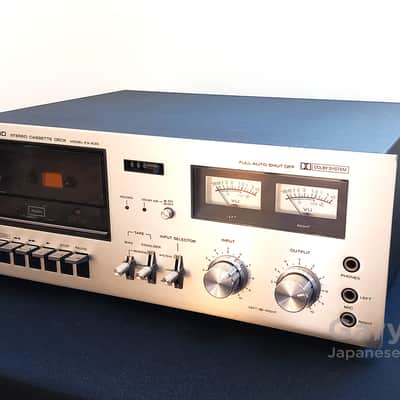

A classic piece of the KX-series, the Kenwood KX-630 is a classic stereo cassette deck from 1977. It is an excellent playback device with nostalgic aluminum faceplate and with the special feature of L / R output levels.

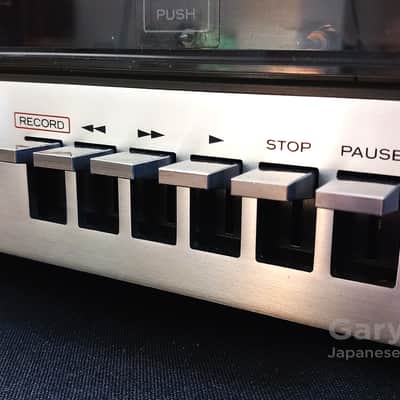

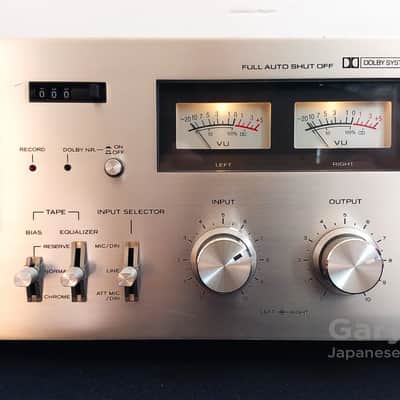

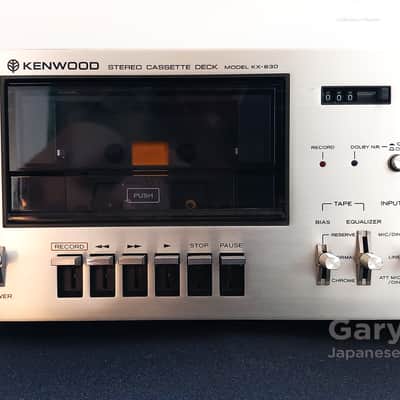

The deck has surprisingly warm and robust sound quality, which makes it a fun vintage listening station. The KX-630 features clear, tactile controls and useful L/R channel recording levels. The output volume level control is a very useful feature. The vintage brushed aluminum chassis brings a 70s charm to any audio setup. It’s a lovable deck with an original wow and flutter (W&F) specification of 0.05% WRMS.

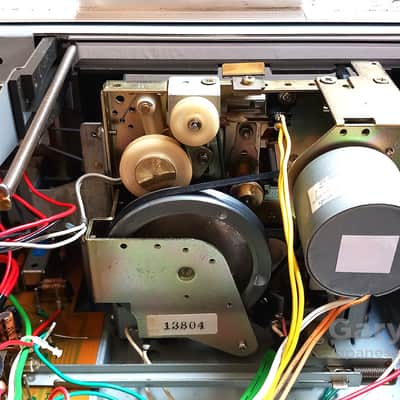

This device was kept in excellent condition. The mechanism is spot on, playback and recording are smooth and stabile. The only flaw is the slightly ragged bottom-right edge. I kept it as it is without torturing the front panel.

Specifications

Manufacturer: Kenwood

Model: KX-630

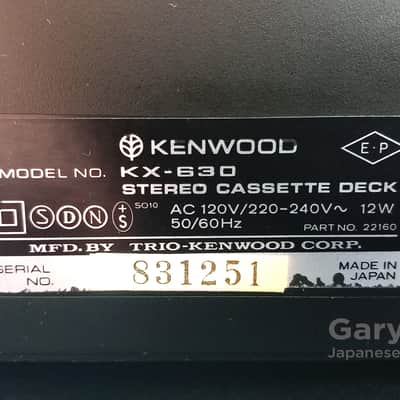

Serial number: S31251

Type: Stereo cassette deck

Years of manufacture: 1977 - 1979

Made in: Japan

Color: Silver

Power consumption: 12 watts

Dimensions: 430 x 159 x 349 mm (WxHxD)

Weight: 6.5 kg

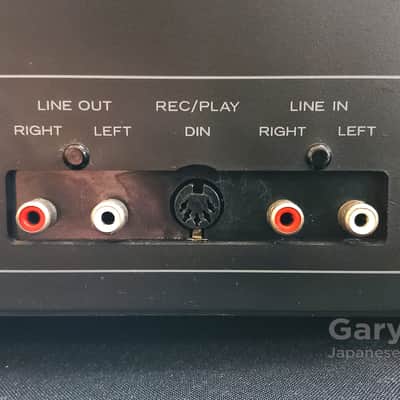

Connections

Number of inputs:

- Line In: 77,5 mV, 80 kOhm

- Line In DIN: 77.5 mV, 80 kOhm

- Microphone 0.15 mV, 10 kOhm

Number of outputs:

- Line Out: 775 mV, 100 kOhm

- Line Out DIN: 775 mV, 20 kOhm

- Headphones: 48.9 mV, 8 - 16 Ohm


Technical Data

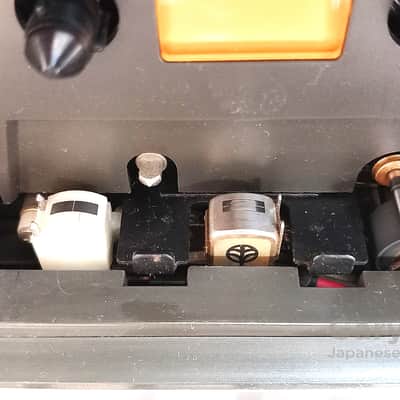

Audio heads: 2 (head for recording and playback, ferrite head for erasing)

Motors: 1 (servo controlled DC motor)

Synchronisation fluctuations: 0.07

Tape types: Normal, Chrome, Ferrochrome

Frequency response:

- Normal: 30 - 14'000 Hz

- Chrome: 30 - 16'000 Hz

Distortion factor: < 1.0 %

Signal-to-noise ratio: 54 dB chrome, with Dolby 64 dB

Noise reduction: Dolby-B

Premagnetization frequency: 85 kHz

Rewind time: 82 seconds for C-60

Special Features

Switchable premagnetization

Equalization switchable to tape types

Microphone mixer

Output level control
