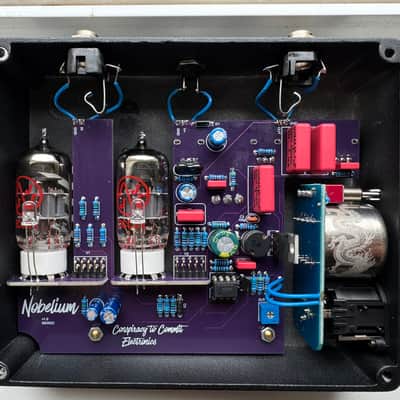

This is a hand-built Nobelium Preamp, a faithful clone of the legendary Noble tube preamp/DI, built using the PCB from Conspiracy to Commit Electronics (C2C / SushiBox).

The Nobelium is a low-noise, studio-grade clean tube preamp and DI with a wide, musical frequency response that works beautifully for bass or guitar. The EQ is boost-only (Bass / Treble), so the preamp is effectively flat with all controls off, and it includes a switchable high-pass filter to tame low-end rumble when needed.

For the DI section, this build uses a C2C / SushiBox Unagi transformer, delivering a full, authoritative transformer-coupled XLR output with a ground-lift switch. The DI level can be adjusted internally via the blue trim-pot.

Tubes

• 2× JJ 12AU7 / ECC82 tubes
• Fully warmed, quiet, and tested

Components

• Premium WIMA film capacitors used throughout the audio path where applicable
• Quality components selected for reliability, low noise, and consistent performance

Power & Operation

• Powered by a standard 9V center-negative pedalboard power supply
• Internally steps up to high voltage for proper tube operation
• Draws ~500–565 mA once warmed up
  (Please ensure your power supply can provide sufficient current. Do not exceed 9V.)

Build & Layout

• Hand-wired and assembled to a high standard
• Quality components throughout
• Input, Output, and DC Power on the top

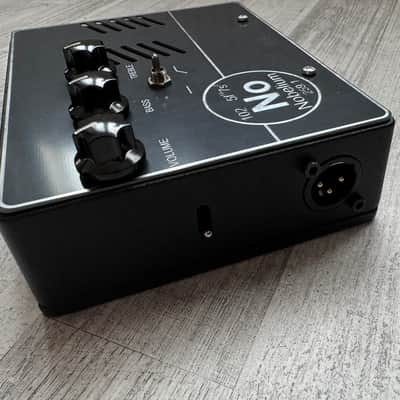

• Transformer-coupled XLR DI with ground lift on the side

⚠️ Important: This is a high-voltage tube device. Do not open the enclosure while powered. The only user-adjustable control inside is the DI level trim-pot, which should be adjusted only when the unit is powered off and unplugged.

With original Noble preamps commanding very high prices and long wait times, the Nobelium offers the same clean tube warmth, depth, and harmonic richness at a fraction of the cost—without compromise.

A fantastic choice for studio or live use if you’re after that unmistakable Noble-style tone.
