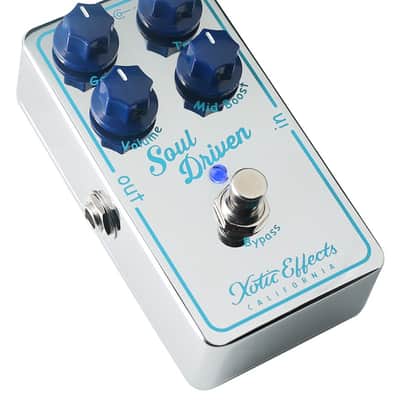

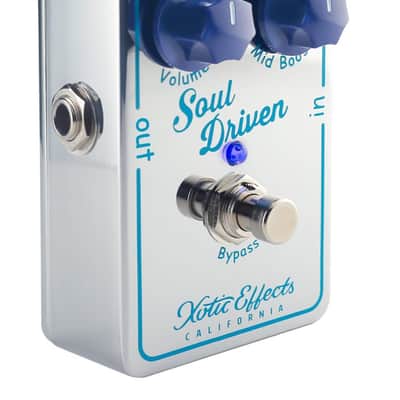

XOTIC Effects Soul Driven - Overdrive / Boost

The XOTIC Effects Soul Driven Overdrive/Boost captures the feel, touch response, and tonal richness of a finely tuned tube amplifier in a compact, road‑ready pedal. Designed to add clarity, dynamics, and musical midrange presence, it works equally well as a subtle clean boost or a rich, singing overdrive for electric guitar.

Key Features

• Four‑knob layout:
• • Gain – sets the amount of drive
  • Volume – controls overall output level
  • Tone – shapes treble response from tight lows to cutting highs
  • Mid Boost – adds pronounced midrange grit and presence
• True bypass switching preserves your natural signal when the pedal is off
• Internal Bass Boost DIP switch gives up to +6 dB at 125 Hz for thicker low end when needed
• Blue LED status indicator for clear on/off confirmation
• Dual power options: 9 V battery or 9 V DC adapter (adapter not included; also compatible with 18 V for extra headroom)

Technical Specifications

• Effect type: Overdrive / Booster (analog)
• True bypass: Yes
• Power: 9 V (battery or DC adapter, 9–18 V compatible)
• Weight: 270 g (approx.)
• Dimensions: 110 × 60 × 50 mm
• Input impedance: 500 kΩ
• Output impedance: 10 kΩ
• Inputs: 1 × 1/4" (6.3 mm)
• Outputs: 1 × 1/4" (6.3 mm)
• Manufacturer: Xotic
• Made in: USA
• Intended use: Electric guitar
• Type: Guitar effect (kytarový efekt)

Applications
Use the Soul Driven to add “amp‑like” soul to your tone: tighten clean sounds, push tube amps into natural saturation, or dial in creamy overdrive with enhanced harmonics and midrange cut‑through. Its transparent character and flexible Mid and Bass controls make it ideal for both studio work and live performance, whether you want a transparent boost for solos or a rich, dynamic overdrive that complements your core guitar tone.
