HD OMNI is an all-in-one preamp, I/O, and monitoring interface designed for Pro Tools | HD systems. The HD OMNI gives you 4 x 8 analog I/O along with 8 x 8 digital I/O. It has two digitally controlled, high-quality preamps and state-of-the-art converters.

Avid’s HD Omni provides a compact, a cost-effective solution for home, project, or professional studio.

HD OMNI Features

Analog I/O

• 24-bit analog-to-digital (A/D) and digital-to- analog (D/A) converters, with support for sample rates up to 192 kHz

• 2 high-quality Mic/DI preamps (Channels 1–2)

• 2combinedXLRand1/4-inchTRSfrontpanel inputs for microphone and instrument level input

• 2 XLR back panel microphone inputs

• 2 1/4-inch TRS Send and 2 1/4-inch TRS Re- turn back panel jacks for hardware inserts on channels 1 and 2

• 4 analog TRS line level back panel inputs (Channels 1–4)

HD OMNI provides multiple analog input connections, but only provides up to four channels of simultaneous analog input for Pro Tools.

• Soft Clip and Curv limiting circuits to protect against clipping on analog input

• 8 channels of analog back panel output using a DB-25 breakout cable (sold separately) with variable output gain

• 2 channels of analog back panel output using TRS (Mirrors channels 1–2 or 7–8 on DB-25 connector)

• Front panel stereo 1/4-inch headphone jack

Digital I/O

• 8 channels of AES/EBU output (up to 192 kHz Single Wire) using a DB-25 breakout cable (sold separately)

• 2 channels of AES/EBU XLR input (up to 192 kHz Single Wire)

• 2 channels of S/PDIF RCA input and output (up to 192 kHz)

• 8 channels of ADAT TOSLINK input and out- put

• Support for ADAT S/MUX Optical for sample rates of 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz

• Support for two channels of S/PDIF Optical with sample rates of up to 96 kHz

• Real-time sample rate conversion (SRC) on Digital Inputs 1–2 of either AES/EBU, S/PDIF, or Optical (S/PDIF)

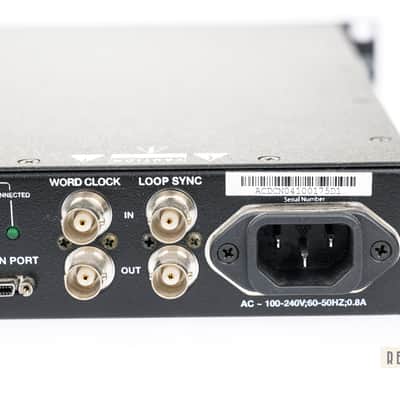

Serial no: #ACDCN04100175D1

Excellent working condition, good visual condition. PSU operates on 120-240V. EU power cord included.

We ship worldwide, feel free to ask for a precise shipping quote.

Price shown in EU includes 24% VAT unless you have entered your valid EU VAT number to your Reverb account. VAT can be deducted if you have a company with a valid EU VAT number or if you're based outside of EU. Non-EU buyer pays any import duties and tax as regulated by their local customs.
